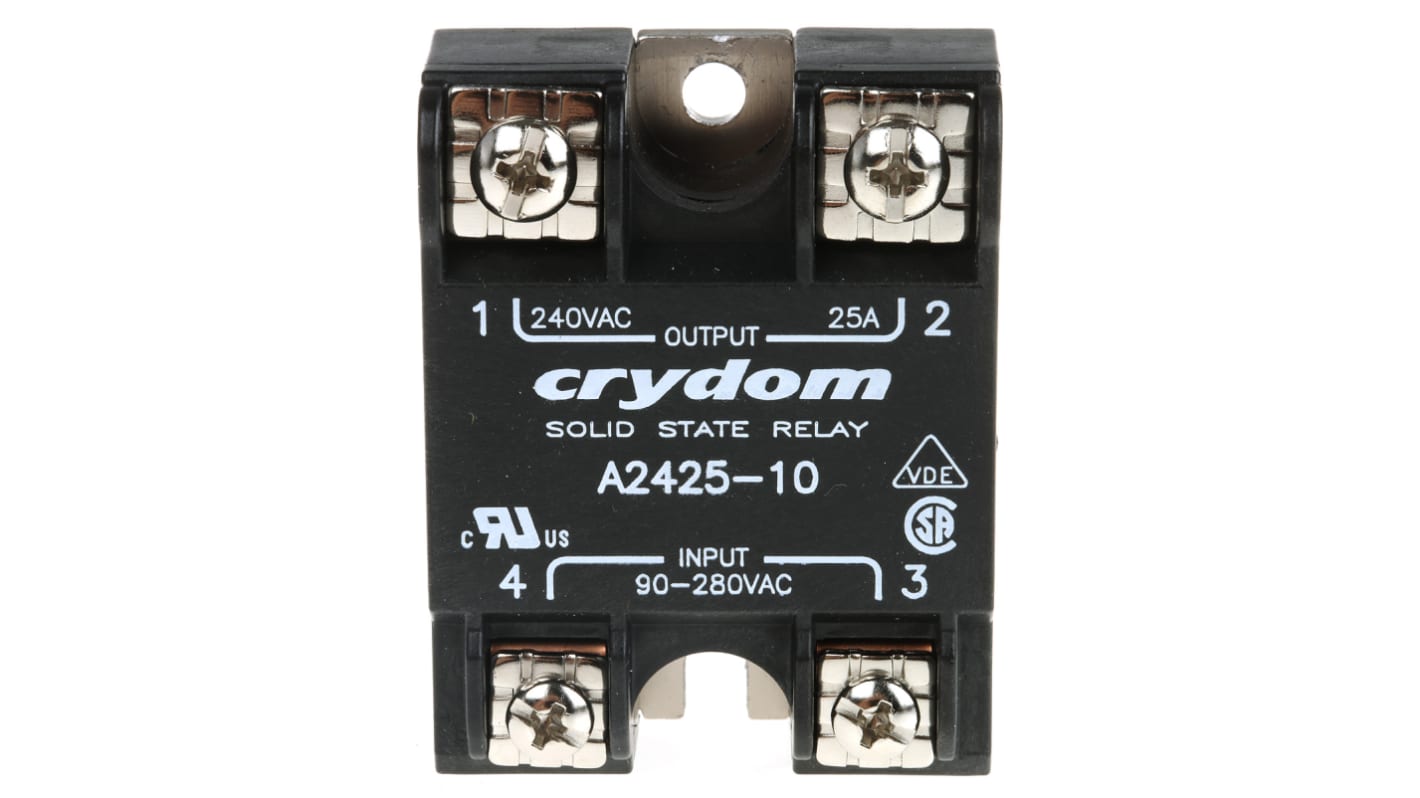

Sensata / Crydom Series 1 240 VAC Series Solid State Relay, 25 A Load, Panel Mount, 280 V rms Load, 280 V ac Control
- RS Stock No.:
- 736-0817
- Mfr. Part No.:
- A2425-10
- Brand:
- Sensata / Crydom
29 In stock - FREE next working day delivery available
Added
Price Each
£48.93
(exc. VAT)
£58.72
(inc. VAT)
Units | Per unit |
1 - 4 | £48.93 |
5 - 9 | £46.48 |
10 - 24 | £44.04 |
25 - 49 | £41.59 |
50 + | £39.14 |
- RS Stock No.:
- 736-0817
- Mfr. Part No.:
- A2425-10
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details
Sensata | Crydom Solid-State Relay, Screw Terminals, 5 to 10mA Input Current Range - Series 1 - A2425-10
Looking for handy hardware control? Kickstart your gear with this Sensata | Crydom solid-state relay. By switching its semiconductors with light-based signals, it quickly opens and closes a circuit to breeze through machine management. Mechanical wear is no issue, as the device works without moving parts for reliable long-term switching. Screw terminals hold the unit's conductors tight to clamp down on disruptive movement. Look for SSRs like this one in applications such as food production and packing equipment.
Features & Benefits
Direct bond copper substrate dissipates heat build-up to minimise the risk of equipment damage
Low input current range of 5 to 10mA for energy-efficient switching
Insulating plastic body to reduce the risk of electrical hazards
Performs reliably at temperatures between -40°C and +80°C for use in harsh environments
Low input current range of 5 to 10mA for energy-efficient switching
Insulating plastic body to reduce the risk of electrical hazards
Performs reliably at temperatures between -40°C and +80°C for use in harsh environments
How do I mount this product?
This relay fixes to a panel using simple screws, so you can mount it in a jiffy.
How can I identify this relay's connections?
This product's labelled front plate clearly identifies its terminals, so it's a cinch to check if you've wired your circuits properly.
Approvals
UL; CSA; VDE
Instantaneous Switching
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specifications
Attribute | Value |
---|---|
Maximum Load Current | 25 A |
Mounting Type | Panel Mount |
Maximum Load Voltage | 280 V rms |
Minimum Load Voltage | 24 V rms |
Minimum Control Voltage | 90 V ac |
Maximum Control Voltage | 280 V ac |
Switching Type | Instantaneous |
Control Voltage Range | 90 → 280 V ac |
Minimum Load Current | 40mA rms |
Contact Configuration | SPST |
Terminal Type | Screw |
Output Device | SCR |
Relay Type | Solid State Relay |
Maximum Turn On Time | 10ms |
Series | Series 1 240 VAC |
Load Voltage Range | 24 → 280Vrms |
Dimensions | 45.7 x 19.8 x 58.4mm |
Height | 58.4mm |
Standards Met | CE, CSA, RoHS Compliant |
Depth | 19.8mm |
Minimum Operating Temperature | -40°C |
Length | 45.7mm |
Maximum Operating Temperature | +80°C |
Operating Temperature Range | -40 → +80°C |
Capacitance | 8pF |
Off State Leakage Current | 10mA rms |
