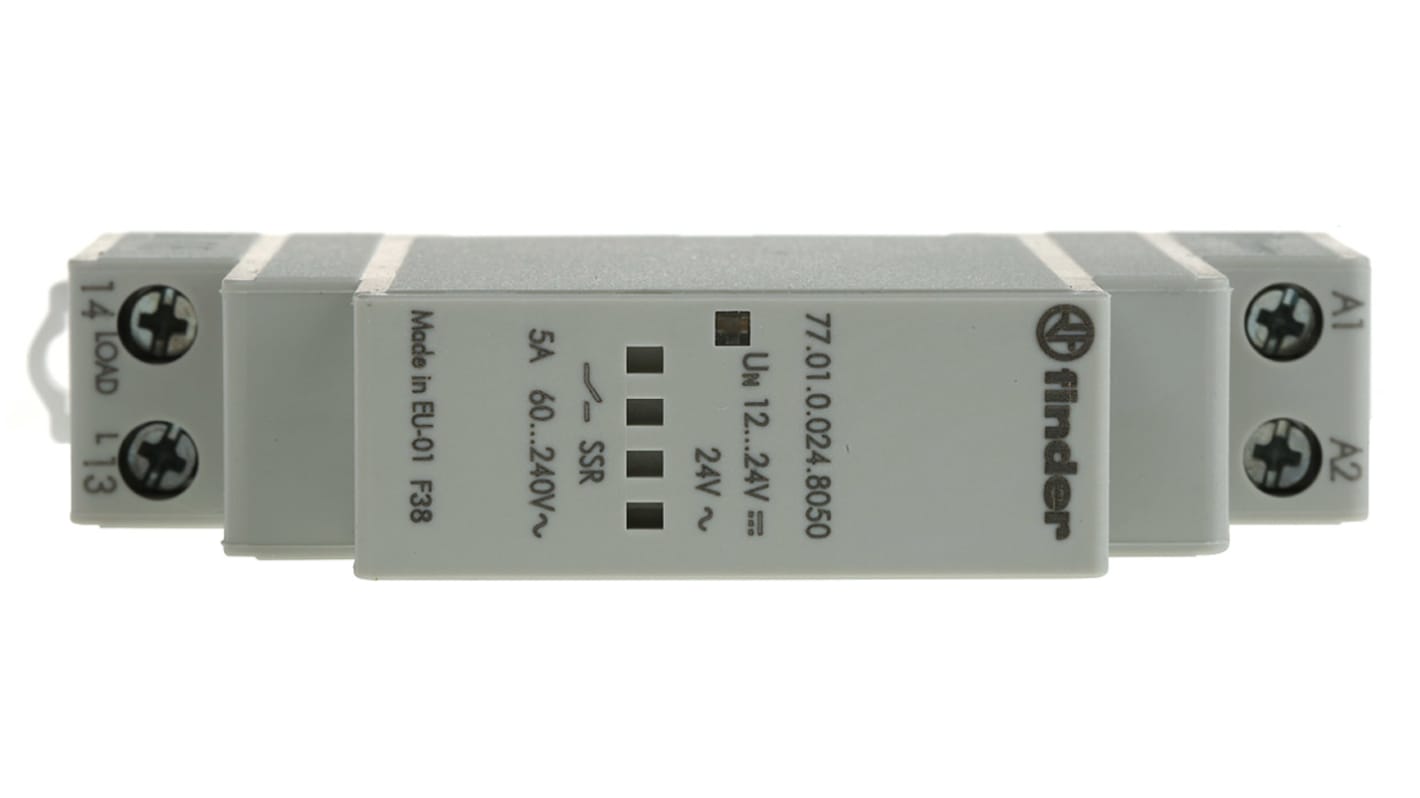

Finder 77 Series Solid State Relay, 5 A Load, DIN Rail Mount, 265 V ac Load, 24 V dc Control
- RS Stock No.:
- 711-4822
- Mfr. Part No.:
- 77.01.0.024.8050
- Brand:
- Finder
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£59.06
(exc. VAT)
£70.87
(inc. VAT)
- RS Stock No.:
- 711-4822
- Mfr. Part No.:
- 77.01.0.024.8050
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Maximum Load Current | 5 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 265 V ac | |
| Minimum Load Voltage | 48 V ac | |
| Minimum Control Voltage | 12 V dc | |
| Maximum Control Voltage | 24 V dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 12 → 24 V dc | |
| Minimum Load Current | 100 mA | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Maximum Turn On Time | 20ms | |
| Series | 77 | |
| Load Voltage Range | 48 → 265V ac | |
| Dimensions | 17.5 x 60.8 x 84mm | |
| Minimum Operating Temperature | -20°C | |
| Operating Temperature Range | -20 → +70°C | |
| Off State Leakage Current | 3.5 mA | |
| Height | 84mm | |
| Depth | 60.8mm | |
| Length | 17.5mm | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Finder | ||
Maximum Load Current 5 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 265 V ac | ||
Minimum Load Voltage 48 V ac | ||
Minimum Control Voltage 12 V dc | ||
Maximum Control Voltage 24 V dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 12 → 24 V dc | ||
Minimum Load Current 100 mA | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Maximum Turn On Time 20ms | ||
Series 77 | ||
Load Voltage Range 48 → 265V ac | ||
Dimensions 17.5 x 60.8 x 84mm | ||
Minimum Operating Temperature -20°C | ||
Operating Temperature Range -20 → +70°C | ||
Off State Leakage Current 3.5 mA | ||
Height 84mm | ||
Depth 60.8mm | ||
Length 17.5mm | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- IT
Solid State Relay 5A - 77 Series
High switching speed, high endurance, low control power
Spark and bounce-free switching
Zero Cross versions are for applications such as: Lamp inrush current reduction (CFL - Compact Fluorescent energy-saving Lamps and similar); Heater Control; Solenoid, contactor driver
Random Switch-on versions are for applications such as: Fine Controls involving shorter time (especially motor control); AC supply phase different from AC output phase; 3-phase general purpose
Spark and bounce-free switching
Zero Cross versions are for applications such as: Lamp inrush current reduction (CFL - Compact Fluorescent energy-saving Lamps and similar); Heater Control; Solenoid, contactor driver
Random Switch-on versions are for applications such as: Fine Controls involving shorter time (especially motor control); AC supply phase different from AC output phase; 3-phase general purpose
Approvals
CE
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
