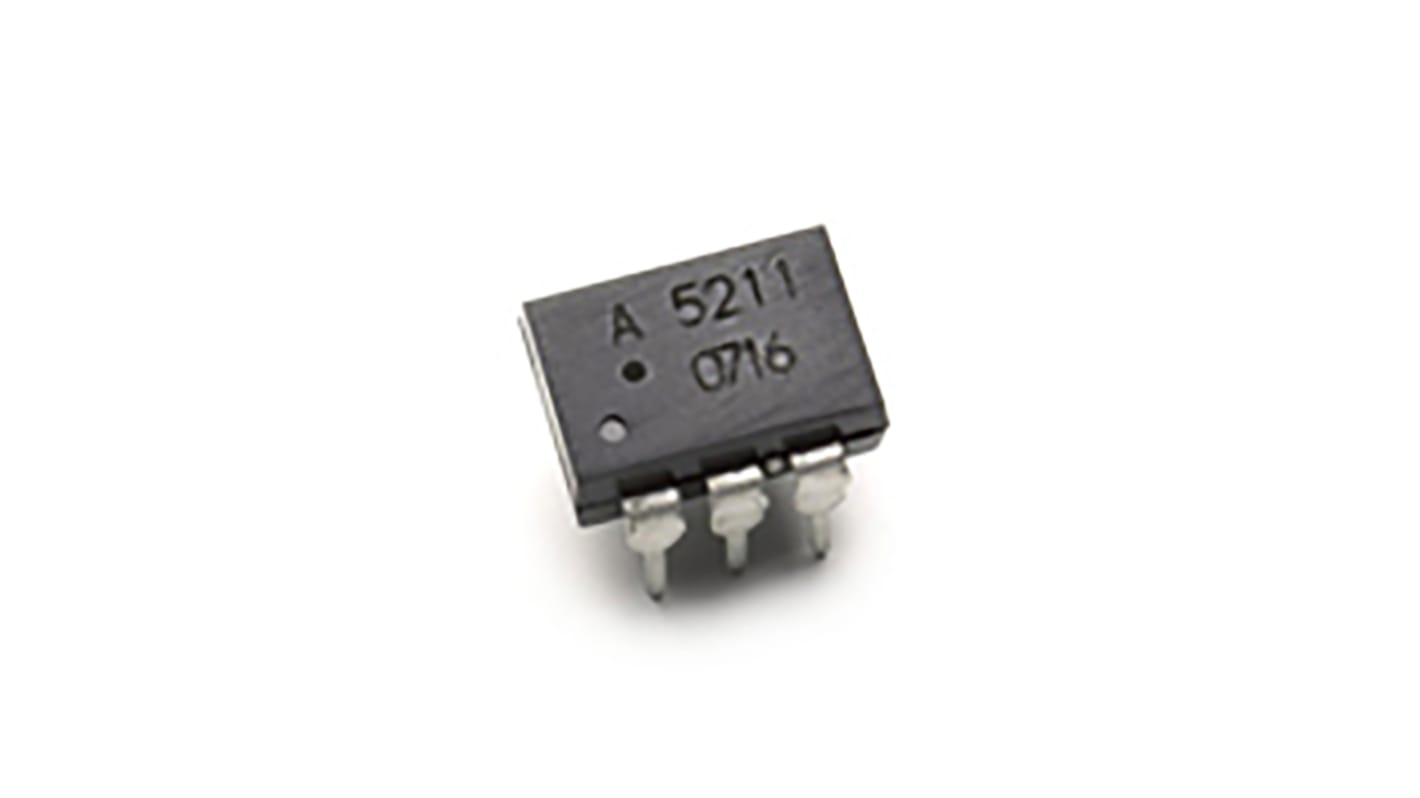

Broadcom Solid State Relay, 0.2 A Load, PCB Mount, 600 V Load, 1.7 V Control
- RS Stock No.:
- 693-6918
- Mfr. Part No.:
- ASSR-5211-001E
- Brand:
- Broadcom
Subtotal (1 unit)*
£3.87
(exc. VAT)
£4.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 51 unit(s) ready to ship
- Plus 914 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £3.87 |
*price indicative
- RS Stock No.:
- 693-6918
- Mfr. Part No.:
- ASSR-5211-001E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Maximum Load Current | 0.2 A | |
Mounting Type | PCB Mount | |
Maximum Load Voltage | 600 V | |
Minimum Load Voltage | 600 V | |
Maximum Control Voltage | 1.7 V | |
Control Voltage Range | 1.1 → 1.7 V | |
Minimum Load Current | 0.2 A | |
Contact Configuration | SPST | |
Output Device | MOSFET | |
Dimensions | 9.9 x 6.6 x 3.68mm | |
Maximum Operating Temperature | +85°C | |
Operating Temperature Range | -40 → +85°C | |
Length | 9.9mm | |
Height | 3.7mm | |
Minimum Operating Temperature | -40°C | |
Depth | 6.6mm | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Maximum Load Current 0.2 A | ||
Mounting Type PCB Mount | ||
Maximum Load Voltage 600 V | ||
Minimum Load Voltage 600 V | ||
Maximum Control Voltage 1.7 V | ||
Control Voltage Range 1.1 → 1.7 V | ||
Minimum Load Current 0.2 A | ||
Contact Configuration SPST | ||
Output Device MOSFET | ||
Dimensions 9.9 x 6.6 x 3.68mm | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
Length 9.9mm | ||
Height 3.7mm | ||
Minimum Operating Temperature -40°C | ||
Depth 6.6mm | ||
High Current, 1 Form A, Solid State Relay (MOSFET) (600V/0.2A/16Ω)
The ASSR-5211 Solid State Relay (SSR) is specifically designed for high current applications, commonly found in the industrial equipments.The relay is a solid-state replacement for single-pole, normally-open, (1 Form A) electromechanical relays.
The ASSR-5211 consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 3mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less.
The ASSR-5211 connection A, as shown in the schematic, allows the relay to switch either ac or dc loads. The connection B, with its advantages of reduced on-resistance and higher output current, allows the relays to switch dc loads only.
The electrical and switching characteristics are specified over the temperature range of -40°C to +85°C.
ASSR-5211, High Current, 1 Form A, Solid State Relay (MOSFET), 600V/0.2A/16Ohm)
Features
- Compact Solid-State Bi-directional Signal Switch
- Single Channel Normally-off
- Single-Pole-Single-Throw (SPST) Relay
- 600V Output Withstand Voltage
- 0.2A or 0.4A Current Rating
- Low On-Resistance: 4Ω Typical for DC-only, 16Ω Typical for AC/DC
- High Speed Switching: 0.7ms (Ton), 0.07ms (Toff) Typical
- High Transient Immunity: >1kV/μs
- High Input-to-Output Insulation Voltage (Safety and Regulatory Approvals)
3750 Vrms for 1 min per UL1577
CSA Component Acceptance
Applications
- Industrial Controls
- Factory Automation
- Data Acquisition
- Measuring Instrument
- Medical System
- Security System
- EMR / Reed Relay Replacement
Optocouplers, Avago Technologies
