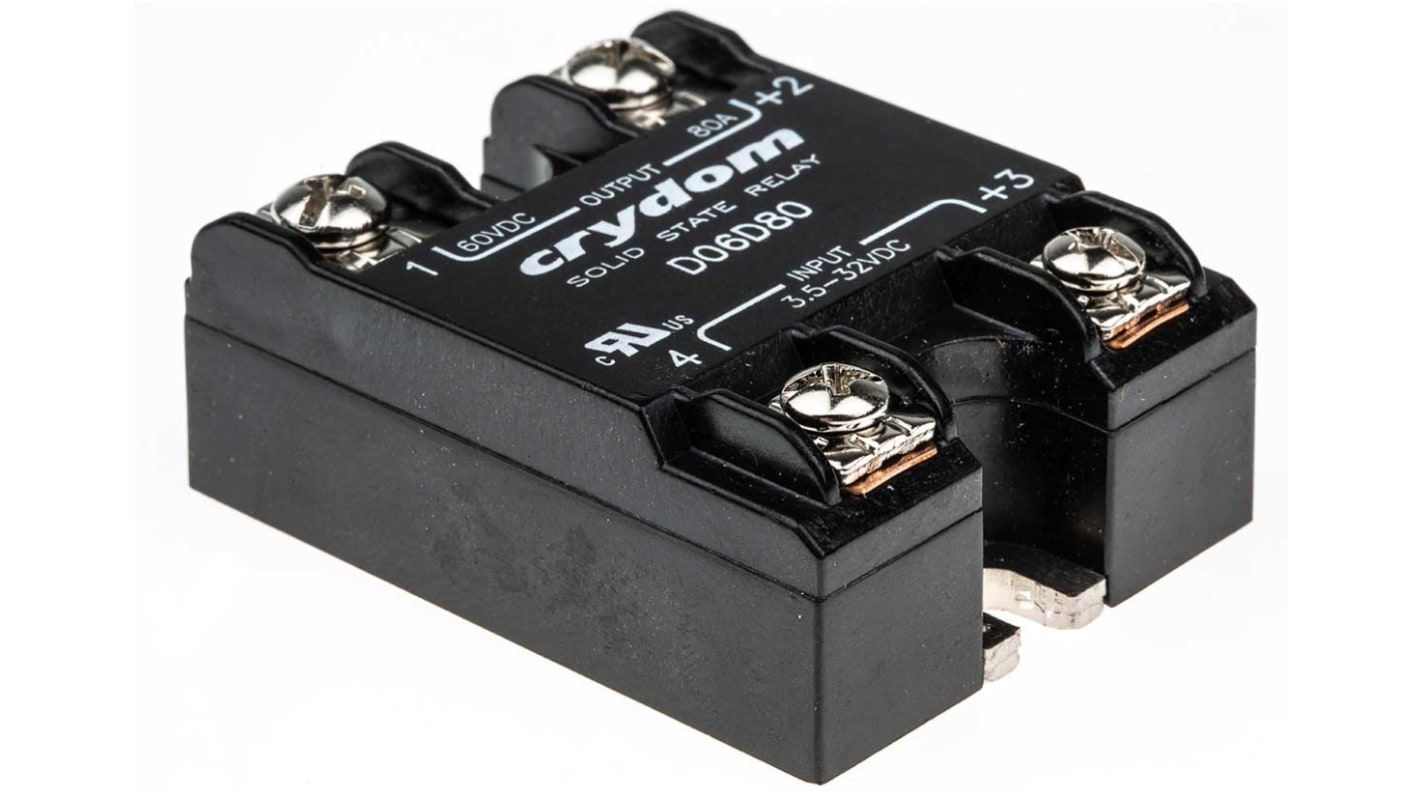

Sensata Crydom D06D Series Solid State Relay, 80 A Load, Surface Mount, 60 V dc Load, 32 V Control

RS Stock No.:: 393-9383
Distrelec Article No.:: 300-49-176
Mfr. Part No.:: D06D80
Brand:: Sensata / Crydom

Sensata Crydom D06D Series Solid State Relay, 80 A Load, Surface Mount, 60 V dc Load, 32 V Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£117.19

(exc. VAT)

£140.63

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

28 unit(s) shipping from 16 December 2025
Plus 10 unit(s) shipping from 03 February 2026
Plus 30 unit(s) shipping from 17 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£117.19
5 - 9	£111.32
10 - 24	£105.46
25 - 49	£99.61
50 +	£93.75

*price indicative

RS Stock No.:: 393-9383
Distrelec Article No.:: 300-49-176
Mfr. Part No.:: D06D80
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	80 A
	Mounting Type	Surface Mount
	Maximum Load Voltage	60 V dc
	Minimum Load Voltage	1 V dc
	Minimum Control Voltage	3.5 V dc
	Maximum Control Voltage	32 V
	Control Voltage Range	3.5 → 32 V dc
	Minimum Load Current	5 mA
	Number of Poles	1
	Terminal Type	Screw
	Output Device	MOSFET
	Relay Type	Solid State Relay
	Load Voltage Range	0 → 60V dc
	Maximum Turn On Time	0.1 ms
	Series	D06D
	Dimensions	58.4 x 45.7 x 22.9mm
	Minimum Operating Temperature	-30°C
	Maximum Operating Temperature	+80°C
	Length	58.4mm
	Height	22.9mm
	Off State Leakage Current	0.1 mArms
	Special Features	DC control, Epoxy Free Design
	Standards Met	CE
	Operating Temperature Range	-30 → +80°C
	Capacitance	8pF
	Depth	45.7mm

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 80 A
	Mounting Type Surface Mount
	Maximum Load Voltage 60 V dc
	Minimum Load Voltage 1 V dc
	Minimum Control Voltage 3.5 V dc
	Maximum Control Voltage 32 V
	Control Voltage Range 3.5 → 32 V dc
	Minimum Load Current 5 mA
	Number of Poles 1
	Terminal Type Screw
	Output Device MOSFET
	Relay Type Solid State Relay
	Load Voltage Range 0 → 60V dc
	Maximum Turn On Time 0.1 ms
	Series D06D
	Dimensions 58.4 x 45.7 x 22.9mm
	Minimum Operating Temperature -30°C
	Maximum Operating Temperature +80°C
	Length 58.4mm
	Height 22.9mm
	Off State Leakage Current 0.1 mArms
	Special Features DC control, Epoxy Free Design
	Standards Met CE
	Operating Temperature Range -30 → +80°C
	Capacitance 8pF
	Depth 45.7mm

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, Aluminium Baseplate, 75.5g Weight - D06D Series - D06D80

Take charge of heavy-duty loads with this solid-state relay from Sensata | Crydom. You can use it to switch your circuits on and off in a flash. The component has no moving parts, which means it's immune to mechanical wear, so it doesn't need regular maintenance. Thanks to its compact dimensions of 57.3 (L) x 44.5 (W) x 22.6mm (D), you'll have no problem fitting this relay into tight spaces. Use it to remotely control lamps in your industrial equipment.

Features & Benefits

• Wide operating temperature range between -40°C and +100°C for use in challenging conditions
• MTBF of over 21 million hours at +40°C for long-term performance
• Screw termination lets you create a secure electrical connection using a simple screwdriver
• Low I/O capacitance of 8pF for high-integrity signals

How do I keep this relay cool during operation?

You should link this unit with a heatsink (703-4552) to prevent overheating and keep it working optimally.

What's the rated load current of this relay?

This SSR has a rated load current of 80A, making it suitable for use in heavy-duty applications.

Approvals

ISO

DC Switching
