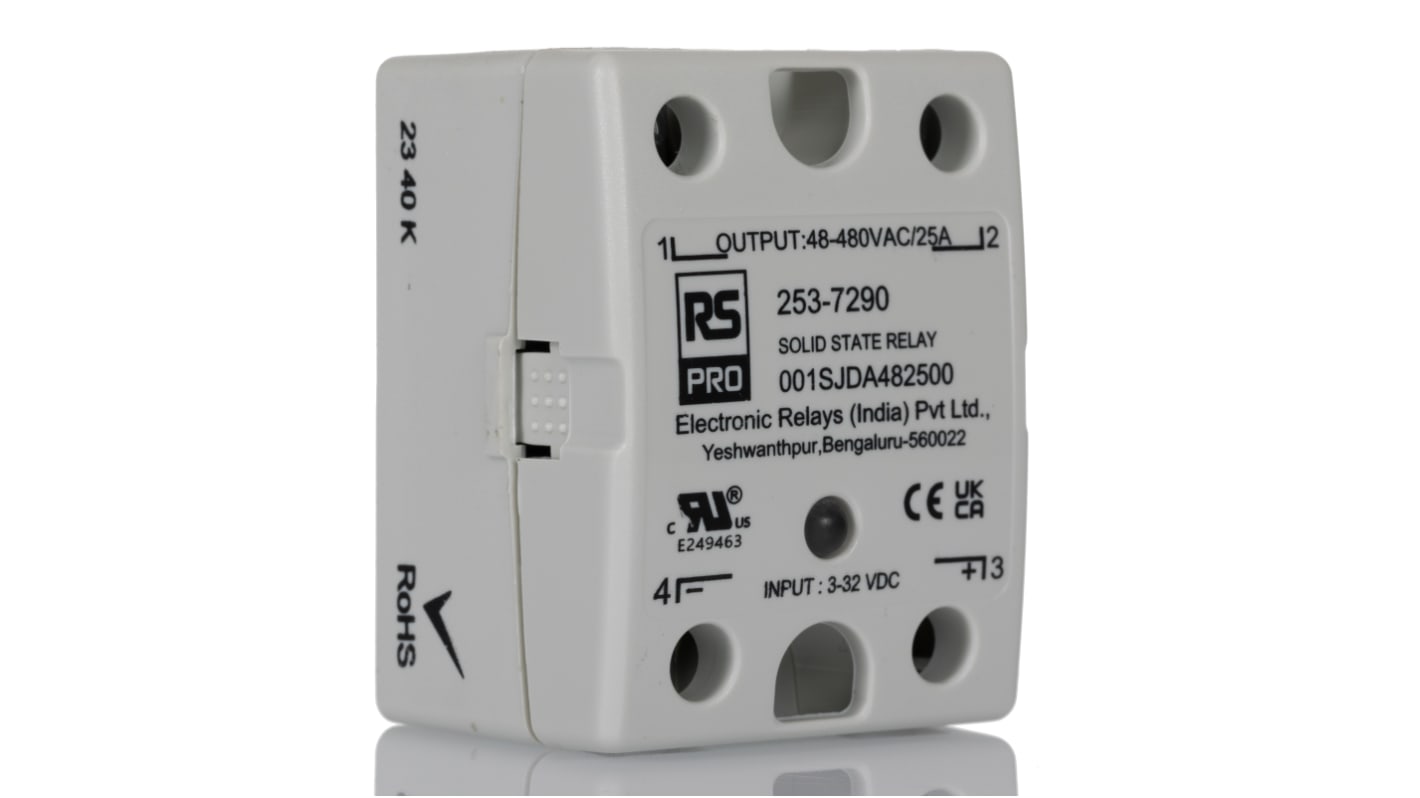

RS PRO Solid State Relay, 25 Amps Load, Panel Mount, Surface Mount, 480 V rms Load, 32 V dc Control
- RS Stock No.:
- 253-7290
- Brand:
- RS PRO
Subtotal (1 unit)*
£28.78
(exc. VAT)
£34.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 86 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
- Plus 10 unit(s) shipping from 14 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £28.78 |
*price indicative
- RS Stock No.:
- 253-7290
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Maximum Load Current | 25 Amps | |
| Mounting Type | Panel Mount, Surface Mount | |
| Maximum Load Voltage | 480 V rms | |
| Minimum Load Voltage | 48 Vrms | |
| Maximum Control Voltage | 32 V dc | |
| Minimum Control Voltage | 3 V dc | |
| Switching Type | Zero Cross | |
| Minimum Load Current | 50 mA rms | |
| Contact Configuration | SPST | |
| Output Device | SCR | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Maximum Load Current 25 Amps | ||
Mounting Type Panel Mount, Surface Mount | ||
Maximum Load Voltage 480 V rms | ||
Minimum Load Voltage 48 Vrms | ||
Maximum Control Voltage 32 V dc | ||
Minimum Control Voltage 3 V dc | ||
Switching Type Zero Cross | ||
Minimum Load Current 50 mA rms | ||
Contact Configuration SPST | ||
Output Device SCR | ||
