Celduc SWT Series Solid State Relay, 28 A Load, DIN Rail Mount, 400 V rms Load, 30 V Control
- RS Stock No.:
- 231-0781
- Mfr. Part No.:
- SWT861730
- Brand:
- Celduc

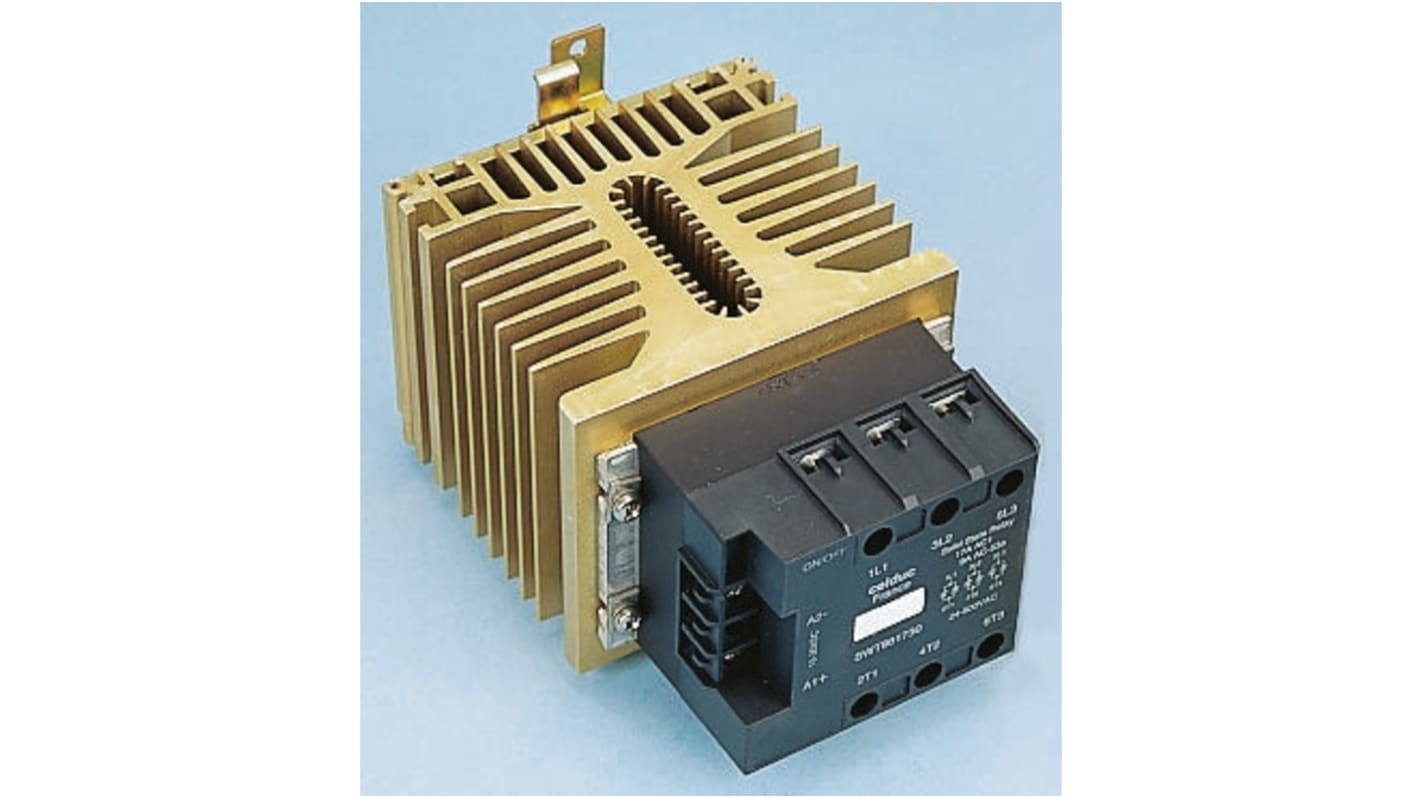

Image representative of range
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£277.61
(exc. VAT)
£333.13
(inc. VAT)
- RS Stock No.:
- 231-0781
- Mfr. Part No.:
- SWT861730
- Brand:
- Celduc
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Celduc | |
| Maximum Load Current | 28 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 400 V rms | |
| Maximum Control Voltage | 30 V | |
| Minimum Control Voltage | 10V ac/dc | |
| Switching Type | Zero Cross | |
| Control Voltage Range | 8.5 → 30 V | |
| Range | SWT Ready to use | |
| Minimum Load Current | 5 mA | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Output Device | Triac | |
| Relay Type | Three Phase Solid State Contactor | |
| Load Voltage Range | 24 → 520V ac | |
| Series | SWT | |
| Maximum Turn On Time | 10ms | |
| Dimensions | 110 x 100 x 177mm | |
| Minimum Operating Temperature | -40°C | |
| Standards Met | CE | |
| Operating Temperature Range | -40 → +100°C | |
| Depth | 100mm | |
| Height | 177mm | |
| Length | 110mm | |
| Maximum Operating Temperature | +100°C | |
| Select all | ||
|---|---|---|
Brand Celduc | ||
Maximum Load Current 28 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 400 V rms | ||
Maximum Control Voltage 30 V | ||
Minimum Control Voltage 10V ac/dc | ||
Switching Type Zero Cross | ||
Control Voltage Range 8.5 → 30 V | ||
Range SWT Ready to use | ||
Minimum Load Current 5 mA | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Output Device Triac | ||
Relay Type Three Phase Solid State Contactor | ||
Load Voltage Range 24 → 520V ac | ||
Series SWT | ||
Maximum Turn On Time 10ms | ||
Dimensions 110 x 100 x 177mm | ||
Minimum Operating Temperature -40°C | ||
Standards Met CE | ||
Operating Temperature Range -40 → +100°C | ||
Depth 100mm | ||
Height 177mm | ||
Length 110mm | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- FR
Three-phase solid state relays with heatsink, SWT series
These relays feature a high level of immunity to outside interference, a very low off-state leakage current and a surge suppressor.
Standards
EN 60947-4-2 and EN 0947-1
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
