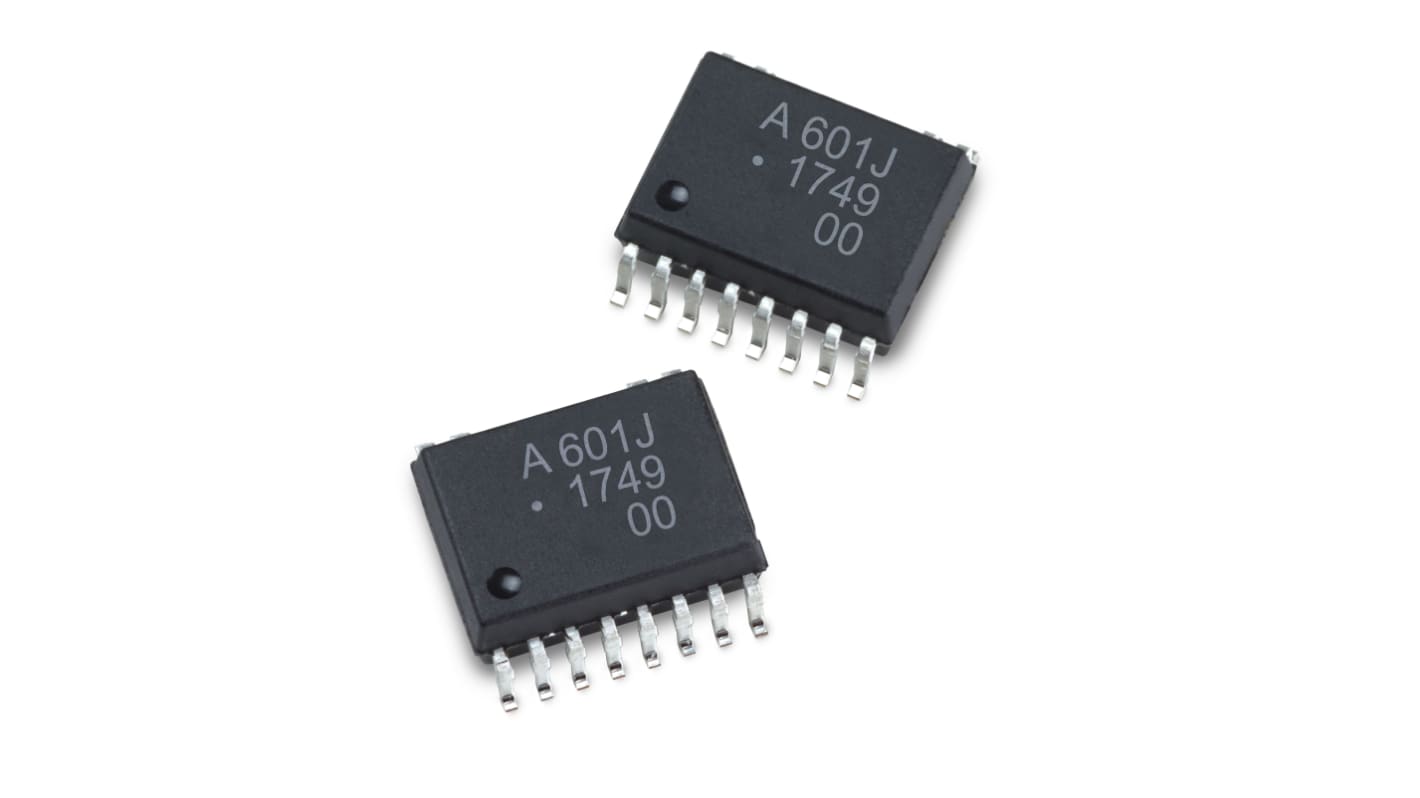

Broadcom ASSR Series Solid State Relay, -10 mA Load, Surface Mount, 1000 V Load, 1.85V Control
- RS Stock No.:
- 230-5347
- Mfr. Part No.:
- ASSR-601J-000E
- Brand:
- Broadcom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 45 units)*
£188.10
(exc. VAT)
£225.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 45 - 90 | £4.18 | £188.10 |
| 135 - 225 | £3.666 | £164.97 |
| 270 - 495 | £3.465 | £155.93 |
| 540 - 990 | £3.152 | £141.84 |
| 1035 + | £2.855 | £128.48 |
*price indicative
- RS Stock No.:
- 230-5347
- Mfr. Part No.:
- ASSR-601J-000E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Maximum Load Current | -10mA | |
| Product Type | Solid State Relay | |
| Mount Type | Surface | |
| Maximum Load Voltage | 1000V | |
| Minimum Load Voltage | 0V | |
| Maximum Control Voltage | 1.85V | |
| Minimum Control Voltage | 1.25V | |
| Series | ASSR | |
| Contact Configuration | SPST-NO | |
| On State Resistance | 250Ω | |
| Minimum Operating Temperature | -40°C | |
| Switching Function | AC Switching | |
| Maximum Operating Temperature | 110°C | |
| Height | 3.5mm | |
| Width | 7.5mm | |
| Standards/Approvals | IEC, RoHS, CSA | |
| Length | 10.4mm | |
| Off State Leakage Current | 1mA | |
| Output Type | MOSFET | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Maximum Load Current -10mA | ||
Product Type Solid State Relay | ||
Mount Type Surface | ||
Maximum Load Voltage 1000V | ||
Minimum Load Voltage 0V | ||
Maximum Control Voltage 1.85V | ||
Minimum Control Voltage 1.25V | ||
Series ASSR | ||
Contact Configuration SPST-NO | ||
On State Resistance 250Ω | ||
Minimum Operating Temperature -40°C | ||
Switching Function AC Switching | ||
Maximum Operating Temperature 110°C | ||
Height 3.5mm | ||
Width 7.5mm | ||
Standards/Approvals IEC, RoHS, CSA | ||
Length 10.4mm | ||
Off State Leakage Current 1mA | ||
Output Type MOSFET | ||
- COO (Country of Origin):
- TH
The Broadcom ASSR series is a high-voltage solid state relay that is designed for high voltage industrial applications. It consists of an AlGaAs infrared light-emitting diode input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high-voltage MOSFETs.
Compact solid-state bidirectional signal switch
Operating temperature range from -40°C to +110°C
Creepage and clearance ≥ 8 mm
