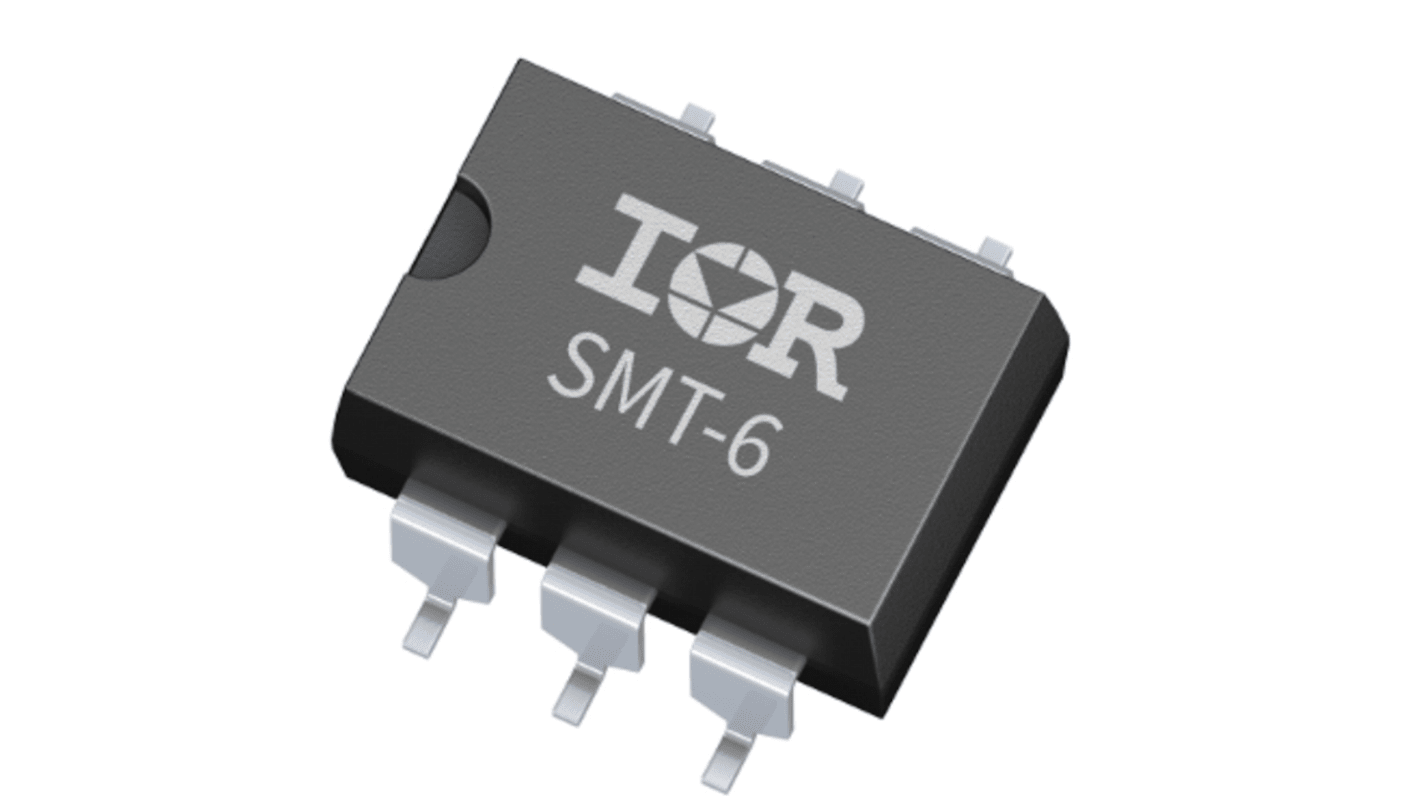

Infineon PVT412 Series Solid State Relay, 210 A Load, PCB Mount, 400 V Load
- RS Stock No.:
- 218-6326
- Mfr. Part No.:
- PVT412S-TPBF
- Brand:
- Infineon
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 218-6326
- Mfr. Part No.:
- PVT412S-TPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 210A | |
| Mount Type | PCB | |
| Maximum Load Voltage | 400V | |
| Minimum Load Voltage | 0V | |
| Series | PVT412 | |
| Terminal Type | Through Hole | |
| Contact Configuration | SPST | |
| On State Resistance | 27Ω | |
| Switching Function | AC/DC Switching | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Package Type | DIP-6 | |
| Standards/Approvals | FCC Part 68 | |
| Output Type | MOSFET | |
| Capacitance | 12pF | |
| Off State Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type Solid State Relay | ||
Maximum Load Current 210A | ||
Mount Type PCB | ||
Maximum Load Voltage 400V | ||
Minimum Load Voltage 0V | ||
Series PVT412 | ||
Terminal Type Through Hole | ||
Contact Configuration SPST | ||
On State Resistance 27Ω | ||
Switching Function AC/DC Switching | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Package Type DIP-6 | ||
Standards/Approvals FCC Part 68 | ||
Output Type MOSFET | ||
Capacitance 12pF | ||
Off State Leakage Current 1μA | ||
The Infineon photovoltaic relay single-pole, normally open solid-state relay that can replace electromechanical relays in many applications. It is mainly used in ring relay, dial out relay and general switching.
Solid state reliability
Load current limiting
