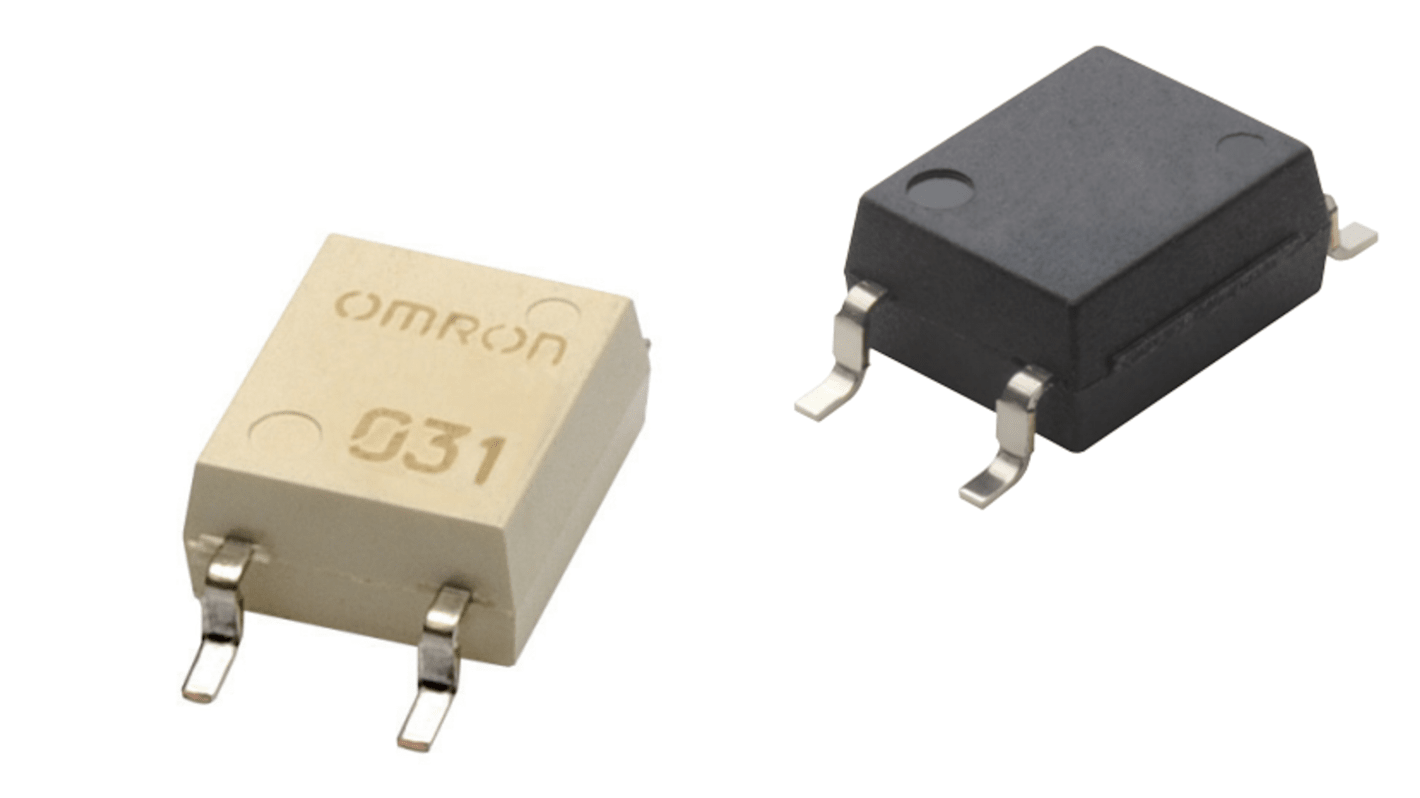

Omron G3VM Series Solid State Relay, 1400 mA Load, Surface Mount, 60 V Load
- RS Stock No.:
- 183-7480
- Mfr. Part No.:
- G3VM-61VR
- Brand:
- Omron
Available to back order for despatch 20/01/2025
Added
Price Each (In a Pack of 125)
£3.002
(exc. VAT)
£3.602
(inc. VAT)
| Units | Per unit | Per Pack* |
| 125 + | £3.002 | £375.25 |
| *price indicative | ||
- RS Stock No.:
- 183-7480
- Mfr. Part No.:
- G3VM-61VR
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
MOS FET Relays featuring the low ON resistance and high switching capacity as a mechanical relay.
Special SOP4-pin package with Dielectric strength AC 3.75 kV
60-V Relay: Continuous load current of 1.4 A max.
60-V Relay: Continuous load current of 1.4 A max.
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 1400 mA |
| Mounting Type | Surface Mount |
| Maximum Load Voltage | 60 V |
| Number of Poles | 1 |
| Contact Configuration | SPST |
| Terminal Type | PCB Pin |
| Package Style | SOP |
| Series | G3VM |
| Maximum Turn On Time | 3ms |
| Load Voltage Range | 60V |
| Dimensions | 3.7 x 4.55 x 2mm |
| Depth | 4.6mm |
| Minimum Operating Temperature | -40°C |
| Height | 2mm |
| Capacitance | 70pF |
| Length | 3.7mm |
| Special Features | 60-V Relay: Continuous Load Current of 1.4 A Max, Special SOP4-Pin Package with Dielectric Strength AC 3.75 kV |
| Operating Temperature Range | -40 → +110°C |
| Maximum Operating Temperature | +110°C |
| Off State Leakage Current | 1000nA |
