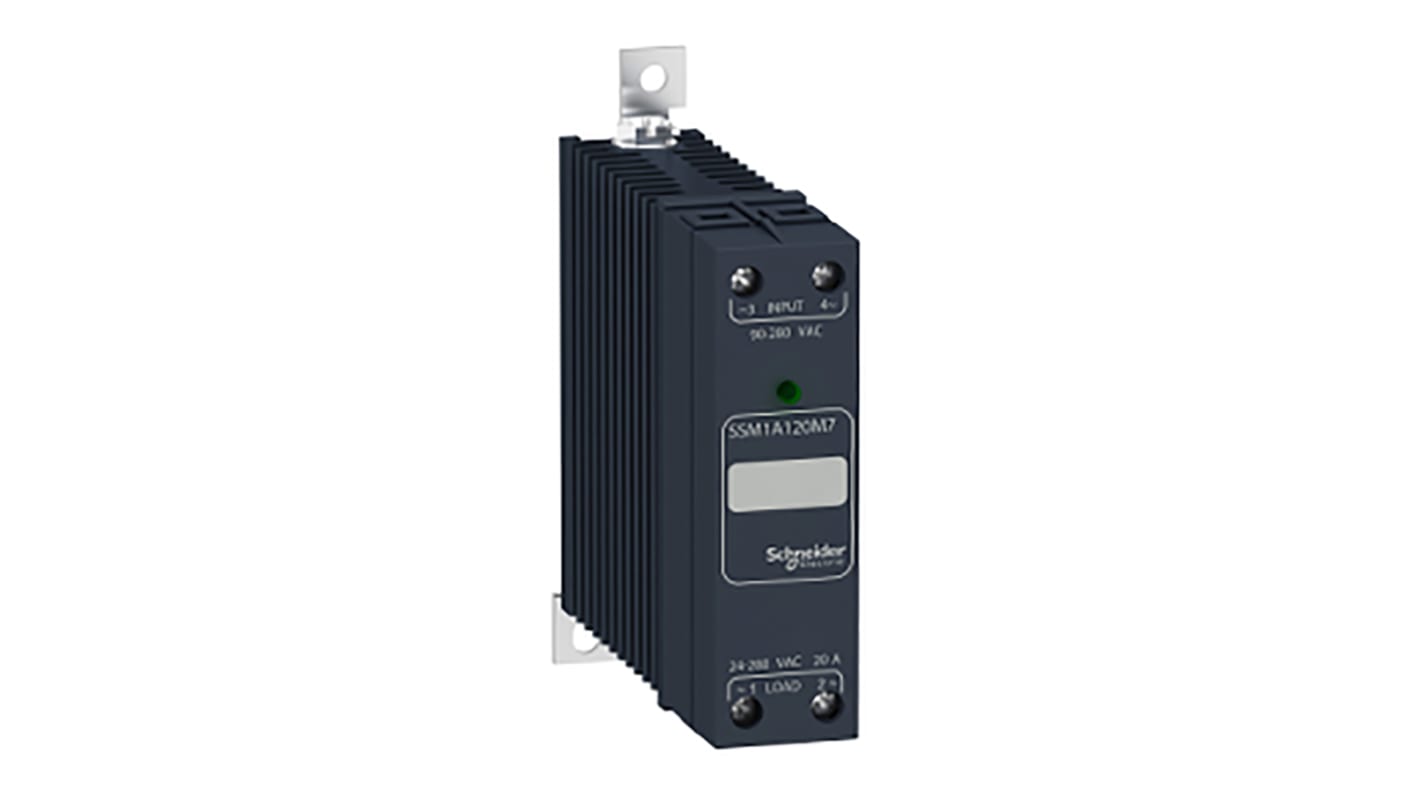

Schneider Electric SSM1 Series Solid State Relay, 20 A Load, DIN Rail Mount, 280 V ac Load, 280 V ac Control
- RS Stock No.:
- 179-9450
- Mfr. Part No.:
- SSM1A120M7
- Brand:
- Schneider Electric
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£71.83
(exc. VAT)
£86.20
(inc. VAT)
- RS Stock No.:
- 179-9450
- Mfr. Part No.:
- SSM1A120M7
- Brand:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Maximum Load Current | 20 A | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 280 V ac | |
| Minimum Load Voltage | 24 V ac | |
| Minimum Control Voltage | 90 V ac | |
| Maximum Control Voltage | 280 V ac | |
| Switching Type | Zero voltage | |
| Control Voltage Range | 90 → 280 V ac | |
| Range | Zelio Relay | |
| Minimum Load Current | 0.15 A | |
| Terminal Type | Screw | |
| Contact Configuration | SPST | |
| Output Device | SCR | |
| Relay Type | Solid State Relay | |
| Maximum Turn On Time | 10ms | |
| Load Voltage Range | 24 → 280V ac | |
| Series | SSM1 | |
| Dimensions | 22.5 x 97.7 x 98.8mm | |
| Depth | 97.7mm | |
| Special Features | Single Phase Relay | |
| Minimum Operating Temperature | -40°C | |
| Height | 98.8mm | |
| Operating Temperature Range | -40 → +80°C | |
| Capacitance | 8pF | |
| Maximum Operating Temperature | +80°C | |
| Off State Leakage Current | 10 mA | |
| Length | 22.5mm | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Maximum Load Current 20 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 280 V ac | ||
Minimum Load Voltage 24 V ac | ||
Minimum Control Voltage 90 V ac | ||
Maximum Control Voltage 280 V ac | ||
Switching Type Zero voltage | ||
Control Voltage Range 90 → 280 V ac | ||
Range Zelio Relay | ||
Minimum Load Current 0.15 A | ||
Terminal Type Screw | ||
Contact Configuration SPST | ||
Output Device SCR | ||
Relay Type Solid State Relay | ||
Maximum Turn On Time 10ms | ||
Load Voltage Range 24 → 280V ac | ||
Series SSM1 | ||
Dimensions 22.5 x 97.7 x 98.8mm | ||
Depth 97.7mm | ||
Special Features Single Phase Relay | ||
Minimum Operating Temperature -40°C | ||
Height 98.8mm | ||
Operating Temperature Range -40 → +80°C | ||
Capacitance 8pF | ||
Maximum Operating Temperature +80°C | ||
Off State Leakage Current 10 mA | ||
Length 22.5mm | ||
- COO (Country of Origin):
- MX
