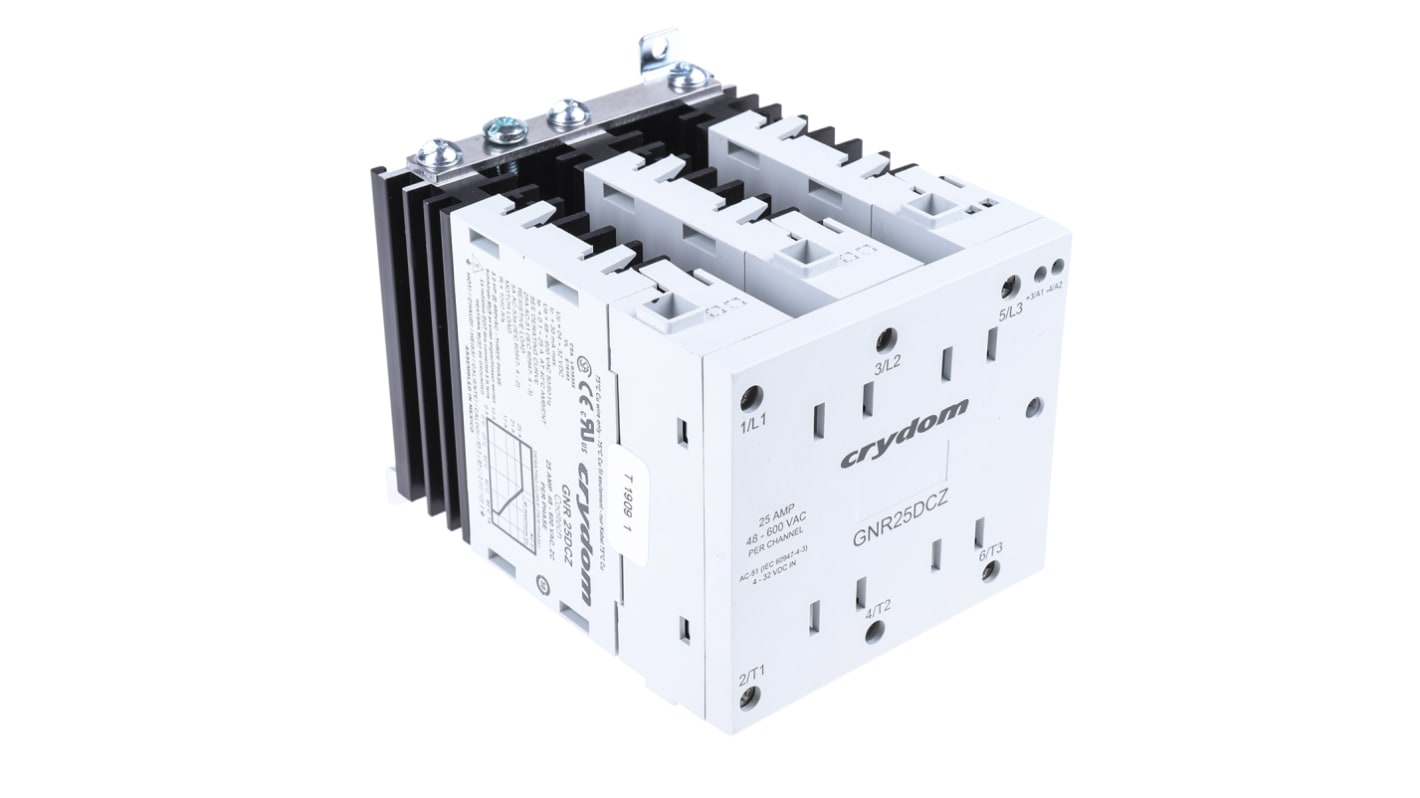

Sensata Crydom GNR 90 Series Solid State Relay, 25 A rms Load, DIN Rail Mount, 600 V rms Load, 32 V dc Control

View all Solid State Relays
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
Sensata Crydom DR67 Series Solid State Relay, 25 A Load, DIN Rail Mount, 600 V ac Load
RS Stock No.
227-0888

Each

£201.73

(exc. VAT)

£242.08

(inc. VAT)

RS Stock No.:
170-7345
Mfr. Part No.:
GNR25DCZ
Brand:
Sensata / Crydom
Find similar products by selecting one or more attributes.
Select all

Brand

Sensata / Crydom

Maximum Load Current

25 A rms

Mounting Type

DIN Rail

Maximum Load Voltage

600 V rms

Minimum Load Voltage

48 V rms

Maximum Control Voltage

32 V dc

Minimum Control Voltage

4 V dc

Switching Type

Zero Cross

Control Voltage Range

4 → 32 V dc

Minimum Load Current

0.1 A rms

Number of Poles

1

Terminal Type

Screw

Output Device

Triac

Relay Type

Solid State Relay

Load Voltage Range

4 → 32V dc

Maximum Turn On Time

1/2ms

Series

GNR 90

Dimensions

90 x 123.4 x 97mm

Height

97mm

Capacitance

8pF

Depth

123.4mm

Maximum Operating Temperature

+80°C

Off State Leakage Current

0.25mArms

Length

90mm

Minimum Operating Temperature

-20°C

Operating Temperature Range

-20 → +80°C

Special Features

Direct Bond Copper (DBC) Substrate, LED Input Status Indicator

Standards Met

CE, CSA, UL

COO (Country of Origin):
MX

Sensata | Crydom Solid-State Relay, 4 to 32V DC Control Voltage Range, 25A Rated Load Current - GNR 90 Series - GNR25DCZ


Need a break from slow switching? This solid-state relay from Sensata | Crydom makes and breaks your circuit without any moving parts, making it a long-lasting and efficient choice. As it controls current loads up to 25A, it's a go-to device for high-power applications. A built-in direct bond copper substrate helps the unit keep its cool during busy work periods. As it comes with overvoltage protection, it won't buckle under the pressure of heavy electrical loads. Look for relays like this one in food production and material handling systems.

Features & Benefits


• Switch-on time of half a cycle for rapid switching
• Front-mounted LED indicator shows input status for quick troubleshooting
• Broad operating temperature range between -20°C and +80°C for use in demanding environments
• Wide operating voltage range of 48 to 600V for versatility
• Housing is self-extinguishing for safety in the event of a fire

How do I mount this product?


This relay is designed for mounting on a DIN rail or a panel, so you can incorporate it into your existing setup with ease.
