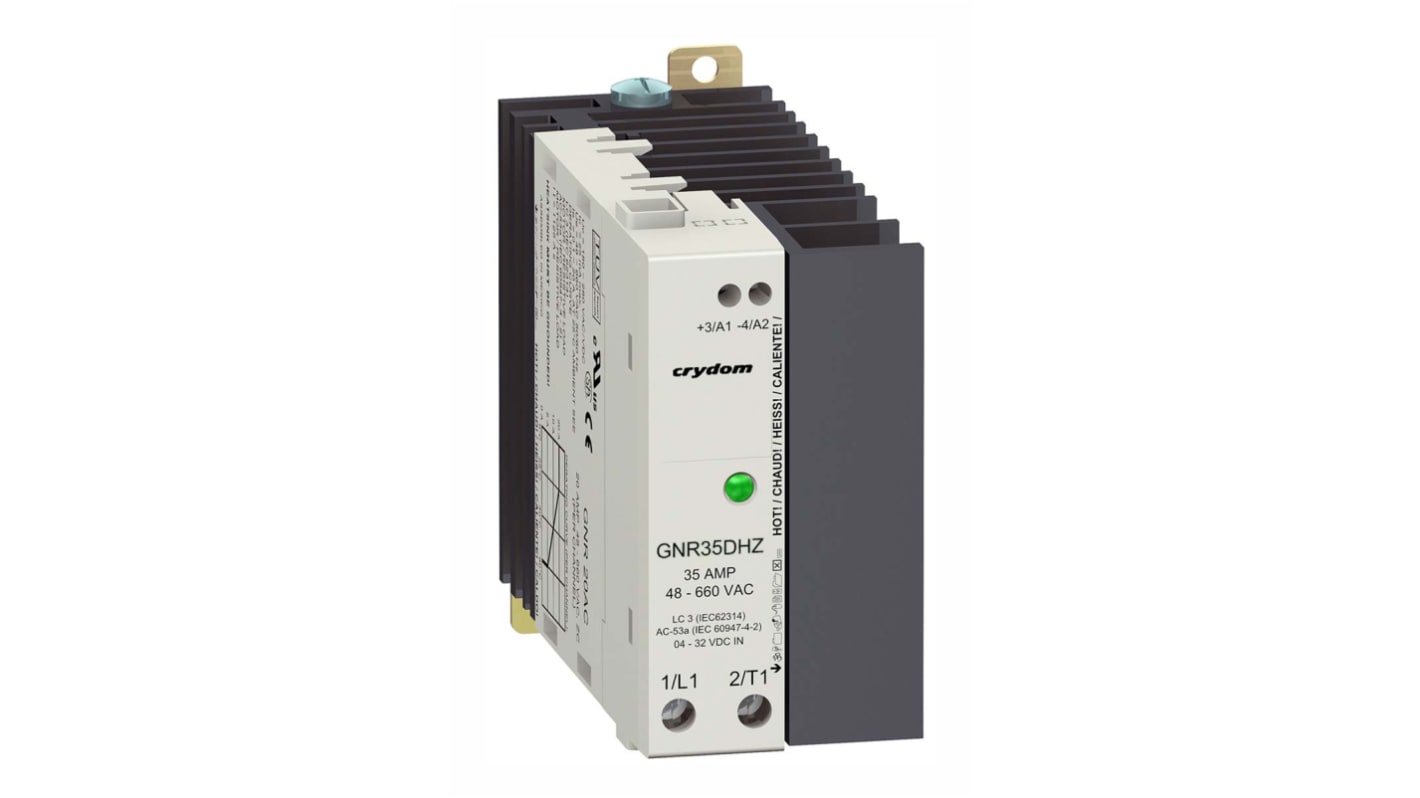

Sensata / Crydom 35 Arms Solid State Relay, Zero Crossing, DIN Rail, 600 Vrms Maximum Load

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MX
Product Details

Crydom GNR 45mm Series Solid State Relays

Crydom GNR 45 mm series robust and versatile general purpose AC and DC panel mount solid state relays. These powerful single phase SSRs have superior thermal performance thanks to the use of DBC technology. The GN series solid state relays feature anti-rotation barriers, flexible control voltage options, LED input status indicator, overvoltage protection (on all AC output relays), and a wide range of power ratings.

Features and Benefits

Direct Bond Copper (DBC) Substrate LED input status indicator
UL 508 Endurance rating for enhanced reliability
UL/CSA Approved, CE Compliant
Built-in overvoltage protection
DIN Rail or Panel Mount
Zero voltage or instantaneous turn-on output

Crydom Solid State Relay and Accessories

Specifications
Attribute Value
Minimum Load Current 0.1 A rms
Maximum Load Current 35 Arms
Series GNR
Mounting Type DIN Rail
Minimum Load Voltage 48 Vrms
Maximum Load Voltage 600 Vrms
Minimum Control Voltage 4 V dc
Maximum Control Voltage 32 V dc
Switching Type Zero Crossing
Terminal Type Screw
Maximum Turn On Time 1/2 cycles
Dimensions 123.4 x 120.7 x 88.1mm
Off State Leakage Current 0.25 mArms
Length 123.4mm
Control Voltage Range 4 32 V dc
Operating Temperature Range -20 +80°C
Load Voltage Range 48 600Vrms
Maximum Operating Temperature +80°C
Capacitance 8pF
Height 88.1mm
Minimum Operating Temperature -20°C
Number of Poles 1
Relay Type Solid State Relay
Depth 120.7mm
Special Features Built-In Overvoltage Protection, Direct Bond Copper Substrate, LED Input Status Indicator
Standards Met CE, CSA, UL
17 In stock for FREE next working day delivery
Price Each
£ 74.76
(exc. VAT)
£ 89.71
(inc. VAT)
Units
Per unit
1 +
£74.76
