Vishay VORA101 Series Solid State Relay, 100 mA Load, Surface Mount, 100 V ac/dc Load, 3750Vrms Control
- RS Stock No.:
- 277-490
- Mfr. Part No.:
- VORA1010M4T
- Brand:
- Vishay
Subtotal (1 reel of 2000 units)*
£1,968.63
(exc. VAT)
£2,362.36
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,968.63 | £0.984 |
*price indicative
- RS Stock No.:
- 277-490
- Mfr. Part No.:
- VORA1010M4T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Maximum Load Current | 100mA | |
| Product Type | Solid State Relay | |
| Mount Type | Surface | |
| Maximum Load Voltage | 100V ac/dc | |
| Maximum Control Voltage | 3750Vrms | |
| Minimum Control Voltage | 707Vrms | |
| Series | VORA101 | |
| Minimum Operating Temperature | -40°C | |
| On State Resistance | 6Ω | |
| Maximum Operating Temperature | 125°C | |
| Height | 2.12mm | |
| Length | 4.92mm | |
| Standards/Approvals | cUL, VDE, FIMKO, CQC, UL, DIN EN 60747-5-5 | |
| Width | 4.57 mm | |
| Off State Leakage Current | 1μA | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Maximum Load Current 100mA | ||
Product Type Solid State Relay | ||
Mount Type Surface | ||
Maximum Load Voltage 100V ac/dc | ||
Maximum Control Voltage 3750Vrms | ||
Minimum Control Voltage 707Vrms | ||
Series VORA101 | ||
Minimum Operating Temperature -40°C | ||
On State Resistance 6Ω | ||
Maximum Operating Temperature 125°C | ||
Height 2.12mm | ||
Length 4.92mm | ||
Standards/Approvals cUL, VDE, FIMKO, CQC, UL, DIN EN 60747-5-5 | ||
Width 4.57 mm | ||
Off State Leakage Current 1μA | ||
- COO (Country of Origin):
- MY

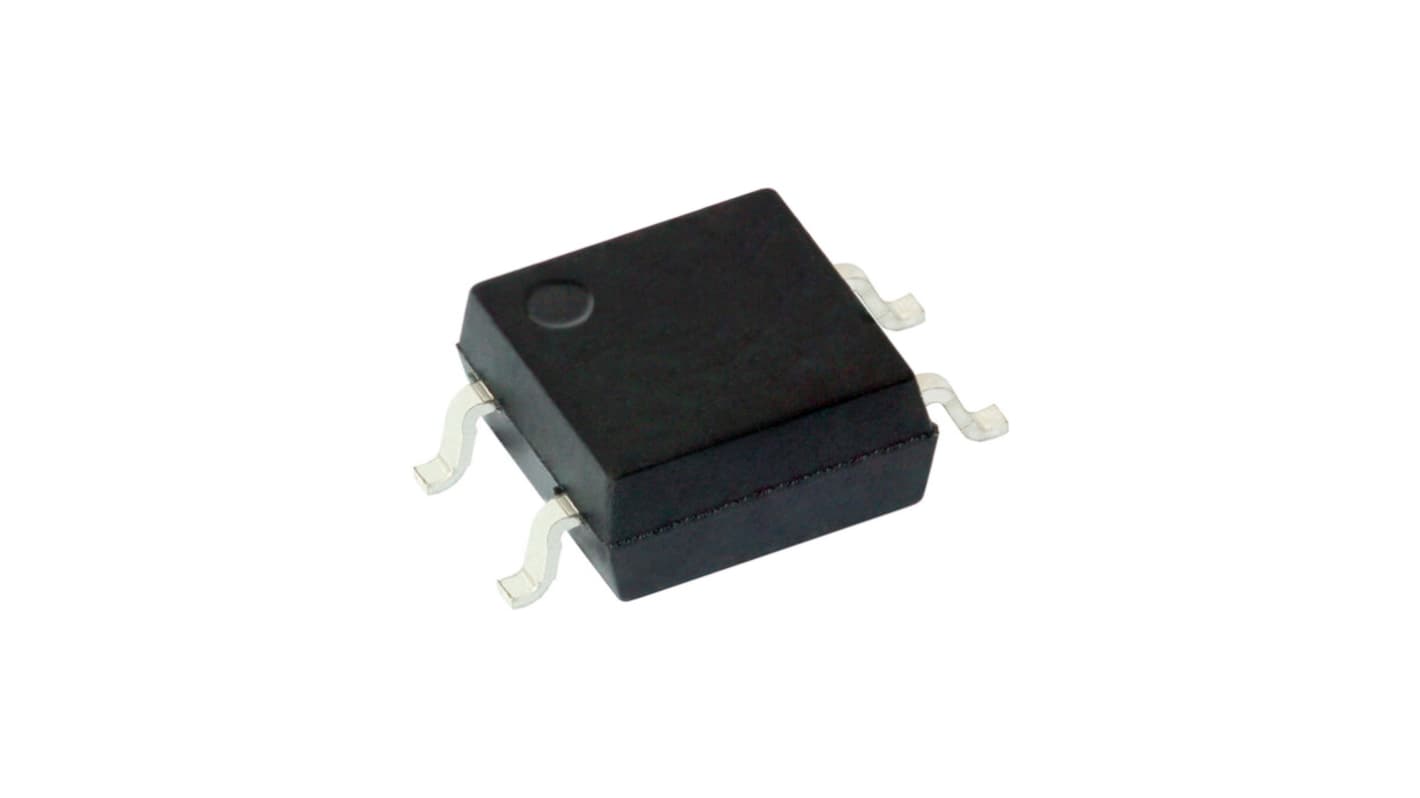

The Vishay Solid State Relay is an optically isolated 1 form A relay in a 4 pin surface mount SOP package, offering reliable switching with electrical isolation. It's Ideal for applications in hybrid or electric vehicles, battery management, security systems, instrumentation, and industrial controls.
AEC Q102 qualified
Load voltage 100 V
Load current 100 mA
Isolation voltage 3750 VRMS
