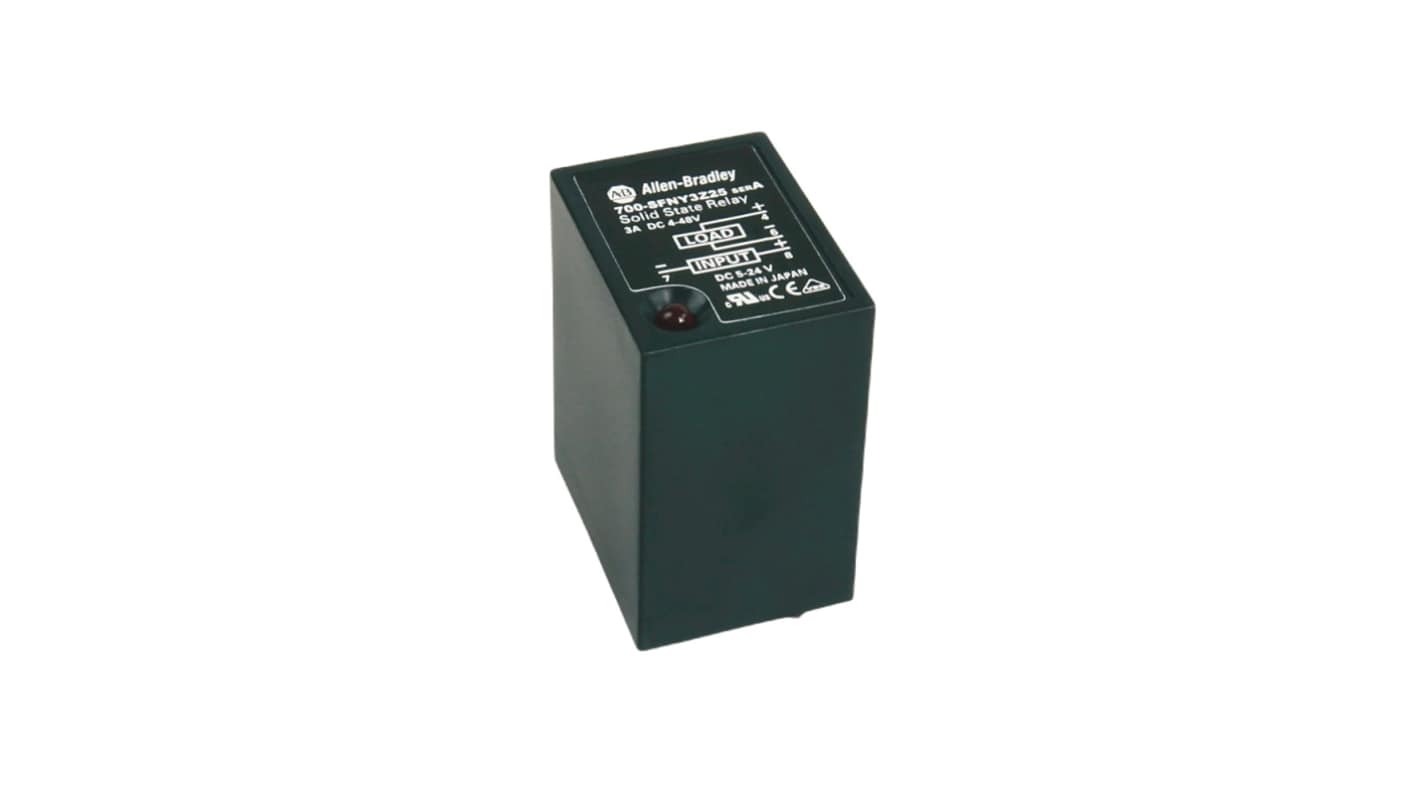

Allen Bradley 700-SFZY Series Solid State Relay, 3 A Load, DIN Rail Mount, 264 V ac/dc Load, 28V ac/dc Control
- RS Stock No.:
- 265-729
- Mfr. Part No.:
- 700-SFZY3Z25
- Brand:
- Allen Bradley
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 265-729
- Mfr. Part No.:
- 700-SFZY3Z25
- Brand:
- Allen Bradley
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Allen Bradley | |
| Product Type | Solid State Relay | |
| Maximum Load Current | 3A | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 264V ac/dc | |
| Minimum Load Voltage | 75V ac/dc | |
| Maximum Control Voltage | 28V ac/dc | |
| Minimum Control Voltage | 4V ac/dc | |
| Series | 700-SFZY | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Width | 42.5 mm | |
| Height | 28mm | |
| Standards/Approvals | UR Certified, cURus Recognised, cULus Listed, CSA certified, CE marked | |
| Length | 21.5mm | |
| Off State Leakage Current | 5mA | |
| Output Type | Relay | |
| Select all | ||
|---|---|---|
Brand Allen Bradley | ||
Product Type Solid State Relay | ||
Maximum Load Current 3A | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 264V ac/dc | ||
Minimum Load Voltage 75V ac/dc | ||
Maximum Control Voltage 28V ac/dc | ||
Minimum Control Voltage 4V ac/dc | ||
Series 700-SFZY | ||
Terminal Type Screw | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Width 42.5 mm | ||
Height 28mm | ||
Standards/Approvals UR Certified, cURus Recognised, cULus Listed, CSA certified, CE marked | ||
Length 21.5mm | ||
Off State Leakage Current 5mA | ||
Output Type Relay | ||
- COO (Country of Origin):
- JP
The Allen Bradley Square Base Relays are versatile relays designed for industrial control applications requiring reliable performance and efficient functionality with robust load current capacity and multiple isolation and monitoring features.
3A max continuous load current
240V AC max load voltage options
5 to 24V DC control or input voltage
Photocoupler isolation option between control and output voltage
LED Indicator for input or logic ON or OFF status monitoring
