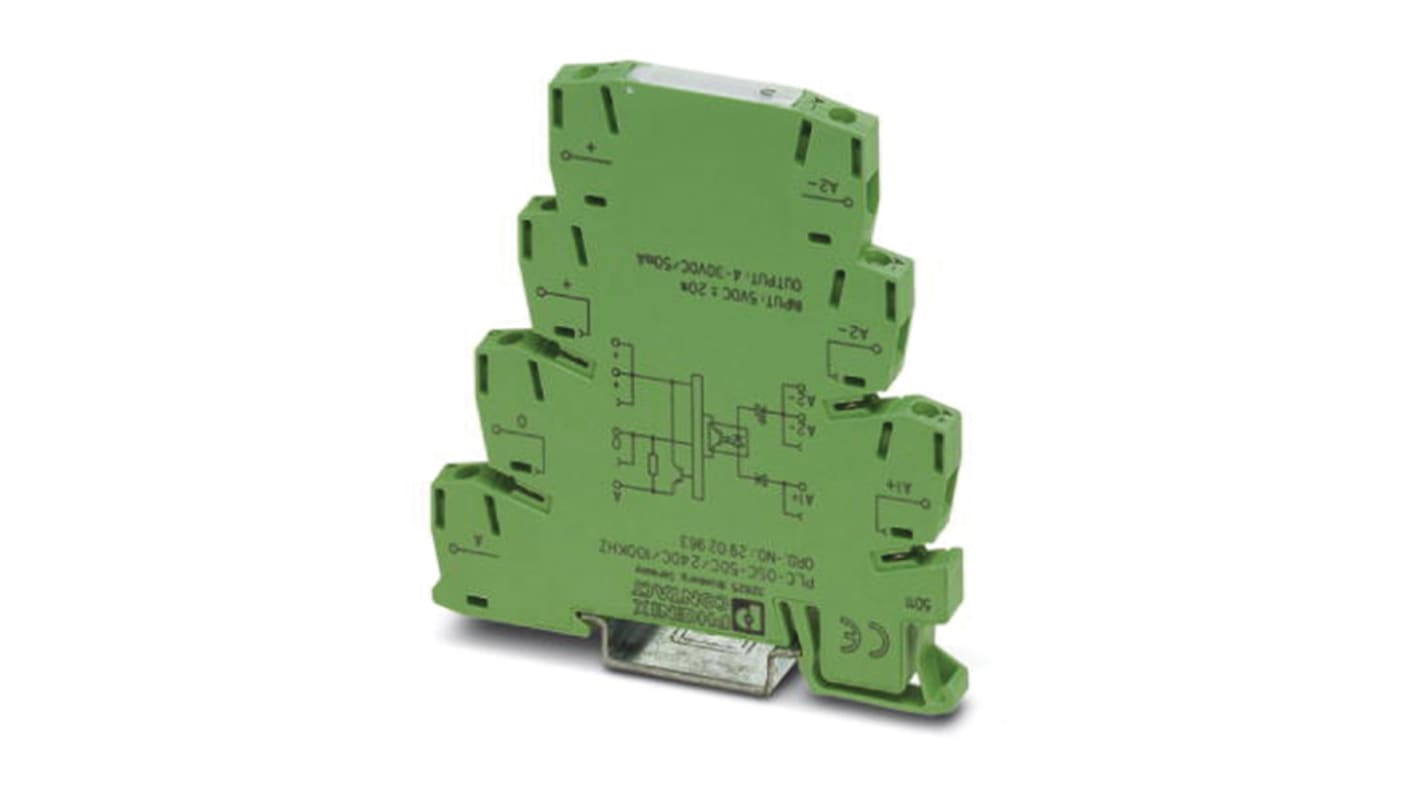

Phoenix Contact PLC-OPT Series Solid State Interface Relay, 6 V dc Control, 50 mA Load, DIN Rail Mount
- RS Stock No.:
- 857-1765
- Mfr. Part No.:
- 2902969
- Brand:
- Phoenix Contact
Stock information currently inaccessible
- RS Stock No.:
- 857-1765
- Mfr. Part No.:
- 2902969
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Maximum Control Voltage | 6 V dc | |
| Maximum Load Current | 50 mA | |
| Mounting Type | DIN Rail | |
| Maximum Load Voltage | 30 V dc | |
| Minimum Control Voltage | 4 V dc | |
| Control Voltage Range | 4 <arrow/> 6 V dc | |
| Switching Type | DC | |
| Contact Configuration | SPST | |
| Load Voltage Range | 4 → 30V dc | |
| Minimum Load Voltage | 4 V dc | |
| Terminal Type | Push In | |
| Input Current | 7mA | |
| Series | PLC-OPT | |
| Height | 80mm | |
| Output Device | PLC | |
| Depth | 86mm | |
| Length | 6.2mm | |
| Minimum Operating Temperature | -20°C | |
| Dimensions | 6.2 x 86 x 80mm | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -20 → +60°C | |
| Manufacturer Part No. | 2902969 | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Maximum Control Voltage 6 V dc | ||
Maximum Load Current 50 mA | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 30 V dc | ||
Minimum Control Voltage 4 V dc | ||
Control Voltage Range 4 <arrow/> 6 V dc | ||
Switching Type DC | ||
Contact Configuration SPST | ||
Load Voltage Range 4 → 30V dc | ||
Minimum Load Voltage 4 V dc | ||
Terminal Type Push In | ||
Input Current 7mA | ||
Series PLC-OPT | ||
Height 80mm | ||
Output Device PLC | ||
Depth 86mm | ||
Length 6.2mm | ||
Minimum Operating Temperature -20°C | ||
Dimensions 6.2 x 86 x 80mm | ||
Maximum Operating Temperature +60°C | ||
Operating Temperature Range -20 → +60°C | ||
Manufacturer Part No. 2902969 | ||
Input solid-state relay, transmission frequency: 100 kHz, with LED and protective circuit in input and output circuits, input: 5 V DC, output: 4 - 30 V DC/50 mA
