Omron G3RV-SR Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

RS Stock No.:: 111-3025
Mfr. Part No.:: G3RV-SR700-D AC/DC24
Brand:: Omron

Omron G3RV-SR Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

Omron G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

RS Stock No.: 271-1899

Each

£39.85

(exc. VAT)

£47.82

(inc. VAT)

RS Stock No.:: 111-3025
Mfr. Part No.:: G3RV-SR700-D AC/DC24
Brand:: Omron

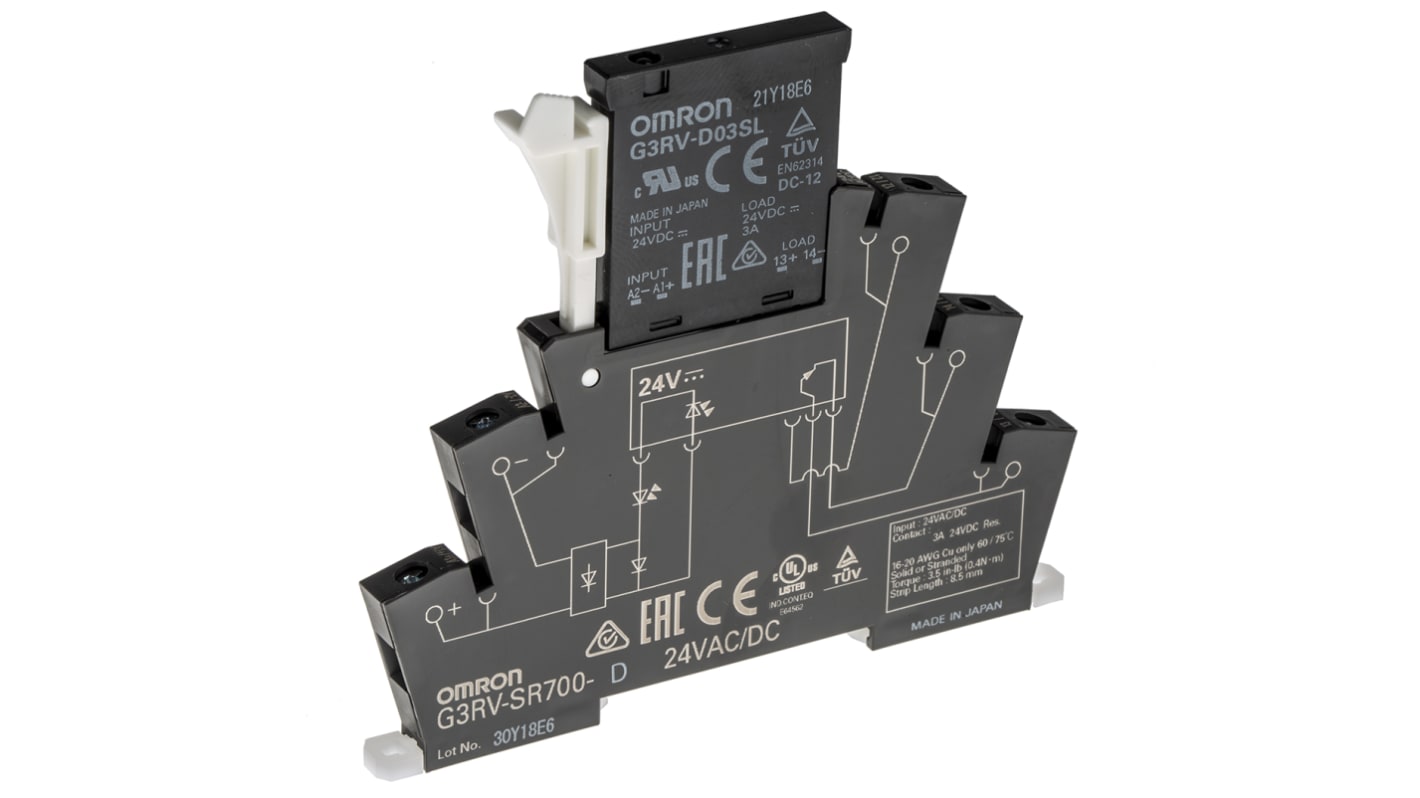

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

G3RV-SR700-D AC/DC24 – I/O Low Profile SSR - Solid State Relay 6.2 mm Wide.

When 1113025 is no longer for sale, please see RS article 2711899 for the updated version in the new range of relays from Omron.
This I/O SSR-Solid state relay has a lower profile up to 25% of other standard SSR allowing further downsizing of the control panel. An optimal slim design relay that includes high frequency and high speed opening and closing of the SSR –solid state relay.

Features and Benefits G3RV-SR700-D AC/DC24 I/O Slim SSR – Solid State Relay.

• Screw terminal.
• 60% Reduced wiring time.
• DC Applicable output load.
• Rated input voltage 24 V ac/dc.
• Slim compact design.
• DC output – MOS FET.
• High frequency.
• High speed opening and closing.
• Easy wiring.

SSR – Solid State Relay Input Rating at ambient 25°C.

• Rated current AC – 5 mA 50 Hz, 5.1 mA 60 Hz.
• Rated Current DC – 4.6 mA.
• Must operate voltage 21.6 V max.
• Must release voltage 1 V min.
• Input voltage ±10% of rated voltage.

SSR – Solid State Relay Output.

• Rated load voltage 5 to 24 V dc.
• Load voltage range 3 to 26.4 V dc.

• Load current 100 μA to 3 A at an ambient 25°C.
• Inrush current resistance 30 A, 60 hZ, 1 cycle.
• Applicable load capacity 72 W, output voltage 24 V dc.

Additional Features of G3RV-SR700-D AC/DC24 SSR – Solid State Relay.

• 6 ms max.
• Release time 60 ms max.
• Output ON resistance 0.3 Ω max at 24 v dc.
• 10 μA max at 24 V dc.
• Vibration resistance – malfunction 10 to 55 to 10 Hz double amplitude.
• Shock resistance 300 m/s².
• Ambient operating temperature -30°C to +55°C.
• Relay weight 38 g.
• IP 20
• Load category DC-12.
• Rated insulation voltage 240 V.

Suitable SSR – Solid State DIN Rails.

• Part number PFP-100N – 1 m DIN relay, Stock number 8278403.
• Part number PFP-50N – 0.5 m DIN relay, Stock number 8278400.

Suitable End Plate for the SSR –Solid State Relay.

• Part number PFP-M, stock number 8278419.

Suitable Spacer Plate for the SSR- Solid State Relay.

• Part number PFP-S, Stock number 8278412.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Standards

UL 508, E64562. CE, TUV.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Maximum Control Voltage	24 V ac/dc
	Maximum Load Current	3 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	26.4 V dc
	Control Voltage Range	Maximum of 24 V ac/dc
	Switching Type	AC/DC
	Contact Configuration	SPST
	Load Voltage Range	3 → 26.4V dc
	Minimum Load Voltage	3 V dc
	Terminal Type	Screw
	Number of Poles	1
	Height	90mm
	Series	G3RV-SR
	Minimum Load Current	100 μA
	Output Device	MOSFET
	Length	6.2mm
	Depth	78mm
	Dimensions	6.2 x 78 x 90mm
	Standards Met	CE, CULus, TUV Certification
	Special Features	High-Speed Opening and Closing SSR, Lower Profile than Conventional Products
	Maximum Turn On Time	6 ms
	Off State Leakage Current	10 μA
	Operating Temperature Range	-30 → +55°C
	Manufacturer Part No.	G3RV-SR700-D AC/DC24

	Select all
	Brand Omron
	Maximum Control Voltage 24 V ac/dc
	Maximum Load Current 3 A
	Mounting Type DIN Rail
	Maximum Load Voltage 26.4 V dc
	Control Voltage Range Maximum of 24 V ac/dc
	Switching Type AC/DC
	Contact Configuration SPST
	Load Voltage Range 3 → 26.4V dc
	Minimum Load Voltage 3 V dc
	Terminal Type Screw
	Number of Poles 1
	Height 90mm
	Series G3RV-SR
	Minimum Load Current 100 μA
	Output Device MOSFET
	Length 6.2mm
	Depth 78mm
	Dimensions 6.2 x 78 x 90mm
	Standards Met CE, CULus, TUV Certification
	Special Features High-Speed Opening and Closing SSR, Lower Profile than Conventional Products
	Maximum Turn On Time 6 ms
	Off State Leakage Current 10 μA
	Operating Temperature Range -30 → +55°C
	Manufacturer Part No. G3RV-SR700-D AC/DC24
