SMC Solenoid Valve VX212AU, 2 port(s) , NC, 110 V ac, 1/8in
- RS Stock No.:
- 840-7112
- Mfr. Part No.:
- VX212AU
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£33.32
(exc. VAT)
£39.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £33.32 |
5 + | £31.99 |
*price indicative
- RS Stock No.:
- 840-7112
- Mfr. Part No.:
- VX212AU
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Supply Voltage | 110 V ac | |
Number of Ports | 2 | |
Connection Size | 1/8in | |
Connection | 1/8 in G Female | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Water | |
Type | 2/2 | |
Orifice Diameter | 2mm | |
Body Material | Brass | |
Series | VX21 | |
Maximum Working Pressure | 10 bar | |
Operating Temperature Range | -20 → +60 °C | |
Connection Gender | Female | |
Maximum Operating Temperature | +60°C | |
Thread Standard or Connection Type | G | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Supply Voltage 110 V ac | ||
Number of Ports 2 | ||
Connection Size 1/8in | ||
Connection 1/8 in G Female | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Water | ||
Type 2/2 | ||
Orifice Diameter 2mm | ||
Body Material Brass | ||
Series VX21 | ||
Maximum Working Pressure 10 bar | ||
Operating Temperature Range -20 → +60 °C | ||
Connection Gender Female | ||
Maximum Operating Temperature +60°C | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- JP

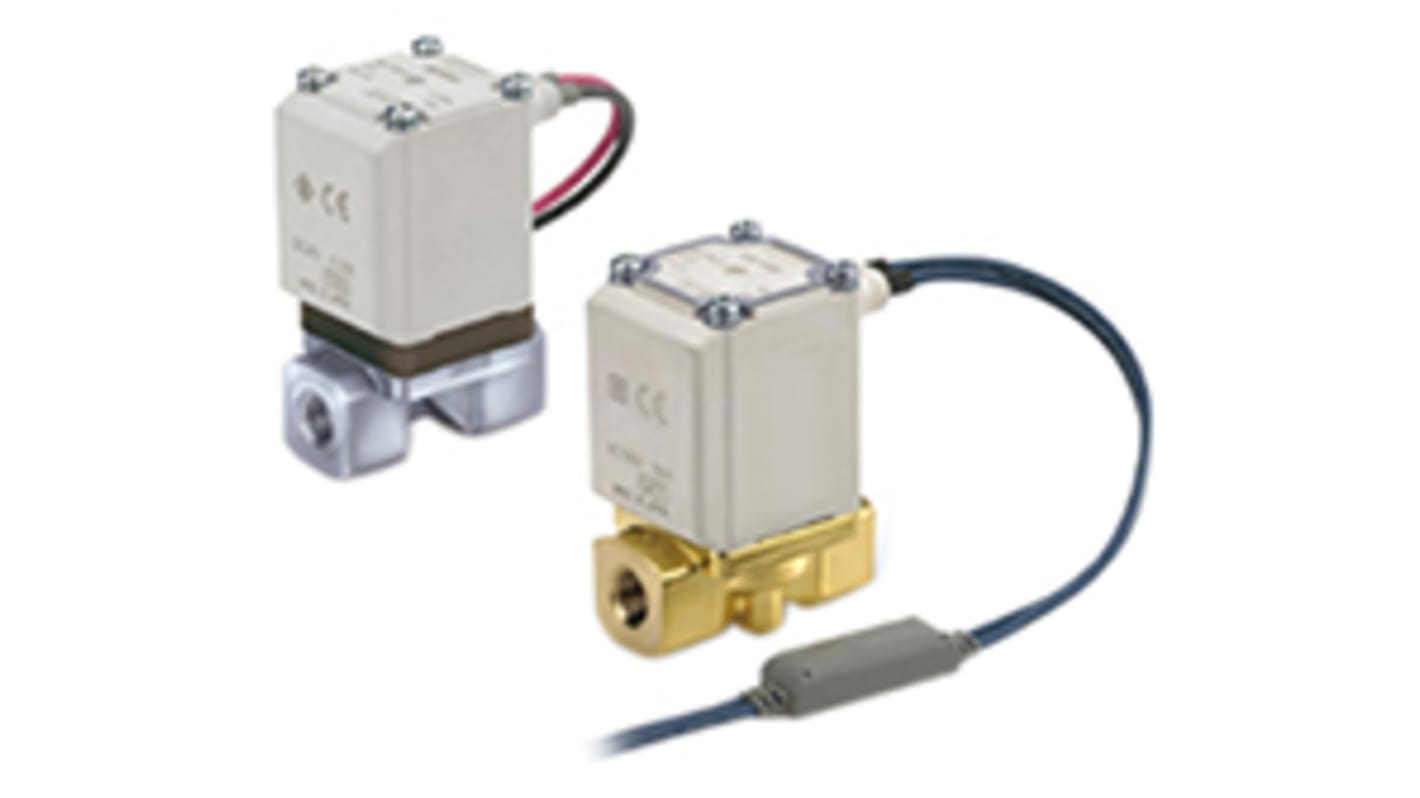

VX21-22-23 Two Port Direct Operating Solenoid Valve
The SMC VX 2 Port Direct Operated Solenoid Valve is suitable for use with air, water, oil and medium vacuum environments. Air models are available with aluminium or resin bodies, while water/oil/medium vacuum models are available with brass or stainless steel bodies.
Benefits over conventional SMC solenoid valve:
Large flow rate (20% more for Size 1* model)
More compact body (Size 1* is 10% smaller)
Light weight (30% lighter: aluminium body, Size 1* model)
Reduced power consumption when compared with SMC conventional model
More compact body (Size 1* is 10% smaller)
Light weight (30% lighter: aluminium body, Size 1* model)
Reduced power consumption when compared with SMC conventional model
Built-in Full Wave Rectifier (for AC models)
The SMC AC solenoid valve models offer an improved OFF RESPONSE, LOW NOISE construction, IMPROVED DURABILITY, REDUCED BUZZ noise and an overall REDUCTION in APPARENT POWER.
The VX solenoid valve is suitable for use within environments from -10 to +60°C
Note
*Size 1 solenoid valve models are denoted by SMC part number commencing "VX214"; Size 2: "VX224"; Size 3: VX234
