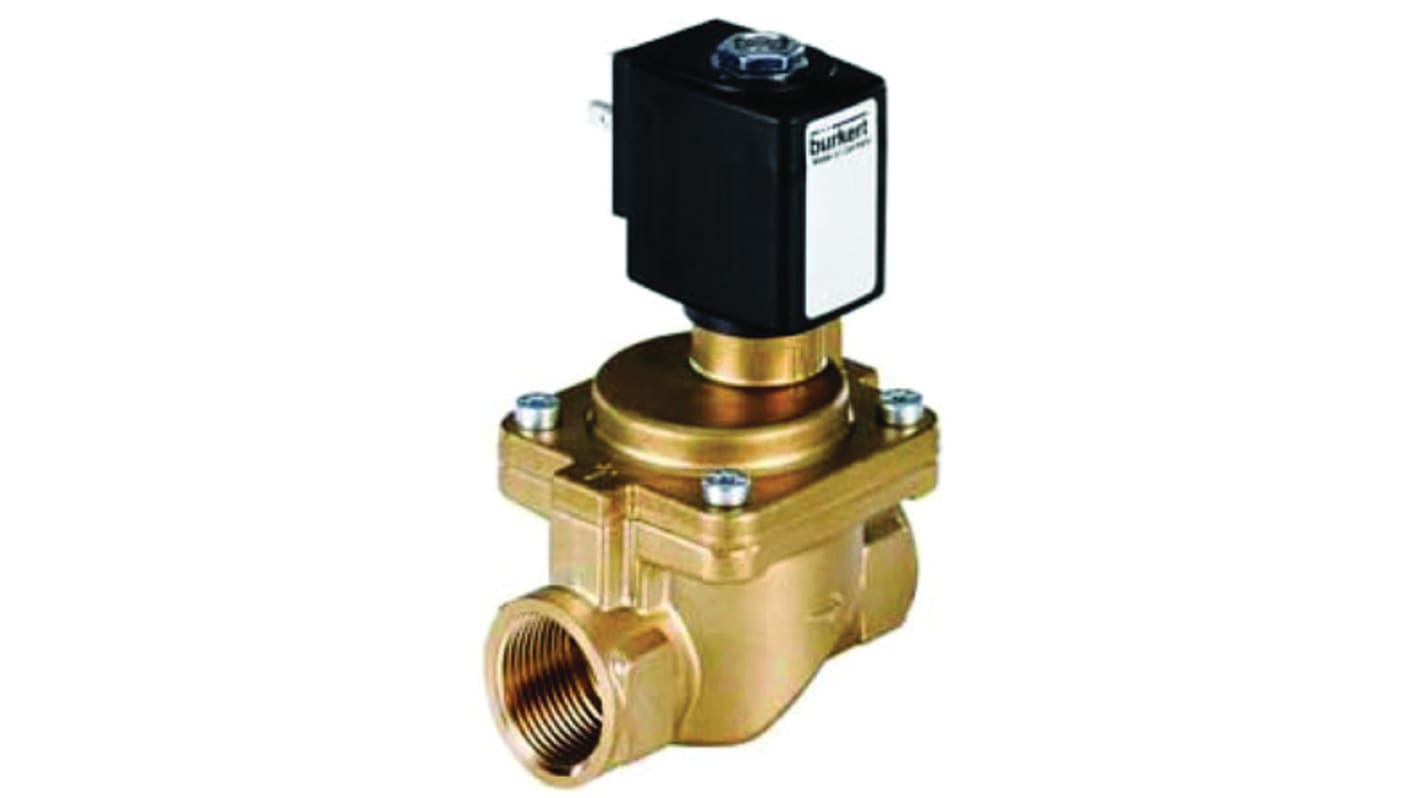

Burkert Solenoid Valve 349719, 2 port(s) , NO, 230 V ac, 3/4in
- RS Stock No.:
- 816-3370
- Mfr. Part No.:
- 349719
- Brand:
- Burkert
Subtotal (1 unit)*
£259.57
(exc. VAT)
£311.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £259.57 |
*price indicative
- RS Stock No.:
- 816-3370
- Mfr. Part No.:
- 349719
- Brand:
- Burkert
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Burkert | |
Supply Voltage | 230 V ac | |
Number of Ports | 2 | |
Connection Size | 3/4in | |
Connection | 3/4 in G | |
Operation | Solenoid | |
Default Valve Position | NO | |
Type | 2/2 | |
Orifice Diameter | 20mm | |
Series | 6281 EV Standard | |
Body Material | Brass | |
Maximum Working Pressure | 16 bar | |
Operating Temperature Range | -10 → +80 °C | |
Maximum Operating Temperature | +80°C | |
Thread Standard or Connection Type | G | |
Minimum Operating Temperature | -10°C | |
Connection Gender | Female | |
Hazardous Area Certification | ATEX | |
Flow Factor Kv | 8.5m³/h | |
Select all | ||
---|---|---|
Brand Burkert | ||
Supply Voltage 230 V ac | ||
Number of Ports 2 | ||
Connection Size 3/4in | ||
Connection 3/4 in G | ||
Operation Solenoid | ||
Default Valve Position NO | ||
Type 2/2 | ||
Orifice Diameter 20mm | ||
Series 6281 EV Standard | ||
Body Material Brass | ||
Maximum Working Pressure 16 bar | ||
Operating Temperature Range -10 → +80 °C | ||
Maximum Operating Temperature +80°C | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -10°C | ||
Connection Gender Female | ||
Hazardous Area Certification ATEX | ||
Flow Factor Kv 8.5m³/h | ||
- COO (Country of Origin):
- DE
DS6281-EV 2/2 Solenoid Valve - Brass Bodied - ATEX
A 2 way servo assisted solenoid valves suitable for use with neutral fluids such as compressed air and water. N/C (Normally Closed) and N/O (Normally Open) versions available with NBR (Nitrile Rubber) or FKM (Fluroelastomer) seals. Usable for a variety of applications including heating and refrigeration, water treatment, compressed air and vacuum systems.
0.1 - 4 second response time (dependant upon pressure)
IP65 Rated (with cable protection)
Brass body
Quiet operation
Water hammer free design
Compact installation length
NPT / Rc connection ports
0.2 - 16 Bar pressure range
ATEX approved
IP65 Rated (with cable protection)
Brass body
Quiet operation
Water hammer free design
Compact installation length
NPT / Rc connection ports
0.2 - 16 Bar pressure range
ATEX approved
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
