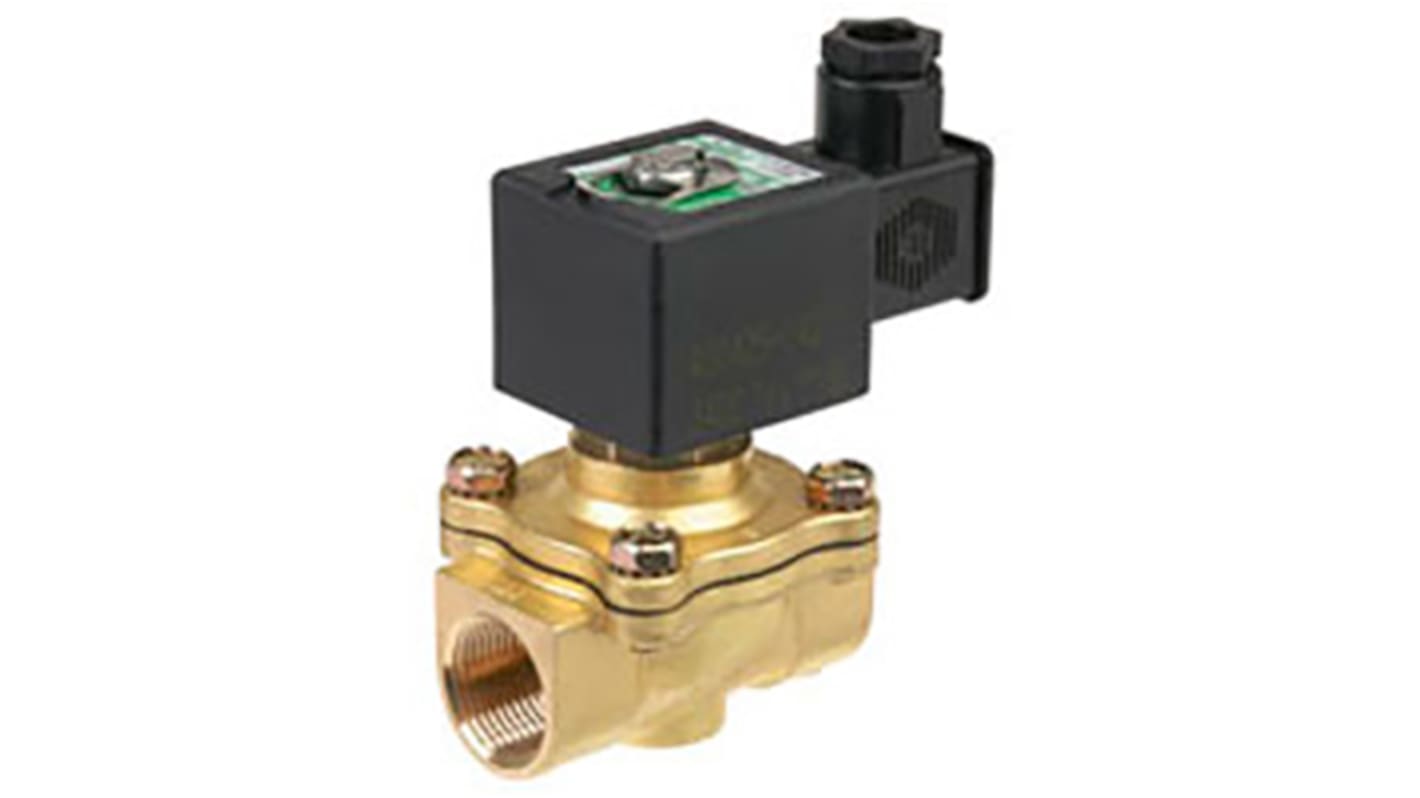

EMERSON ? ASCO Solenoid Valve E210C035SCA8, 2 port(s) , NO, 230 V ac, 3/4in

Subtotal (1 unit)*

£268.36

(exc. VAT)

£322.03

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 2 unit(s) shipping from 20 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£268.36

*price indicative

RS Stock No.:
488-289
Mfr. Part No.:
E210C035SCA8
Brand:
EMERSON ? ASCO
Find similar products by selecting one or more attributes.
Select all

Brand

EMERSON ? ASCO

Supply Voltage

230 V ac

Number of Ports

2

Connection Size

3/4in

Connection

3/4 in Rp Female

Operation

Pilot

Default Valve Position

NO

Suitable Applications

Air, Inert Gas, Oil, Water

Type

2/2

Orifice Diameter

19mm

Series

210

Body Material

Brass

Maximum Working Pressure

9 bar

Operating Temperature Range

-20 → +75 °C

Connection Gender

Female

Maximum Operating Temperature

+75°C

Minimum Operating Temperature

-20°C

Thread Standard or Connection Type

Rp

Flow Factor Kv

4.7m³/h

Maximum Opening Time

120ms

Maximum Closing Time

120ms

RoHS Status: Exempt

Two-way, Pilot Operated, Zero Pressure, N/O Valves


Two-way pilot operated solenoid valves with zero bar minimum operating pressure, normally open with threaded port connection.

Brass body
Pressure not required for operation
Compact & lightweight
DIN plug connection
Can be mounted in any position

Note

Pressure ranges are for water and may differ for other media.


Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
