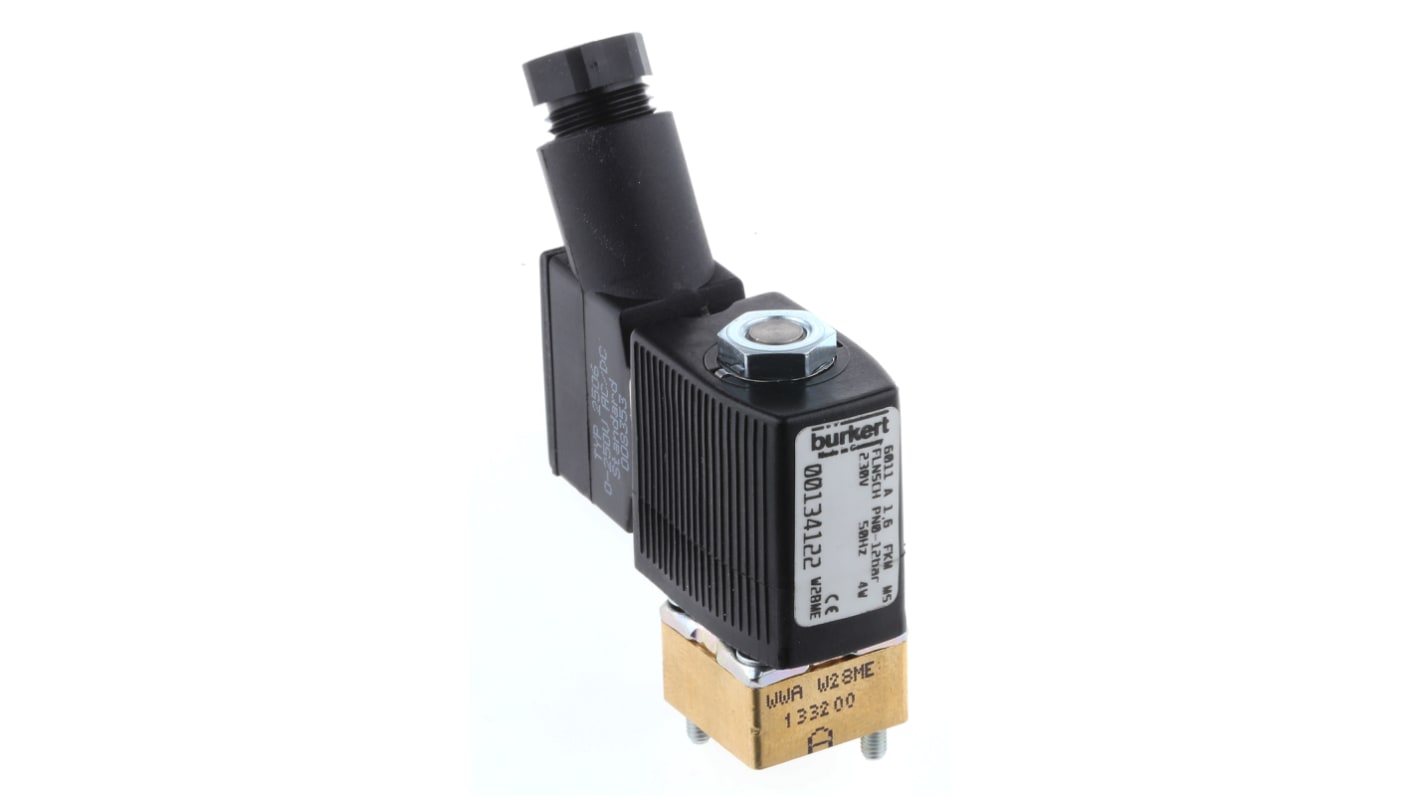

Burkert Solenoid Valve 134122, 2 port(s) , NC, 230 V ac
- RS Stock No.:
- 307-0276
- Mfr. Part No.:
- 134122
- Brand:
- Burkert
Subtotal (1 unit)*
£56.36
(exc. VAT)
£67.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £56.36 |
*price indicative
- RS Stock No.:
- 307-0276
- Mfr. Part No.:
- 134122
- Brand:
- Burkert
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Burkert | |
| Supply Voltage | 230 V ac | |
| Number of Ports | 2 | |
| Operation | Direct | |
| Default Valve Position | NC | |
| Suitable Applications | Liquid, Neutral Gas, Technical Vacuum | |
| Type | 2/2 | |
| Orifice Diameter | 1.6mm | |
| Series | 6011 | |
| Body Material | Brass | |
| Maximum Working Pressure | 12 bar | |
| Operating Temperature Range | -10 → +55 °C | |
| Maximum Operating Temperature | +55°C | |
| Minimum Operating Temperature | -10°C | |
| Maximum Opening Time | 10ms | |
| Maximum Closing Time | 15ms | |
| Flow Factor Kv | 0.06m³/h | |
Select all | ||
|---|---|---|
Brand Burkert | ||
Supply Voltage 230 V ac | ||
Number of Ports 2 | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Liquid, Neutral Gas, Technical Vacuum | ||
Type 2/2 | ||
Orifice Diameter 1.6mm | ||
Series 6011 | ||
Body Material Brass | ||
Maximum Working Pressure 12 bar | ||
Operating Temperature Range -10 → +55 °C | ||
Maximum Operating Temperature +55°C | ||
Minimum Operating Temperature -10°C | ||
Maximum Opening Time 10ms | ||
Maximum Closing Time 15ms | ||
Flow Factor Kv 0.06m³/h | ||
- COO (Country of Origin):
- DE
6011 Series Two-way, Miniature Normally Closed Solenoid Valves - Sub Base Connection (Manifold)
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the valves operation when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
