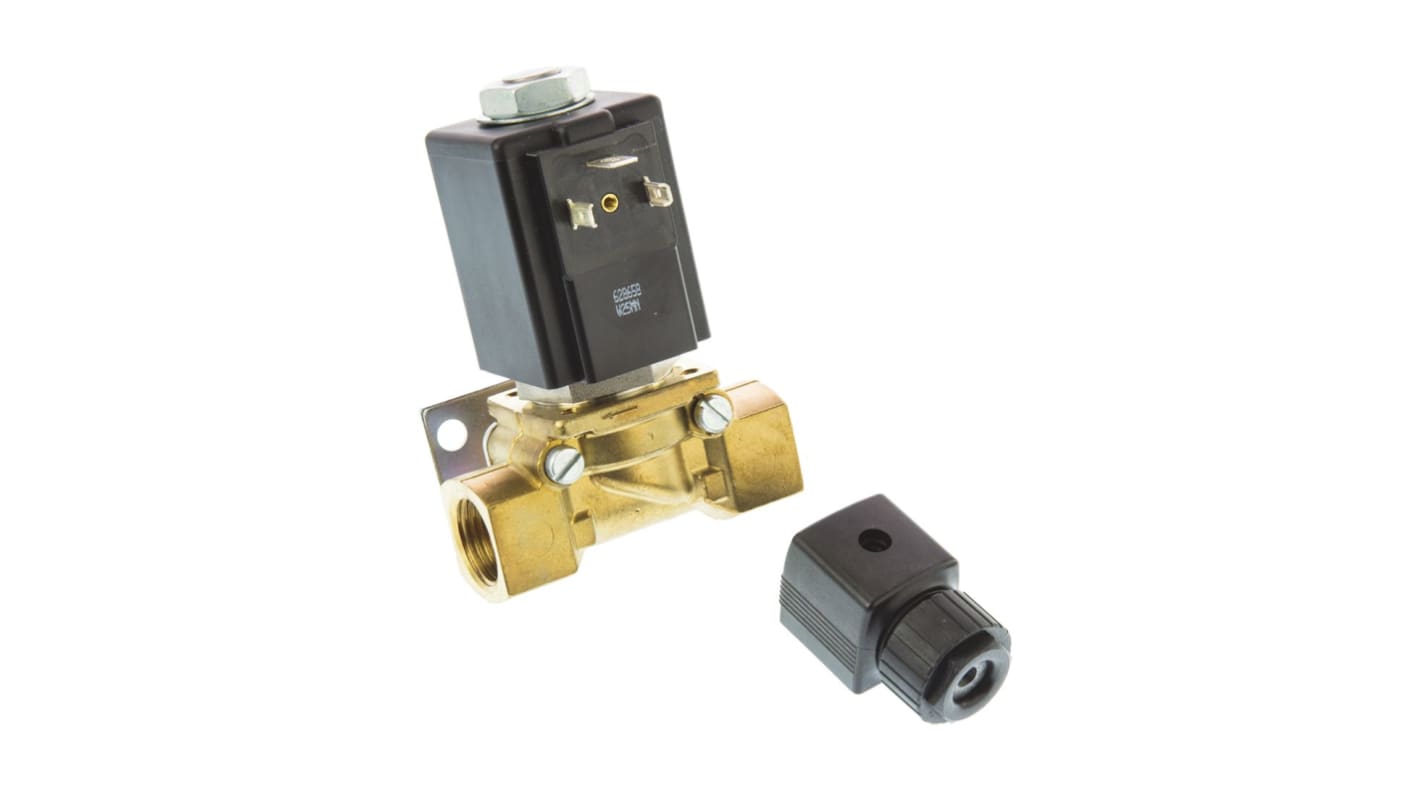

Burkert Solenoid Valve 076551, 2 port(s) , NC, 230 V ac, 1/2in
- RS Stock No.:
- 440-947
- Mfr. Part No.:
- 076551
- Brand:
- Burkert
Subtotal (1 unit)*
£173.72
(exc. VAT)
£208.46
(inc. VAT)
FREE delivery for orders over £50.00
- 9 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 06 November 2025
Units | Per unit |
---|---|
1 + | £173.72 |
*price indicative
- RS Stock No.:
- 440-947
- Mfr. Part No.:
- 076551
- Brand:
- Burkert
Select all | Attribute | Value |
---|---|---|
Brand | Burkert | |
Supply Voltage | 230 V ac | |
Number of Ports | 2 | |
Connection Size | 1/2in | |
Connection | 1/2 in G Female | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Alcohol, Fuel, Hydraulic Oil, Organic Solvent, Steam, Waste Gas, Water | |
Type | 2/2 | |
Orifice Diameter | 4mm | |
Series | 0255 | |
Body Material | Brass | |
Maximum Working Pressure | 12 bar | |
Operating Temperature Range | -40 → +55 °C | |
Connection Gender | Female | |
Thread Standard or Connection Type | G | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +55°C | |
Flow Factor Kv | 0.5m³/h | |
Maximum Opening Time | 20ms | |
Maximum Closing Time | 30ms | |
Select all | ||
---|---|---|
Brand Burkert | ||
Supply Voltage 230 V ac | ||
Number of Ports 2 | ||
Connection Size 1/2in | ||
Connection 1/2 in G Female | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Alcohol, Fuel, Hydraulic Oil, Organic Solvent, Steam, Waste Gas, Water | ||
Type 2/2 | ||
Orifice Diameter 4mm | ||
Series 0255 | ||
Body Material Brass | ||
Maximum Working Pressure 12 bar | ||
Operating Temperature Range -40 → +55 °C | ||
Connection Gender Female | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +55°C | ||
Flow Factor Kv 0.5m³/h | ||
Maximum Opening Time 20ms | ||
Maximum Closing Time 30ms | ||
- COO (Country of Origin):
- DE






Burkert Solenoid Valve
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown with a schematic diagram showing the (circuit) function. The diagram is laid out so that the left-hand side of the diagram describes the operation of the valve when the coil is energised. When the coil is de-energised, the spring (or servo-assist) return controls the valve and is described on the right-hand side of the diagram. The 3 / 2-way designation indicates a valve with three ports and two modes of operation. It is normal practice to refer to 2 / 2-way valves as two ways. The port designations A, B, P, P1, P2 and R are used on the schematic diagrams and are marked on the valve bodies. Valve bodies are marked for a specific circuit function but can often be used for other functions. Reference to the schematic diagrams and technical specifications indicates the appropriate connections and pressure capabilities when an alternative circuit function is required.
Features and Benefits
Brass body and PTFE Seal
Flow factor(Kv) is 0.5m³/h
Operating temperature ranges between -40°C and 55°C
Power consumption ranges between 35VA and 40VA (inrush AC)
Push-over solenoid system
Three-pin DIN connector can be positioned 360° in 90° increments
