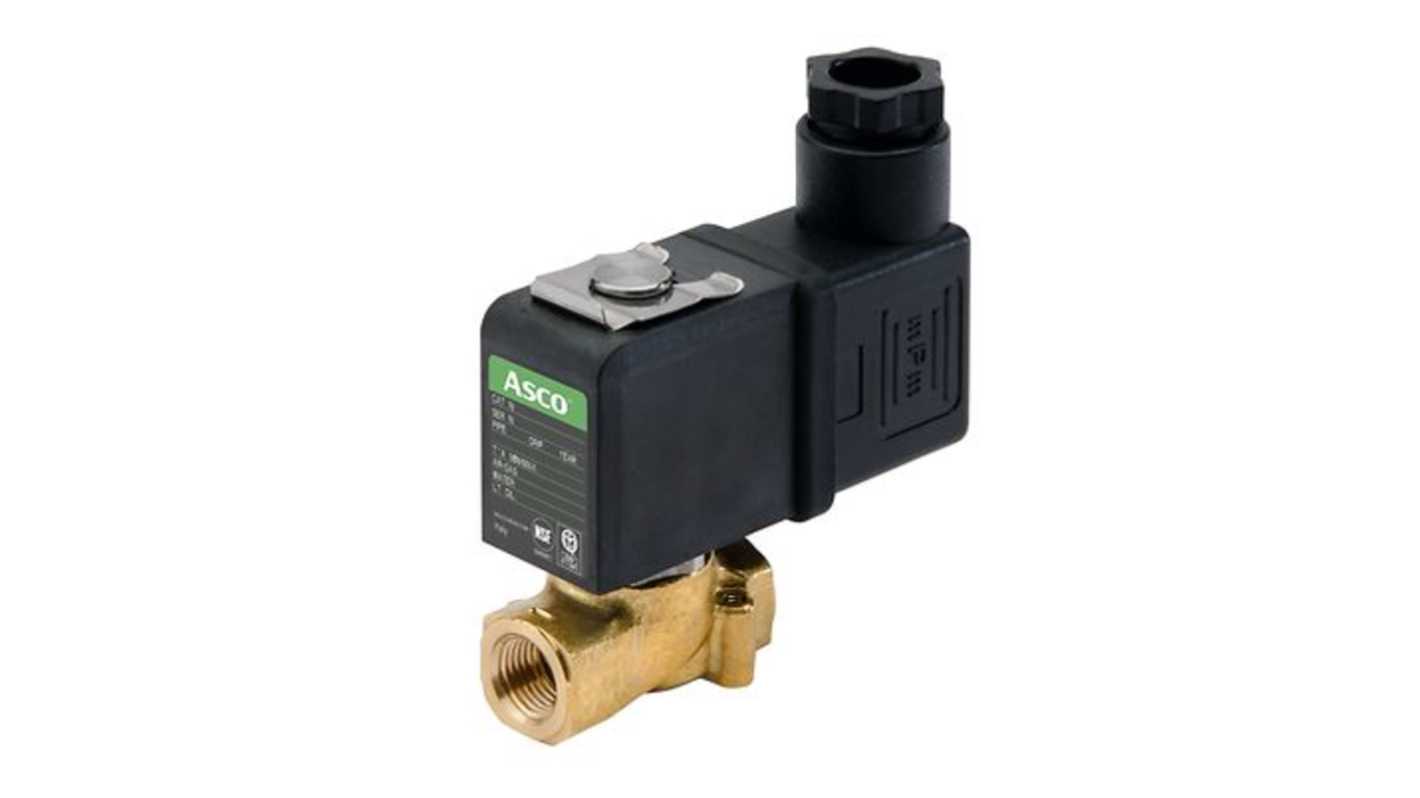

EMERSON ? ASCO Solenoid Valve G256C134S1V01F1, 2 port(s) , NC, 24 V, 1/8in
- RS Stock No.:
- 432-238
- Mfr. Part No.:
- G256C134S1V01F1
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£36.22
(exc. VAT)
£43.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £36.22 |
*price indicative
- RS Stock No.:
- 432-238
- Mfr. Part No.:
- G256C134S1V01F1
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 24 V | |
Number of Ports | 2 | |
Connection Size | 1/8in | |
Connection | G 1/8 | |
Operation | Direct | |
Default Valve Position | NC | |
Suitable Applications | Air, Inert Gas, Oil, Water | |
Type | Solenoid | |
Orifice Diameter | 1.2mm | |
Series | 256 | |
Body Material | Brass | |
Maximum Working Pressure | 20 bar | |
Operating Temperature Range | -10 → +60 °C | |
Servo Assist | No | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Thread Standard or Connection Type | G | |
Flow Factor Kv | 0.85L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 24 V | ||
Number of Ports 2 | ||
Connection Size 1/8in | ||
Connection G 1/8 | ||
Operation Direct | ||
Default Valve Position NC | ||
Suitable Applications Air, Inert Gas, Oil, Water | ||
Type Solenoid | ||
Orifice Diameter 1.2mm | ||
Series 256 | ||
Body Material Brass | ||
Maximum Working Pressure 20 bar | ||
Operating Temperature Range -10 → +60 °C | ||
Servo Assist No | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
Thread Standard or Connection Type G | ||
Flow Factor Kv 0.85L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
The Asco solenoid valve is designed for seamless integration into various applications requiring reliable fluid control. Employing cutting-edge engineering, this product guarantees efficient performance while withstanding diverse working conditions. Featuring a robust construction of brass or stainless steel, it delivers exceptional durability and resistance, making it suitable for both industrial and commercial use. The manual operator functionality adds an extra layer of convenience, allowing for easy installation and operation. With approvals such as NSF 169 and EC 1935/2004, you can trust this valve to meet stringent regulatory standards while ensuring optimal fluid compatibility.
Suitable for a wide range of fluid types including air, water, and oil
Quick and easy disassembly of core tube for maintenance
Compact design helps save installation space
Meets leading electrical safety standards with a protection class of IP67
Flexible installation options allow for mounting in any position
Offers rapid response times for effective fluid control
Standardisation ensures easy compatibility with existing systems
Certified for food-grade applications, ensuring safety and compliance
Quick and easy disassembly of core tube for maintenance
Compact design helps save installation space
Meets leading electrical safety standards with a protection class of IP67
Flexible installation options allow for mounting in any position
Offers rapid response times for effective fluid control
Standardisation ensures easy compatibility with existing systems
Certified for food-grade applications, ensuring safety and compliance
