- RS Stock No.:
- 176-2069
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Supply Voltage | 24 V dc | |
Power Rating Holding | 6.5W | |
Hole Diameter | 10mm | |
IP Rating | IP65 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V dc | ||
Power Rating Holding 6.5W | ||
Hole Diameter 10mm | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- IT

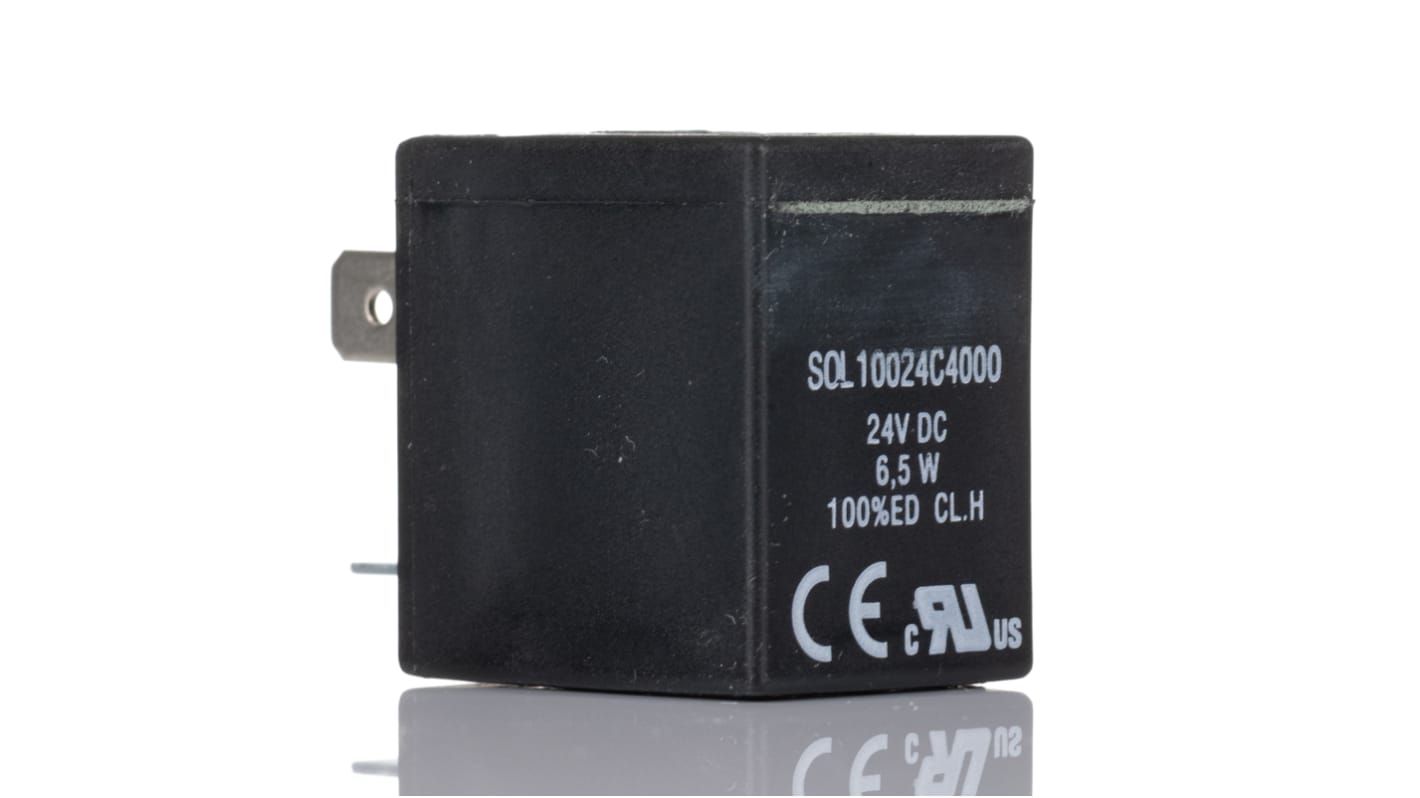

RS PRO Solenoid Valve, 2 port, 24 V DC, 10 mm
This RS PRO solenoid valve controls the flow rate of a liquid or gas. Its coils use electromagnetic force to control the flow rate and are energy-efficient to help save power.
The valve has an operating spectrum of -10ºC to +80ºC so it'll continue to function even with spikes in temperature. Its lightweight brass body is smooth for reducing friction.
The valve has a stainless steel tube, core and spring that are corrosion-resistant to keep it from deteriorating over time. A 40 bar maximum working pressure rate gives you scope to use high-speed rates in the system.
The valve has an operating spectrum of -10ºC to +80ºC so it'll continue to function even with spikes in temperature. Its lightweight brass body is smooth for reducing friction.
The valve has a stainless steel tube, core and spring that are corrosion-resistant to keep it from deteriorating over time. A 40 bar maximum working pressure rate gives you scope to use high-speed rates in the system.
Features and Benefits
• Brass body material
• Connection of 10 mm
• One touch fitting
• Connection size of 16.5 mm
• Maximum operating temperature of +80°C
• Minimum operating temperature of -10°C
• Two ports
• Orifice diameter of 22 mm
• Supply voltage of 24 V DC
• Solenoid type
• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards
• Connection of 10 mm
• One touch fitting
• Connection size of 16.5 mm
• Maximum operating temperature of +80°C
• Minimum operating temperature of -10°C
• Two ports
• Orifice diameter of 22 mm
• Supply voltage of 24 V DC
• Solenoid type
• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards
