Subtotal (1 unit)*
£11.53
(exc. VAT)
£13.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 48 unit(s) ready to ship
- Plus 27 unit(s) ready to ship from another location
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.53 |
*price indicative
- RS Stock No.:
- 176-2068
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Supply Voltage | 24 V ac | |
For Use With | 2 Port Solenoid Valve | |
Power Rating Holding | 7.5VA | |
Series | 22 | |
Hole Diameter | 10mm | |
IP Rating | IP65 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V ac | ||
For Use With 2 Port Solenoid Valve | ||
Power Rating Holding 7.5VA | ||
Series 22 | ||
Hole Diameter 10mm | ||
IP Rating IP65 | ||
- COO (Country of Origin):
- IT

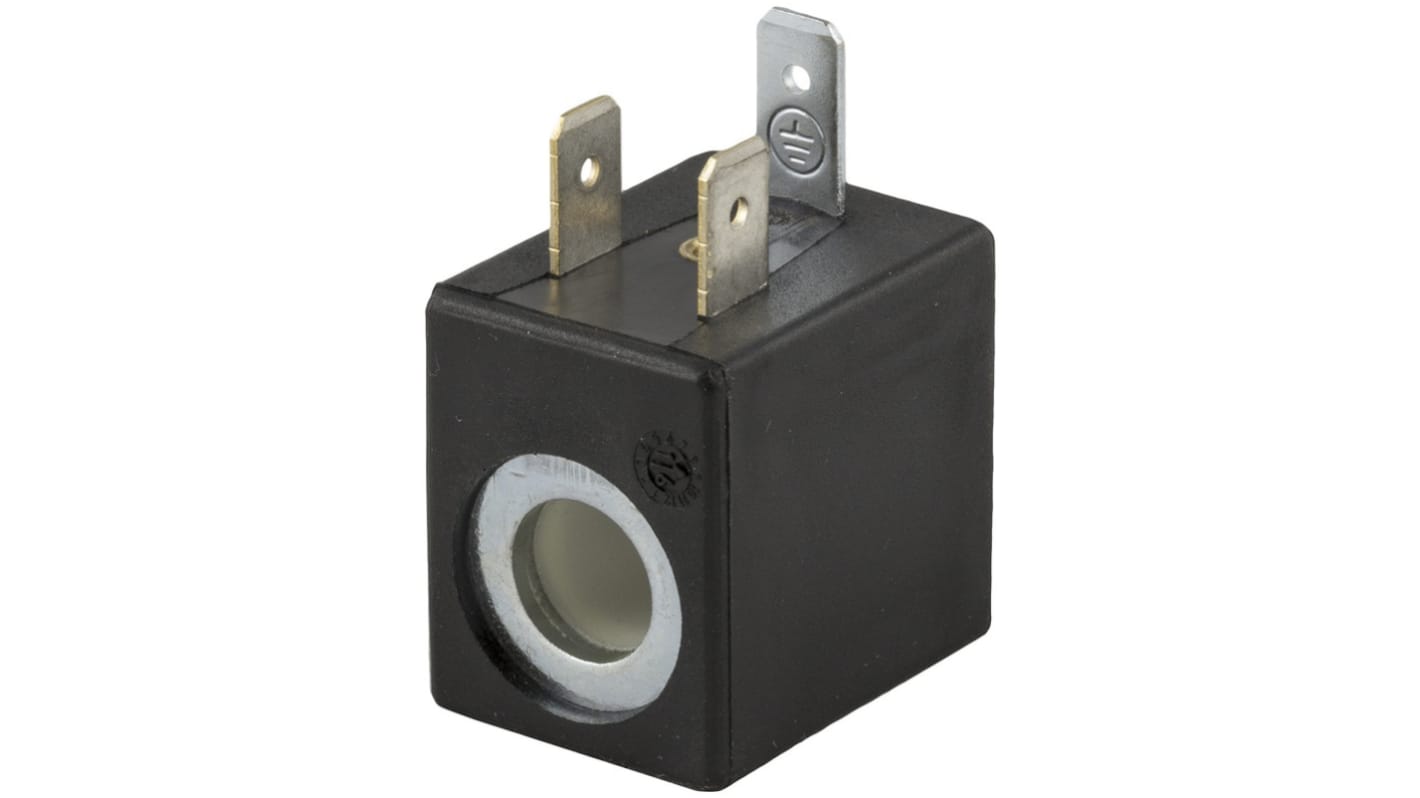

RS PRO 22mm Solenoid Valve (24V AC)
An essential component of solenoid valves the RS PRO solenoid valve coil is designed to regulate the liquid and gas flow in pressure systems by converting electrical into magnetic energy activating the valve.
Constructed with a robust Brass body resistant to impact and corrosion and a strong Stainless Steel core and spring that with provide years of reliable service.
With a maximum pressure of 40 bar and a temperature range from -10°C right up to +80°C the solenoid valve coil is powerful and can withstand rises and drops in temperature during operation resulting in a hardwearing professional solenoid coil fit for harsh conditions
Features and Benefits
- Solenoid valve coil (solenoid operation)
- Continuous operation (100% ED)
- Size of 22mm
- 10.2mm connection
- Dimensions of 29.5 x 27.8
- Maximum working pressure of 40 bar
- Supply voltage of 24 V AC
- Voltage tolerance of ±10 %
- Rating of 7.5VA
- Brass body material
- Stainless Steel spring, tube and core
- IP65 rated
- Isolation class H
- Minimum operating temperature of -10°C
- Maximum operating temperature of +80°C
Standards and Approvals: DIN 43650, CEI EN 60085
