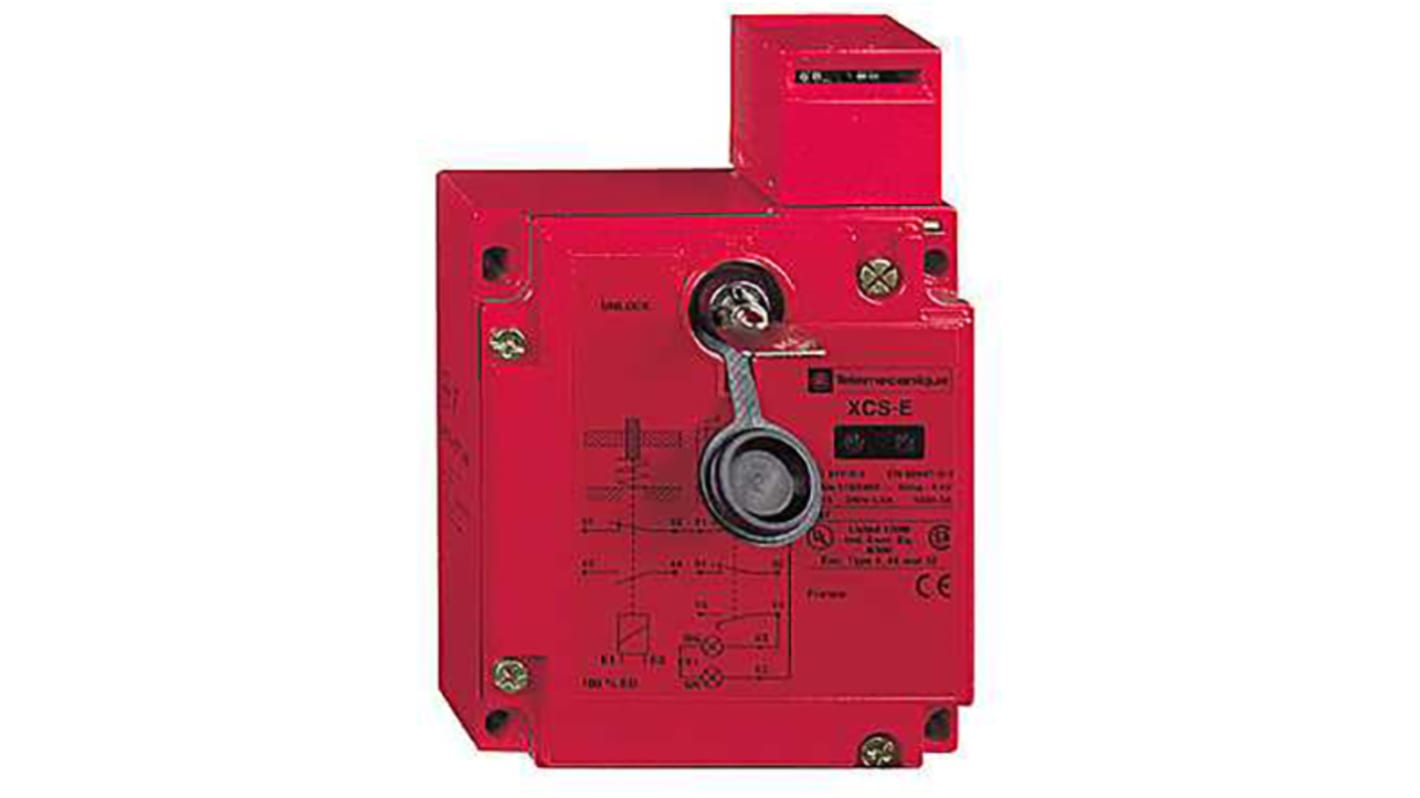

XCS-E Safety Limit Switch Power to Unlock 24 V ac/dc

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

XCSE Solenoid Interlock Switch

Key operated lock to allow authorised override of solenoid (key supplied)
2 LED indicators (orange/guard open, green/guard closed, key in locked position)
Heavy duty metal compact style to IP67
Turret heads can be rotated through 360° in 90 steps
8 actuator entries and 1 tapped entry
Contact rating 24 Vac/6 A; 110 Vac/3 A; 230 Vac/2 A; 24 Vdc/0.5 A for 1000000 operations
20N minimum operating force for positive opening
Productivity is increased due to the third contact dedicated to diagnostics

Note

Actuators must be purchased separately, see Accessories table.

Standards

Conforms to EN1088, EN60204

Specifications
Attribute Value
Range Preventa
Series XCS-E
Power to Lock / Unlock Power to Unlock
Actuator Included Yes
Actuator Type Key
Conduit Entry 1/2 NPT
Length 146mm
Width 98mm
Depth 44mm
Supply Voltage 24 V ac/dc
Housing Material Metal
IP Rating IP67
Dimensions 146 x 98 x 44 mm
Safety Contacts 1NO/2NC
Available to back order for despatch 17/11/2020, delivery within 2 working days
Price Each
Was £496.22
£ 348.00
(exc. VAT)
£ 417.60
(inc. VAT)
Units
Per unit
1 +
£348.00
Not available for guaranteed pre 9am/10am delivery
