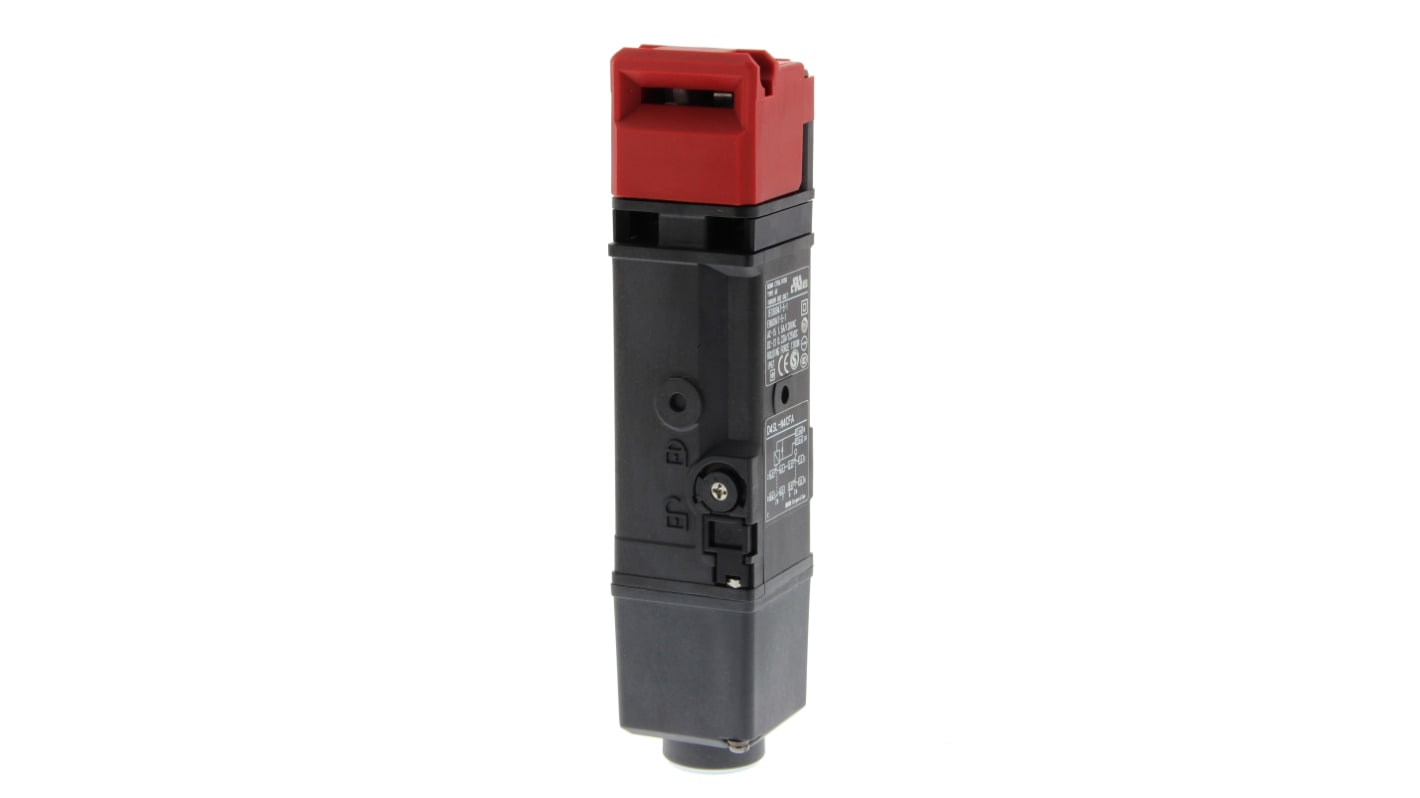

Omron D4SL Series Solenoid Interlock Switch, Power to Lock
- RS Stock No.:
- 214-7557
- Distrelec Article No.:
- 301-36-844
- Mfr. Part No.:
- D4SL-N4DFG
- Brand:
- Omron
Subtotal (1 unit)*
£171.70
(exc. VAT)
£206.04
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 13 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £171.70 |
*price indicative
- RS Stock No.:
- 214-7557
- Distrelec Article No.:
- 301-36-844
- Mfr. Part No.:
- D4SL-N4DFG
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Solenoid Interlock Switch | |
| Actuator Included | No | |
| Series | D4SL | |
| Safety Contacts | 2 NC/2 NC | |
| Terminal Type | Screw | |
| Conduit Entry | M20 | |
| Number of Auxiliary Contacts | 4 | |
| Contact AC Voltage | 120V ac | |
| Contact Current | 1.5A | |
| Contact DC Voltage | 125V | |
| Power to Lock/Unlock | Power to Lock | |
| Housing Material | Plastic | |
| Depth | 39mm | |
| Width | 39mm | |
| Length | 155mm | |
| IP Rating | IP67 | |
| Standards/Approvals | CCC, UL, CE | |
| Hazardous Area Certification | No | |
| Supply Voltage | 24V dc | |
| Power Consumption | 4.8W | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Solenoid Interlock Switch | ||
Actuator Included No | ||
Series D4SL | ||
Safety Contacts 2 NC/2 NC | ||
Terminal Type Screw | ||
Conduit Entry M20 | ||
Number of Auxiliary Contacts 4 | ||
Contact AC Voltage 120V ac | ||
Contact Current 1.5A | ||
Contact DC Voltage 125V | ||
Power to Lock/Unlock Power to Lock | ||
Housing Material Plastic | ||
Depth 39mm | ||
Width 39mm | ||
Length 155mm | ||
IP Rating IP67 | ||
Standards/Approvals CCC, UL, CE | ||
Hazardous Area Certification No | ||
Supply Voltage 24V dc | ||
Power Consumption 4.8W | ||
Omron D4SL Series Solenoid Interlock Switch, 4.8W Power Consumption, IP67 - D4SL-N4DFG
This solenoid interlock switch is designed to secure access panels and guards by electrically controlling lock state in industrial systems. It operates as a power-to-lock device and is intended for integration where compact, sealed switching and safety monitoring are required. The unit is fitted with a plastic enclosure and a protected conduit entry for wiring in harsh conditions.
Features & Benefits
• IP67 rating provides waterproof protection for outdoor use
• 4.8W power consumption enables energy-aware control
• 2NC/2NC safety contacts support dual-circuit safety monitoring
• 120V AC and 125V DC ratings allow mixed-voltage installations
• Screw terminals permit straightforward, secure field wiring
• 1.5A contact current handles auxiliary control loads
• 4.8W power consumption enables energy-aware control
• 2NC/2NC safety contacts support dual-circuit safety monitoring
• 120V AC and 125V DC ratings allow mixed-voltage installations
• Screw terminals permit straightforward, secure field wiring
• 1.5A contact current handles auxiliary control loads
Applications
• Suitable for guarding and access control on automated production lines
• Ideal for interlocking machine doors in electrical assembly cells
• used with conveyor protection systems requiring electrical locking
• Can be used for safety gating on mechanical machining centres
• Suitable for retrofit safety upgrades in industrial control cabinets
• Ideal for interlocking machine doors in electrical assembly cells
• used with conveyor protection systems requiring electrical locking
• Can be used for safety gating on mechanical machining centres
• Suitable for retrofit safety upgrades in industrial control cabinets
What conduit size does the unit accept for cable entry?
It uses an M20 conduit entry to accommodate standard industrial cabling glands.
How many auxiliary contacts are available for additional circuits?
There are four auxiliary contacts provided for auxiliary signalling or control functions.
What Terminal style is used for wiring connections?
Wiring is terminated via screw-type terminals to ensure a firm electrical connection.
What is the unit’s power behaviour when actuated?
The device requires electrical power to lock, drawing 4.8W during locking operation and permitting controlled release when de-energised.
How Compact is the device for installations with limited space?
The enclosure measures 155mm in length and 39mm in both width and depth for tight mounting locations.
