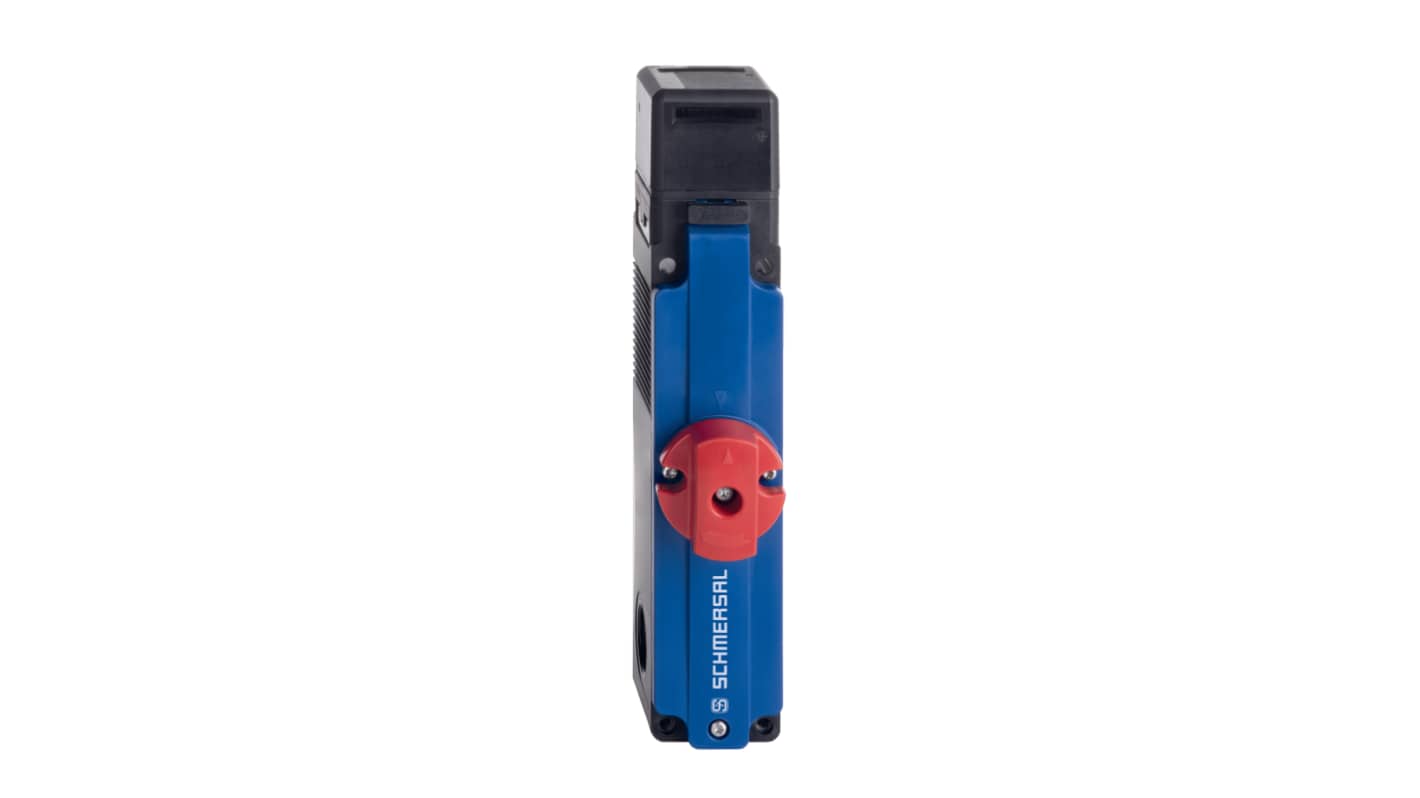

Schmersal AZM 150 Series Solenoid Interlock Switch, Power to Unlock
- RS Stock No.:
- 335-803
- Mfr. Part No.:
- AZM150SK-02/02RN-230
- Brand:
- Schmersal
Subtotal (1 unit)*
£368.11
(exc. VAT)
£441.73
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £368.11 |
*price indicative
- RS Stock No.:
- 335-803
- Mfr. Part No.:
- AZM150SK-02/02RN-230
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Product Type | Solenoid Interlock Switch | |
| Actuator Included | No | |
| Series | AZM 150 | |
| Safety Contacts | 4 | |
| Terminal Type | Screw | |
| Conduit Entry | 3 x (M20 x 1.5) | |
| Contact Current | 4A | |
| Contact AC Voltage | 230V ac | |
| Power to Lock/Unlock | Power to Unlock | |
| Housing Material | Polyamide 6 Fibre Glass, Thermoplastic | |
| Contact DC Voltage | 24V dc | |
| IP Rating | IP67, IP65 | |
| Length | 64mm | |
| Width | 40 mm | |
| Depth | 204mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | EN ISO 14119, EN IEC 60947-5-1, cULus, TÜV, EN ISO 13849-1 | |
| Power Consumption | 8.5W | |
| Supply Voltage | 230 V ac | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Product Type Solenoid Interlock Switch | ||
Actuator Included No | ||
Series AZM 150 | ||
Safety Contacts 4 | ||
Terminal Type Screw | ||
Conduit Entry 3 x (M20 x 1.5) | ||
Contact Current 4A | ||
Contact AC Voltage 230V ac | ||
Power to Lock/Unlock Power to Unlock | ||
Housing Material Polyamide 6 Fibre Glass, Thermoplastic | ||
Contact DC Voltage 24V dc | ||
IP Rating IP67, IP65 | ||
Length 64mm | ||
Width 40 mm | ||
Depth 204mm | ||
Hazardous Area Certification No | ||
Standards/Approvals EN ISO 14119, EN IEC 60947-5-1, cULus, TÜV, EN ISO 13849-1 | ||
Power Consumption 8.5W | ||
Supply Voltage 230 V ac | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The Schmersal Solenoid interlocks are designed with a thermoplastic enclosure, offering eight approach levels through a rotating head. They ensure simple fitting, particularly suited for 40 mm profiles.
Working principle electromechanical
Housing material Thermoplastic, Polyamide PA 6 GF
Gross weight 590 g
