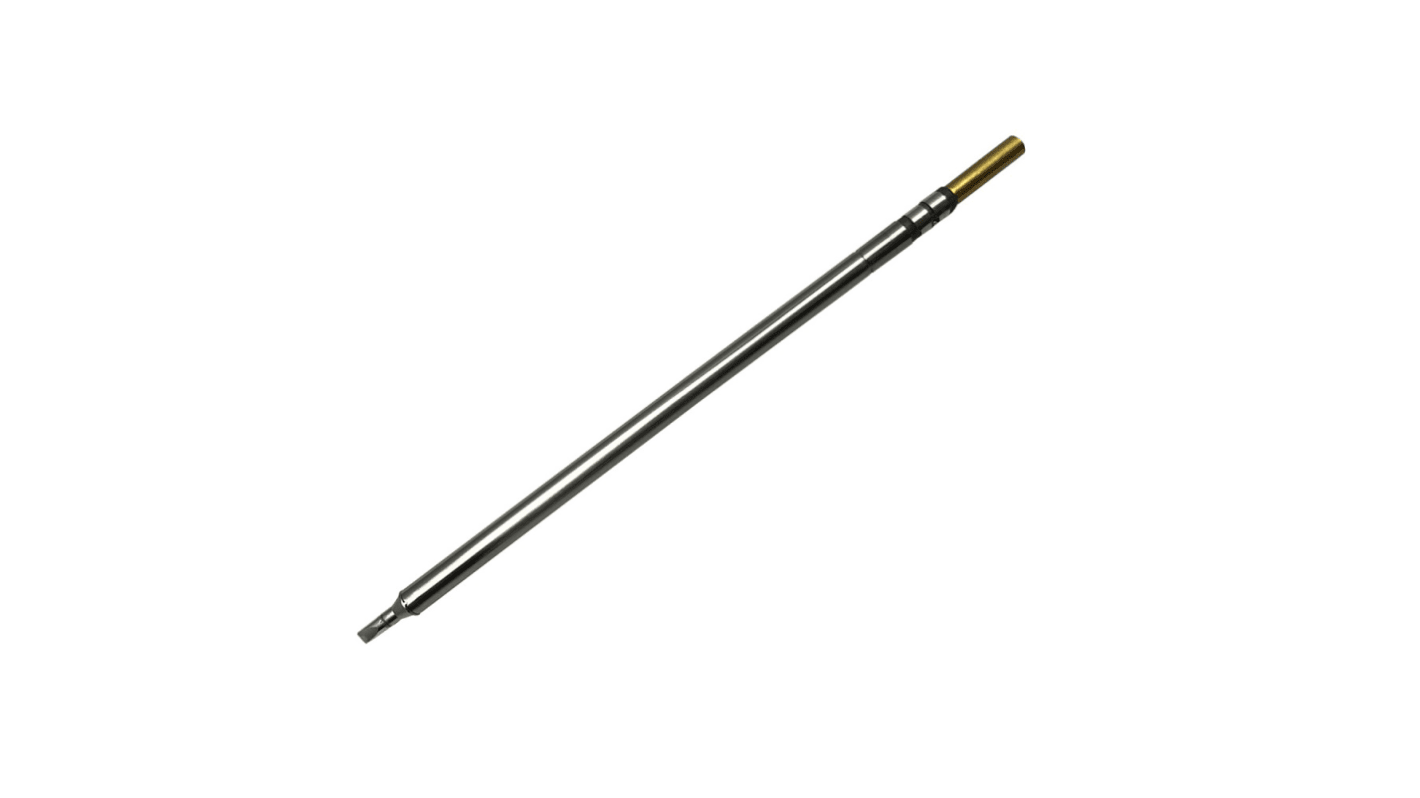

Metcal 9.9 mm Conical Chisel 9.9 mm Soldering Iron Tip for use with MX-5000, MX-5200, CV-500 S, MX-500, CV-5200
- RS Stock No.:
- 182-7646
- Mfr. Part No.:
- CVC-9CH0025S
- Brand:
- Metcal
Subtotal (1 unit)*
£33.33
(exc. VAT)
£40.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £33.33 |
*price indicative
- RS Stock No.:
- 182-7646
- Mfr. Part No.:
- CVC-9CH0025S
- Brand:
- Metcal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Metcal | |
| Product Type | Soldering Iron Tip | |
| Tip Shape | Conical Chisel | |
| For Use With | MX-5000, MX-5200, CV-500 S, MX-500, CV-5200 | |
| Tip Series | 900 | |
| Tip Angle | 30° | |
| Tip Width | 9.9 mm | |
| Tip Length | 9.9mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Metcal | ||
Product Type Soldering Iron Tip | ||
Tip Shape Conical Chisel | ||
For Use With MX-5000, MX-5200, CV-500 S, MX-500, CV-5200 | ||
Tip Series 900 | ||
Tip Angle 30° | ||
Tip Width 9.9 mm | ||
Tip Length 9.9mm | ||
Standards/Approvals RoHS | ||
Metcal CVC Soldering Tips / Solder Tip Cartridges.
CVC-, SMC- solder tip cartridges are the standard soldering tip range for the Metcal CV-5200, CV-500, MX-500, MX-5200 and MX-5200 series soldering systems.
All cartridges are available in 4 temperature ranges.
The temperature/series is designated by the by the first digit in the numerical part of the part number.
Metcal recommends the 700-series for the majority of applications.
600-series for light load or low temperature applications.
800/900-series for high temperature and thermally demanding applications.
Can be used with leaded and lead-free solder. The Metcal “SmartHeat®-Technology“ will adjust delivered power during soldering to suit the application.
Suitable for Use With:
CV-5200, CV-500, MX-500, MX-5000, MX-5200, solder iron MX-H1-AV, MX-RM3E, MX-H7-SF, solder-Kit MX-UK1, CV-H1-AV, CV-H7-AV.
