Felder Lottechnik 0.5mm Wire Lead solder, +179°C Melting Point

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): DE
Product Details

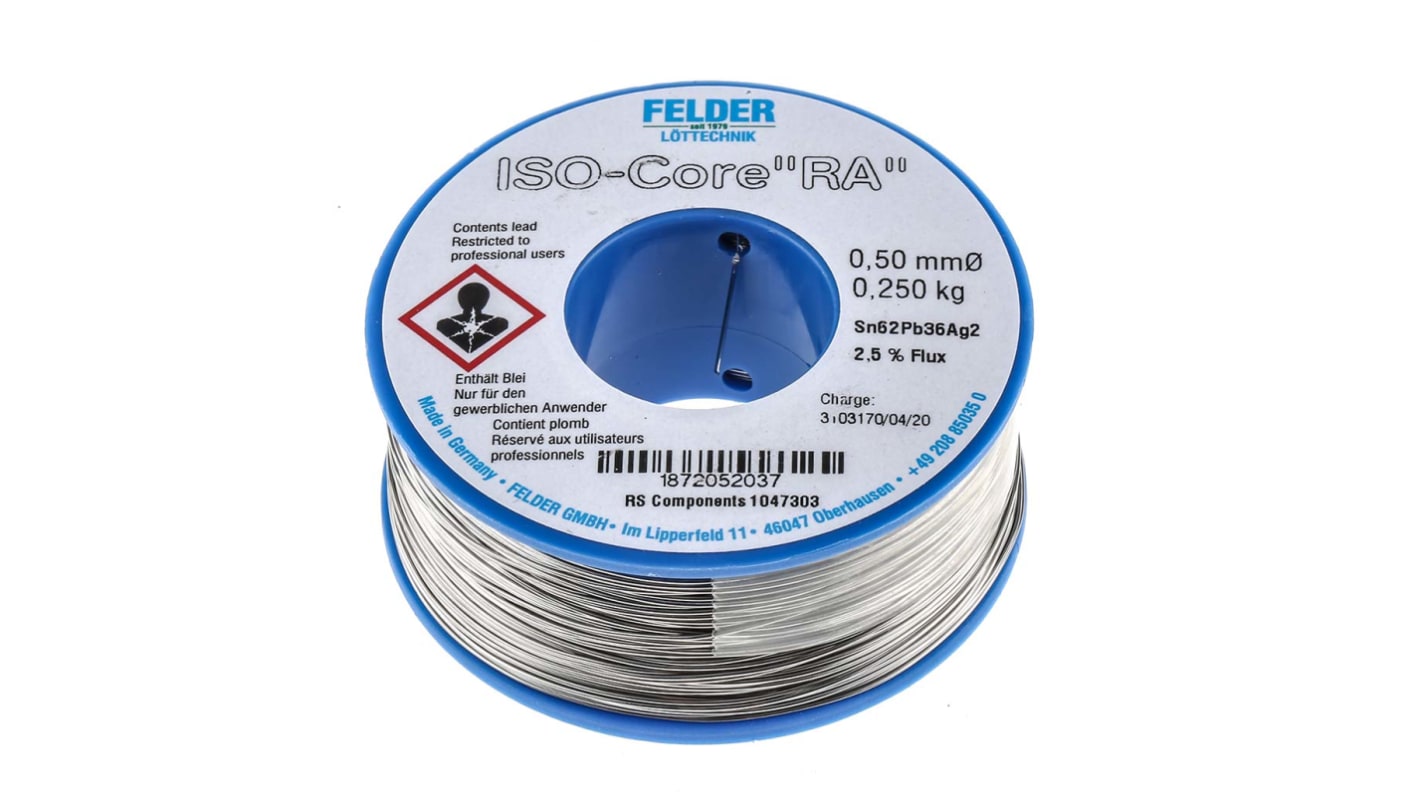

Leaded soldering wire RA, F-SW26

RA soldering wire with 5 activated colophony cores with 2.5% F-SW 26 flux
Outstanding wetting and spreading properties, also suitable for difficult solders in electrical engineering and electronics
High-purity alloys for reliable solder joints

Standards

DIN EN 29454-1

Specifications
Attribute Value
Wire Diameter 0.5mm
Percent Lead 36%
Product Form Wire
Melting Point 179°C
Percent Silver 2%
Percent Tin 62%
Flux Type Rosin Based
Product Weight 250g
Flux Content Percent 2.5%
6 In stock - FREE next working day delivery available
38 available from Europe for delivery within 1 working day(s)
Price Each
£ 27.38
(exc. VAT)
£ 32.86
(inc. VAT)
Units
Per unit
1 - 9
£27.38
10 - 19
£26.28
20 - 49
£25.46
50 +
£23.26
