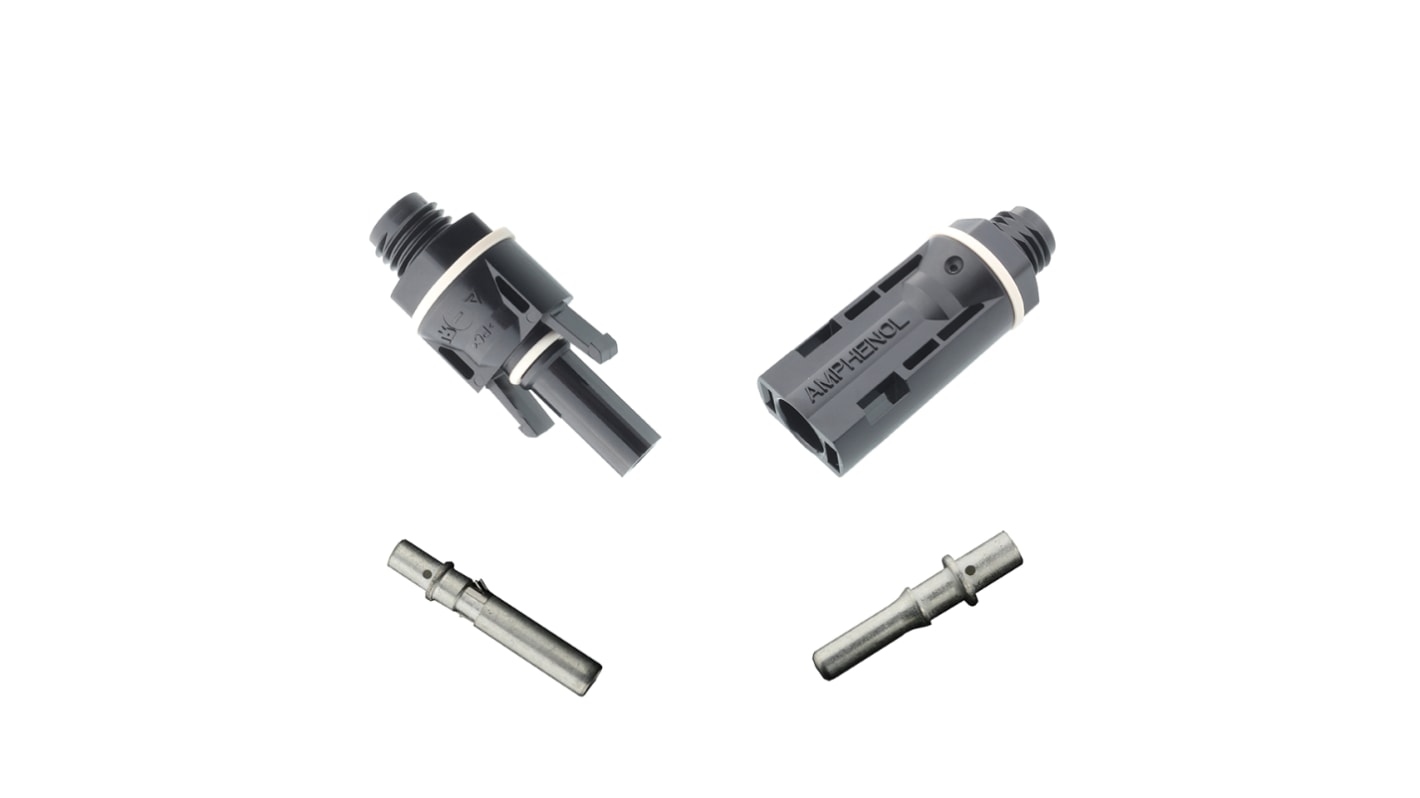

Amphenol Industrial H4 Series, Male Panel Solar Connector, Cable CSA, 2.5mm², 4 mm², 1000V, 35A
- RS Stock No.:
- 193-1815
- Mfr. Part No.:
- H4CMM4DI
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 bag of 5 units)*
£10.20
(exc. VAT)
£12.25
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 25 unit(s) ready to ship
- Plus 170 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 5 - 20 | £2.04 | £10.20 |
| 25 - 95 | £1.842 | £9.21 |
| 100 + | £1.596 | £7.98 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 193-1815
- Mfr. Part No.:
- H4CMM4DI
- Brand:
- Amphenol Industrial
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Termination Type | Quick Connect | |
| Sub Type | Solar Connector | |
| Product Type | Solar Connector | |
| Cable CSA | 2.5, 4mm² | |
| Current | 35A | |
| Mount Type | Panel | |
| Connector Gender | Male | |
| Keying | Plus | |
| Voltage | 1000V | |
| Minimum Operating Temperature | -40°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | UL | |
| Better World Product | Yes | |
| Better World Claim | Renewable Energy Solution | |
| Series | H4 | |
| Thread Size | M12 | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Termination Type Quick Connect | ||
Sub Type Solar Connector | ||
Product Type Solar Connector | ||
Cable CSA 2.5, 4mm² | ||
Current 35A | ||
Mount Type Panel | ||
Connector Gender Male | ||
Keying Plus | ||
Voltage 1000V | ||
Minimum Operating Temperature -40°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals UL | ||
Better World Product Yes | ||
Better World Claim Renewable Energy Solution | ||
Series H4 | ||
Thread Size M12 | ||
Amphenol Industrial Solar Technologies’ H4 PV Panel Connector carries more amps than the industry standard connector. Available in four different gauges: 31A(2.5mm2, AWG14), 42A(4.0mm2, AWG12), 53A(6.0mm2, AWG10), 65A(10.0mm2, AWG8).
Fully mateable with UTX connectors
Long-term UV and Ozone resistance
High current rating
Low contact resistance means low power loss
Ready for field assembly
