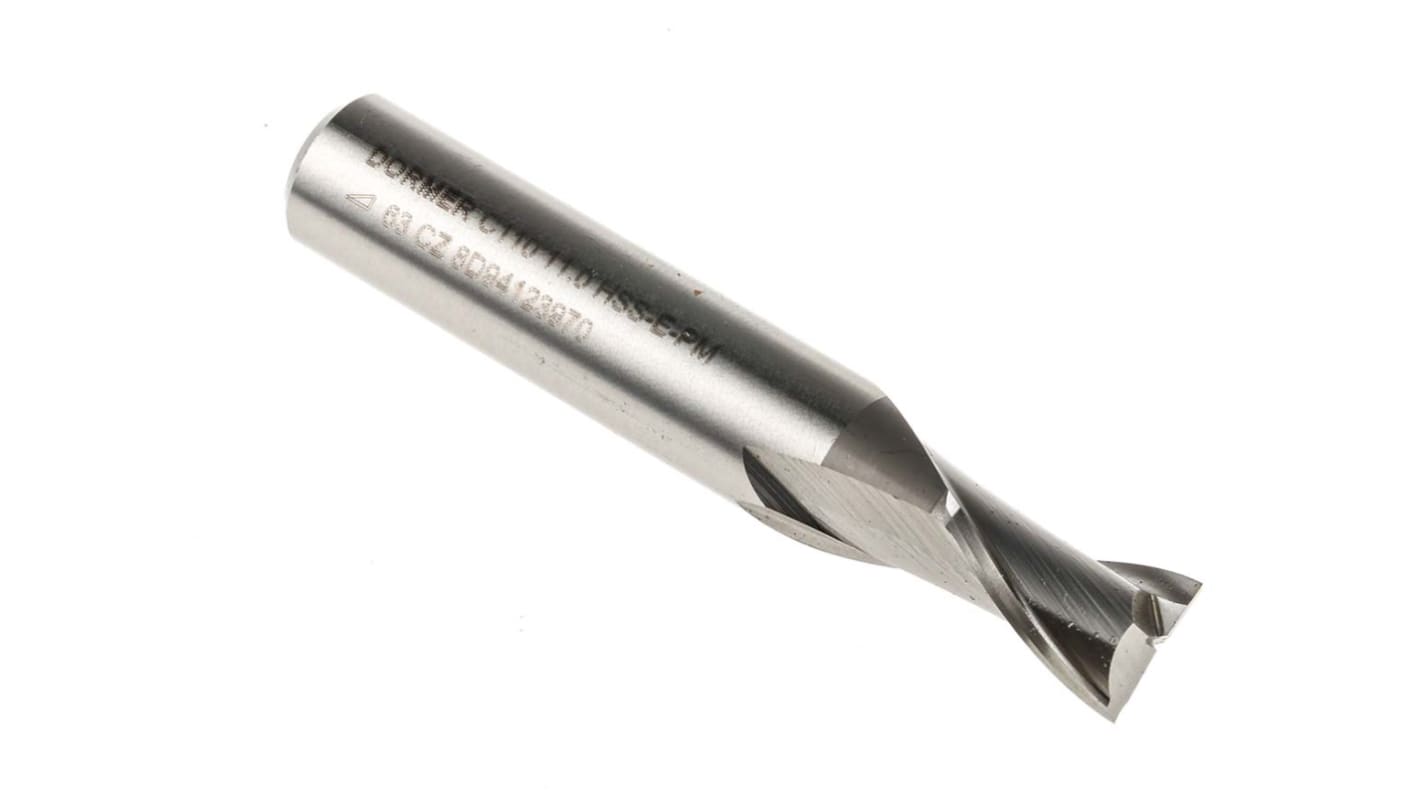

Dormer Plain Slot Drill, 11mm Cut Diameter
- RS Stock No.:
- 578-752
- Mfr. Part No.:
- C11011.0
- Brand:
- Dormer
Specifications |
|---|
Shank Type:Plain |
Cut Length:13mm |
Cutter Diameter:11mm |
Number of Flutes:2 |
Material:HSS-E-PM |
View datasheets |
11 In stock - FREE next working day delivery available
Price Each
£35.91
(exc. VAT)
£43.09
(inc. VAT)
| Units | Per unit |
| 1 - 11 | £35.91 |
| 12 - 24 | £34.83 |
| 25 + | £33.76 |
- RS Stock No.:
- 578-752
- Mfr. Part No.:
- C11011.0
- Brand:
- Dormer
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- IT
Product Details
HSCo short centre cutting slot drills C110 and C100
A range of short cobalt drills (steel quality HSCo 8% Co) with a cylindrical shank and flat face.
The shank diameter tolerance class is H6 and the cutting diameter is E8.
Helix geometry is 30° right-handed, the cut angle is 12° and the cut is centred.
C110 drills are available in Ø 2 → 6 mm drills and from Ø 6.5 mm upwards for C100.
Used to cut grooves to P9 tolerance.
The shank diameter tolerance class is H6 and the cutting diameter is E8.
Helix geometry is 30° right-handed, the cut angle is 12° and the cut is centred.
C110 drills are available in Ø 2 → 6 mm drills and from Ø 6.5 mm upwards for C100.
Used to cut grooves to P9 tolerance.
Standards
ISO 1641 and DIN 327 D
Flatted Shank - HSCo
These slot drills have a parallel shank with flats, diameter tolerance e8 (undersize h10), 3 flute, short length, centre cutting, 30° spiral, HSCo 8%. They are to DIN327 form D. Applications include keyway and slot milling, and production of closed slots by ’plunge’ feeding.
Specifications
| Attribute | Value |
| Shank Type | Plain |
| Cut Length | 13mm |
| Cutter Diameter | 11mm |
| Number of Flutes | 2 |
| Material | HSS-E-PM |
| Overall Length | 70 mm |
| Shank Diameter | 12 mm |
| Diameter Tolerance | e8 |
