Dormer Plain Slot Drill, 2mm Cut Diameter
- RS Stock No.:
- 300-2649
- Mfr. Part No.:
- C500-2,00
- Brand:
- Dormer

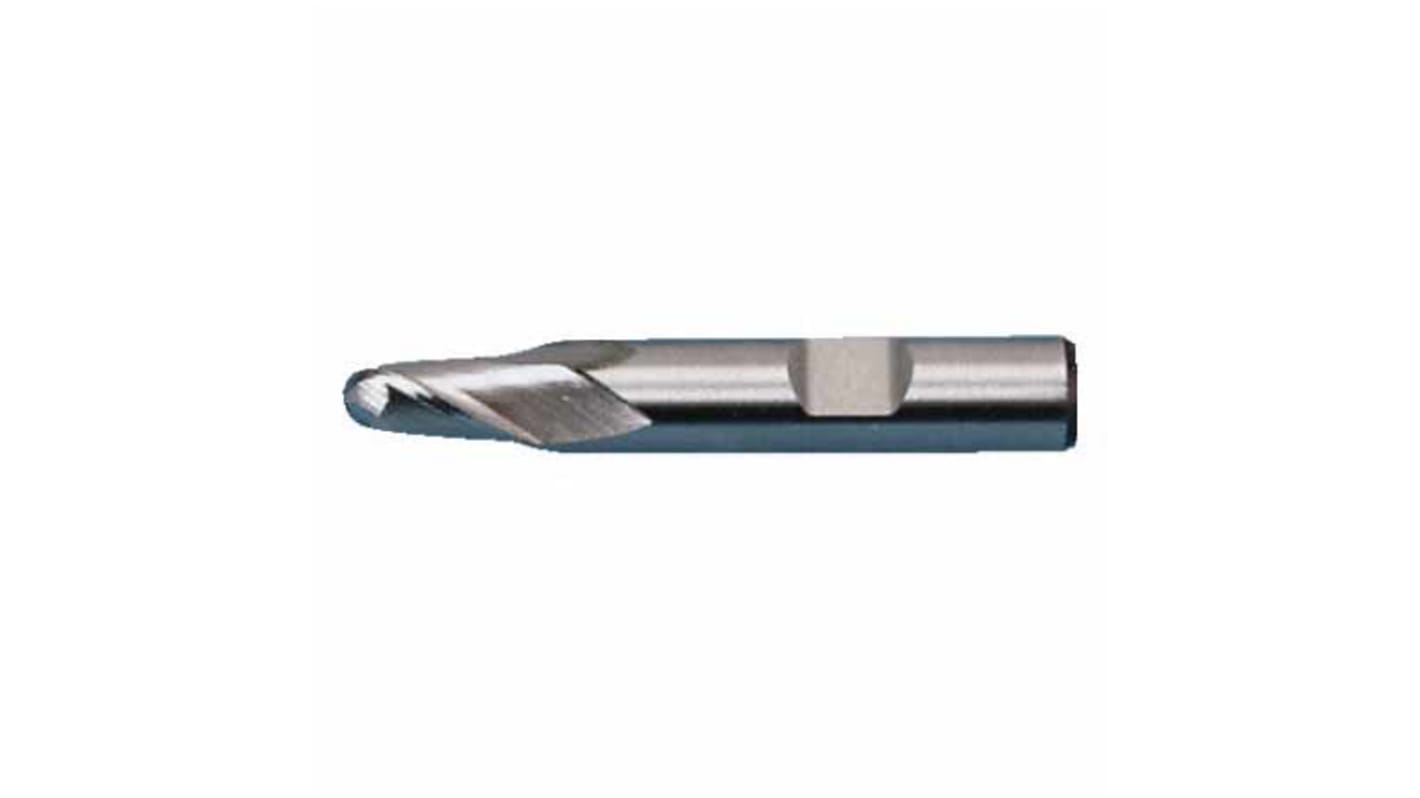

Image representative of range
Subtotal (1 unit)*
£38.18
(exc. VAT)
£45.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £38.18 |
*price indicative
- RS Stock No.:
- 300-2649
- Mfr. Part No.:
- C500-2,00
- Brand:
- Dormer
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Dormer | |
Shank Type | Plain | |
Cut Length | 4mm | |
Cutter Diameter | 2mm | |
Number of Flutes | 2 | |
Material | HSS-E | |
Overall Length | 48 mm | |
Shank Diameter | 6 mm | |
Diameter Tolerance | e8 | |
Select all | ||
---|---|---|
Brand Dormer | ||
Shank Type Plain | ||
Cut Length 4mm | ||
Cutter Diameter 2mm | ||
Number of Flutes 2 | ||
Material HSS-E | ||
Overall Length 48 mm | ||
Shank Diameter 6 mm | ||
Diameter Tolerance e8 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
HSCo short series ball nose slot drills C500
A range of short cobalt drills (steel quality HSCo 8% Co) with cylindrical shank and flat face.
The shank diameter tolerance class is H6 and the cutting diameter is E8.
The helix geometry is 30° right-handed; the cutting angle is 12° with nose end mill. Cutting takes place at the centre.
Specially designed for finishing work.
The shank diameter tolerance class is H6 and the cutting diameter is E8.
The helix geometry is 30° right-handed; the cutting angle is 12° with nose end mill. Cutting takes place at the centre.
Specially designed for finishing work.
Standard: DIN 327 D
Flatted Shank - HSCo
These slot drills have a parallel shank with flats, diameter tolerance e8 (undersize h10), 3 flute, short length, centre cutting, 30° spiral, HSCo 8%. They are to DIN327 form D. Applications include keyway and slot milling, and production of closed slots by plunge feeding.
