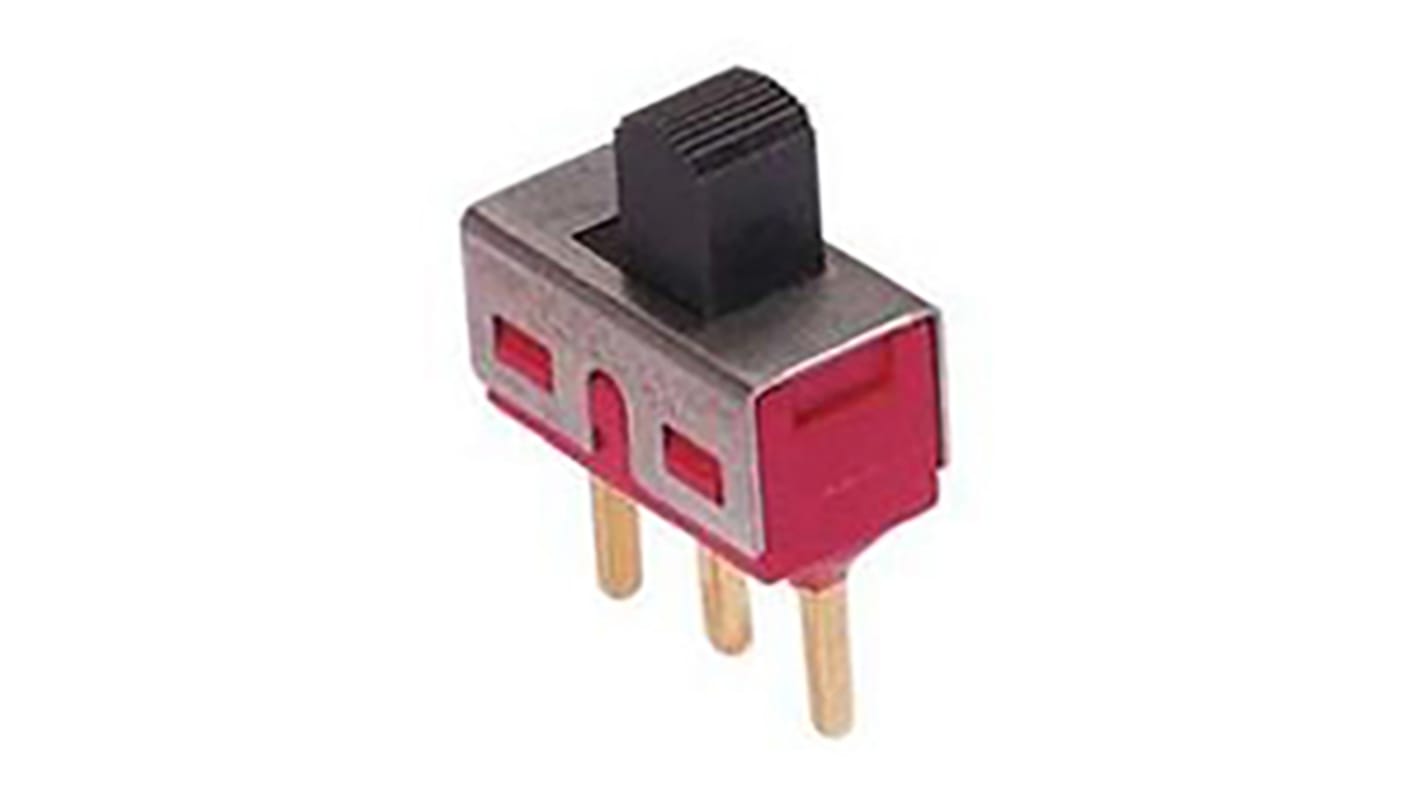

Grayhill PCB Slide Switch SPDT Latching 5 A Slide
- RS Stock No.:
- 878-0303
- Mfr. Part No.:
- 48ASSP1S1M1QBT
- Brand:
- Grayhill
Discontinued
- RS Stock No.:
- 878-0303
- Mfr. Part No.:
- 48ASSP1S1M1QBT
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB | |
| Switch Operation | Latching | |
| Contact Current Rating | 5 A | |
| Terminal Type | Solder Lug | |
| Actuator Type | Slide | |
| Length | 6.6mm | |
| Width | 19.56mm | |
| Depth | 11.43mm | |
| Dimensions | 6.6 x 19.56 x 11.43mm | |
| Contact Resistance | 10mΩ | |
| Voltage Rating | 28 V dc, 125 V ac, 250 V ac | |
| Mechanical Life | 30000 (Electrical)Cycles | |
| Actuator Material | Nylon | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Gold over Silver Plated Copper Alloy | |
| Operating Temperature Range | -30 → +85°C | |
| Minimum Operating Temperature | -30°C | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Contact Configuration SPDT | ||
Mounting Type PCB | ||
Switch Operation Latching | ||
Contact Current Rating 5 A | ||
Terminal Type Solder Lug | ||
Actuator Type Slide | ||
Length 6.6mm | ||
Width 19.56mm | ||
Depth 11.43mm | ||
Dimensions 6.6 x 19.56 x 11.43mm | ||
Contact Resistance 10mΩ | ||
Voltage Rating 28 V dc, 125 V ac, 250 V ac | ||
Mechanical Life 30000 (Electrical)Cycles | ||
Actuator Material Nylon | ||
Maximum Operating Temperature +85°C | ||
Contact Material Gold over Silver Plated Copper Alloy | ||
Operating Temperature Range -30 → +85°C | ||
Minimum Operating Temperature -30°C | ||
- COO (Country of Origin):
- CN
Grayhill 48A Series Slide Switches
The 48A series is a compact slide switch and offers the user a choice between SPDT and DPDT. Various actuator styles and termination are available.
Features:
Save space and weight
SPDT and DPDT circuitry
Choice of actuations and terminations
Operating temperature: -30 to +85 °C
Electrical life: 30,000 cycles at full load
Save space and weight
SPDT and DPDT circuitry
Choice of actuations and terminations
Operating temperature: -30 to +85 °C
Electrical life: 30,000 cycles at full load
