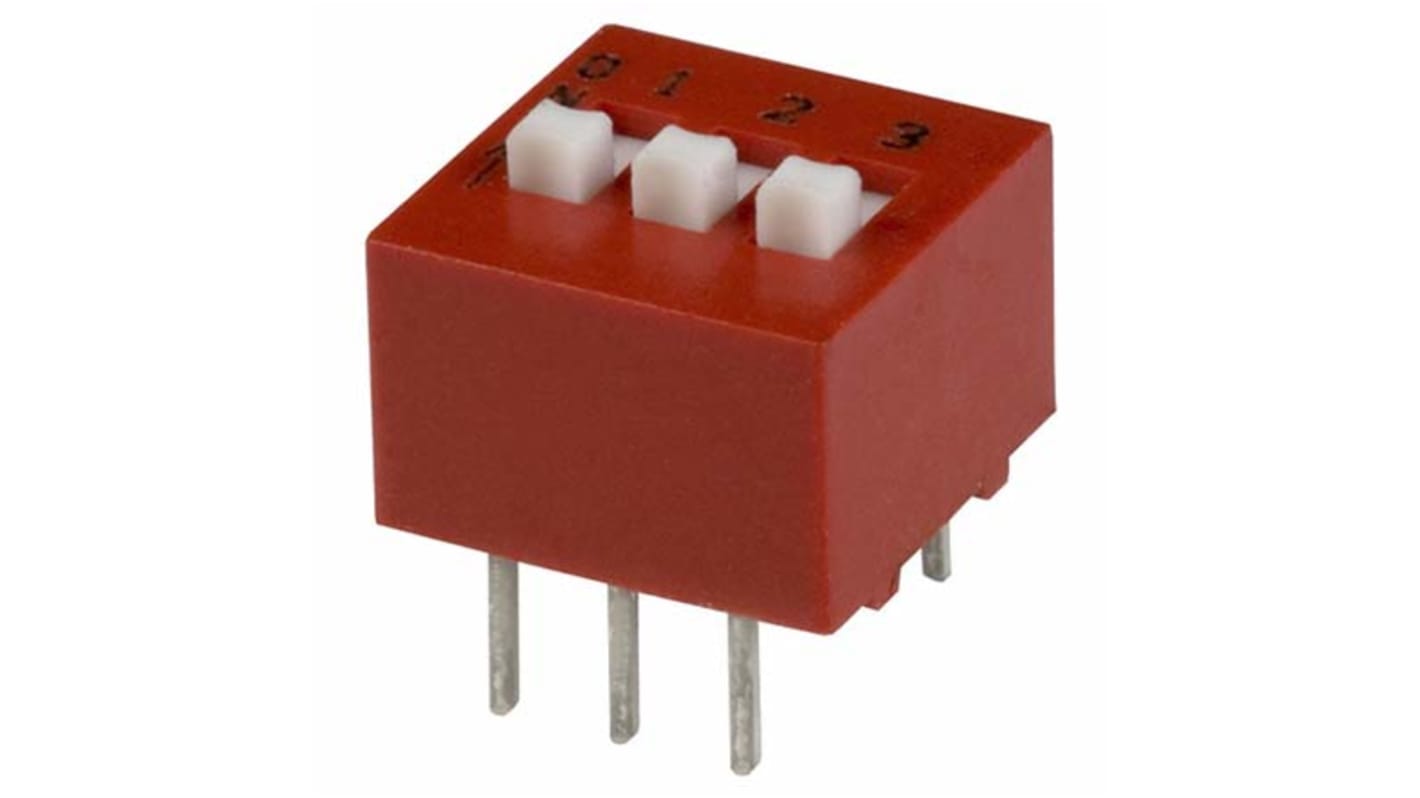

Grayhill PCB Slide Switch SPST 150 mA Slide
- RS Stock No.:
- 876-7543
- Mfr. Part No.:
- 78B03ST
- Brand:
- Grayhill
Discontinued
- RS Stock No.:
- 876-7543
- Mfr. Part No.:
- 78B03ST
- Brand:
- Grayhill
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Grayhill | |
| Contact Configuration | SPST | |
| Mounting Type | PCB | |
| Contact Current Rating | 150 mA | |
| Actuator Type | Slide | |
| Mechanical Life | 2000Operations | |
| Voltage Rating | 30 V dc, 50 V dc | |
| Maximum Operating Temperature | +85°C | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Gold over Nickel Plated Brass | |
| Select all | ||
|---|---|---|
Brand Grayhill | ||
Contact Configuration SPST | ||
Mounting Type PCB | ||
Contact Current Rating 150 mA | ||
Actuator Type Slide | ||
Mechanical Life 2000Operations | ||
Voltage Rating 30 V dc, 50 V dc | ||
Maximum Operating Temperature +85°C | ||
Operating Temperature Range -40 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Contact Material Gold over Nickel Plated Brass | ||
- COO (Country of Origin):
- US
Grayhill 78 Series Through-Hole DIP Switches
The 78 series of through-hole DIP switches from Grayhill are easy to install while being more convenient to use than pin headers and jumper blocks.
Features:
Available with SPST, 2PST, 3PST or 4PST Switch Options
Sealed Base Standard
Optional Top Tape Seal
Spring and Ball Contact
Available with SPST, 2PST, 3PST or 4PST Switch Options
Sealed Base Standard
Optional Top Tape Seal
Spring and Ball Contact
