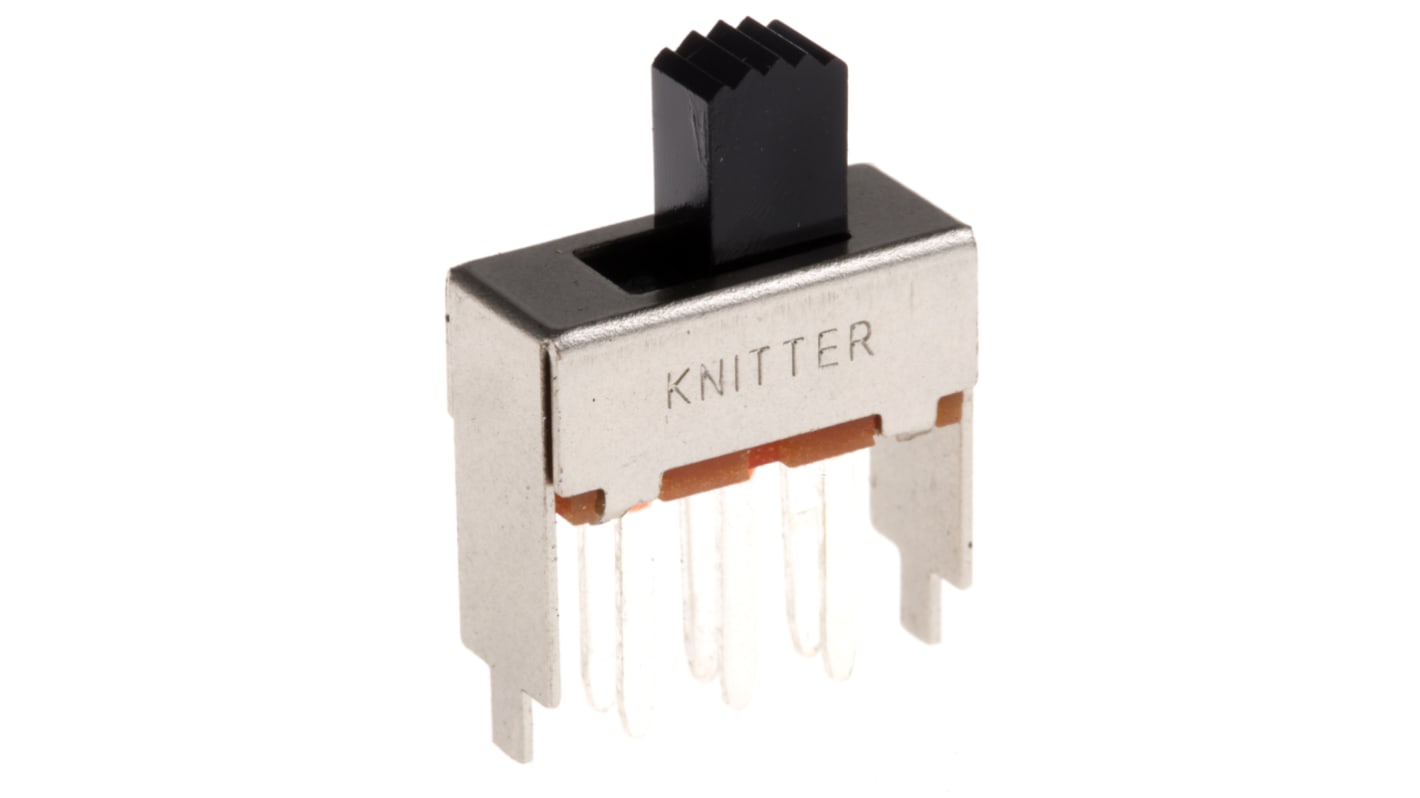

PCB Slide Switch Double Pole Double Throw (DPDT) Latching 350 mA@ 30 V dc Slide

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Knitter Switch Miniature Slide Switches - MFP Series

PCB mount, Break before make
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.

//media.rs-online.com/t_line/LK134010-12.gif
Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 350 mA@ 30 V dc
Terminal Type Through Hole
Actuator Type Slide
Contact Resistance 20mΩ
Mechanical Life 10000Operations
Minimum Operating Temperature -20°C
Maximum Operating Temperature +85°C
Contact Material Silver over Nickel Plated Copper Alloy
Operating Temperature Range -20 → +85°C
414 In stock for FREE next working day delivery
Price Each
£ 2.45
(exc. VAT)
£ 2.94
(inc. VAT)
Units
Per unit
1 - 24
£2.45
25 - 49
£2.17
50 - 99
£1.12
100 - 249
£0.98
250 +
£0.81
