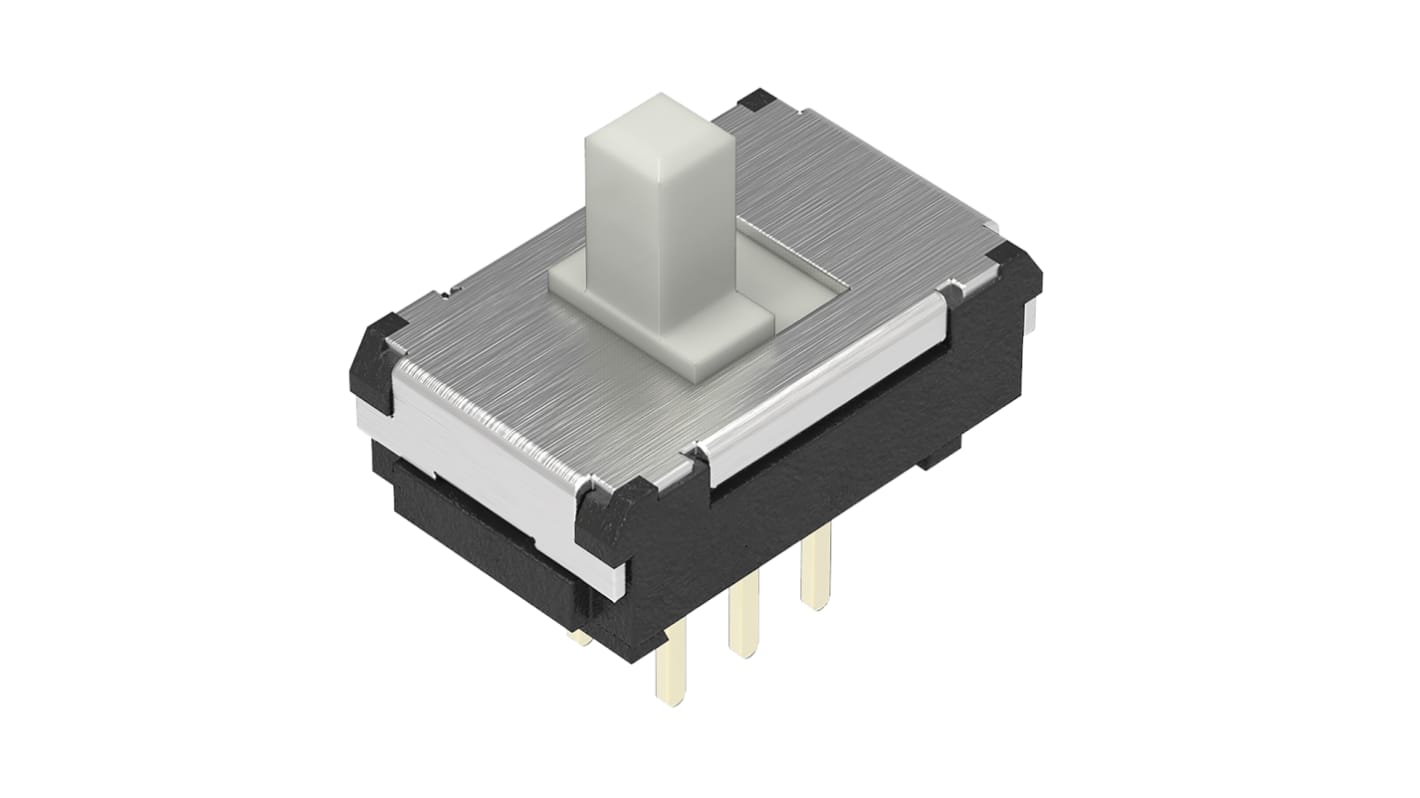

Through Hole Slide Switch Double Pole Double Throw (DPDT) Latching 100 mA Slide

  • RS Stock No. 123-8951
  • Mfr. Part No. SSSS922500
  • Brand Alps Alpine
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Alps SSSS Series Slide Switch

Alps SSSS series of slide switches are an excellent choice for compact & high density portable devices. The SSSS series can be simply mounted via a snap-in method, making installation quick and keeping maintainence downtime at a low.


Features and Benefits

Offered in both horizontal & vertical actuator options.
2 mm travel slide switch.
Offered with a 2 mm long actuator.
10,000 cycle mean time before failure (MTBF).

Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Mounting Type Through Hole
Switch Operation Latching
Contact Current Rating 100 mA
Terminal Type Solder
Actuator Type Slide
Length 11.5mm
Width 7.2mm
Depth 9.5mm
Dimensions 11.5 x 7.2 x 9.5mm
Contact Resistance 30 (Initial) mΩ, 80 (After Lifetime) mΩ
Operating Temperature Range -40 → +85°C
Voltage Rating 12V dc
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Available to back order for despatch 20/08/2020, delivery within 5 working days
Price Each (In a Pack of 5)
£ 1.326
(exc. VAT)
£ 1.591
(inc. VAT)
Units
Per unit
Per Pack*
5 - 20
£1.326
£6.63
25 - 45
£1.278
£6.39
50 - 95
£1.232
£6.16
100 - 245
£1.19
£5.95
250 +
£1.15
£5.75
*price indicative
