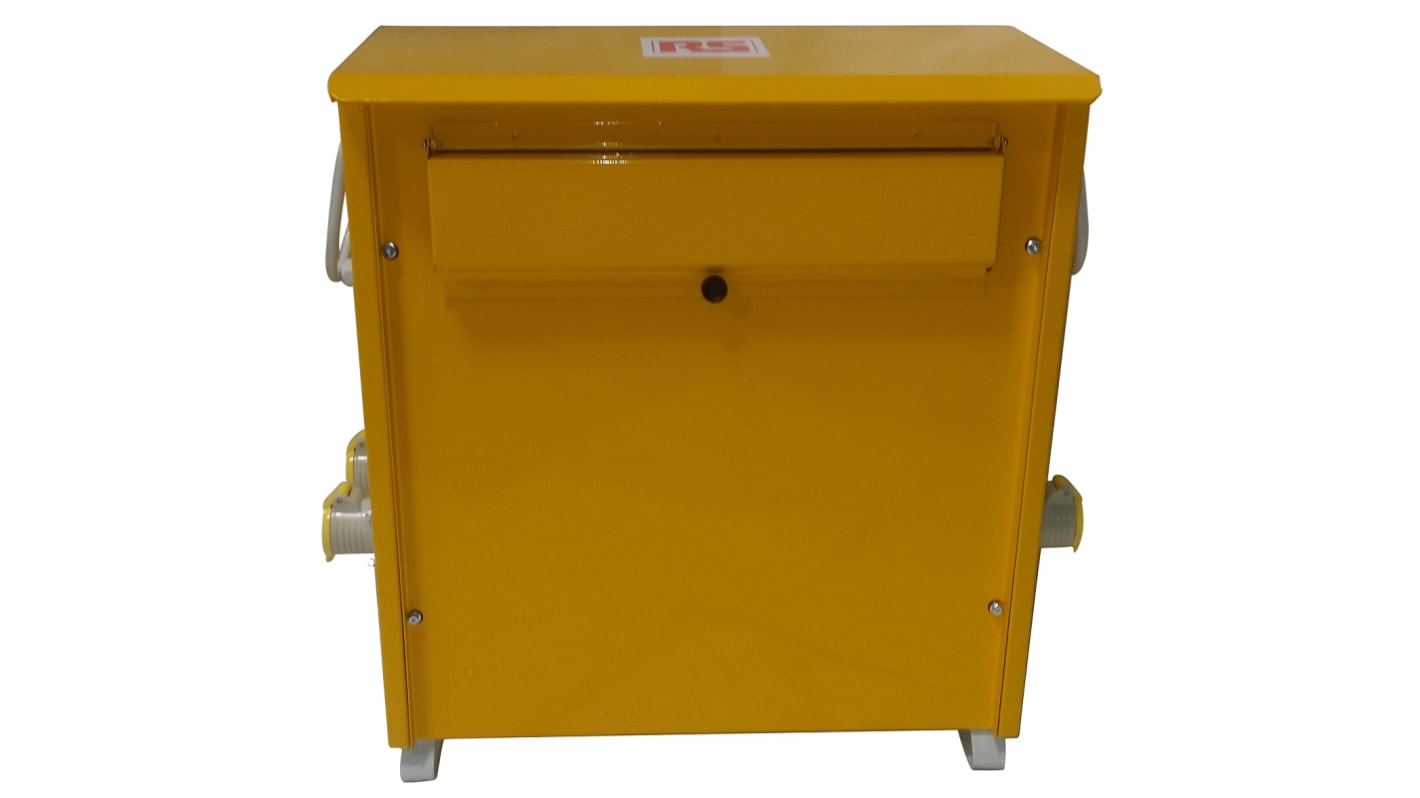

RS PRO 7.5kVA Site Transformer, 400V Primary, 110V Secondary, 16 A, 32 A O/P

View all Site Transformers
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
124-9719
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Primary Voltage Rating

400V

Secondary Voltage Rating

110V

Power Rating

7.5kVA

Output Current

16 A, 32 A

Socket Type

BS EN 60309

Length

260mm

Width

675mm

Depth

620mm

Dimensions

260 x 675 x 620mm

Mounting Type

Base Mount, Stand Alone

Maximum Operating Frequency

60Hz

Minimum Operating Frequency

50Hz

COO (Country of Origin):
GB

RS Pro Three Phase Site Transformer Three Phase 400V ac- Input -110Vac Output


RS Pro 3 phase continuous site transformer is high-quality UK manufactured, designed to ensure safe electrical distribution. These slimline site transformers are great for projects where space is a premium. They are fully certified to offer IP44 protection. Cables enter and exit at the side which helps reduce trip hazards. All outputs, including the 16 Amp lighting outlets, are individually protected by adequately rated MCBS. 7.5 kVA ,400 V ac input – 110 V ac output

Features


High-quality UK Manufactured
Slimline
4 x 16 Amp, 2x 32 Amp, 2 x 16 Amp Outlets (BSEN60309) designed for to serve onsite lighting applications
Supplied complete with drop-down handles fully certified to their SWL
