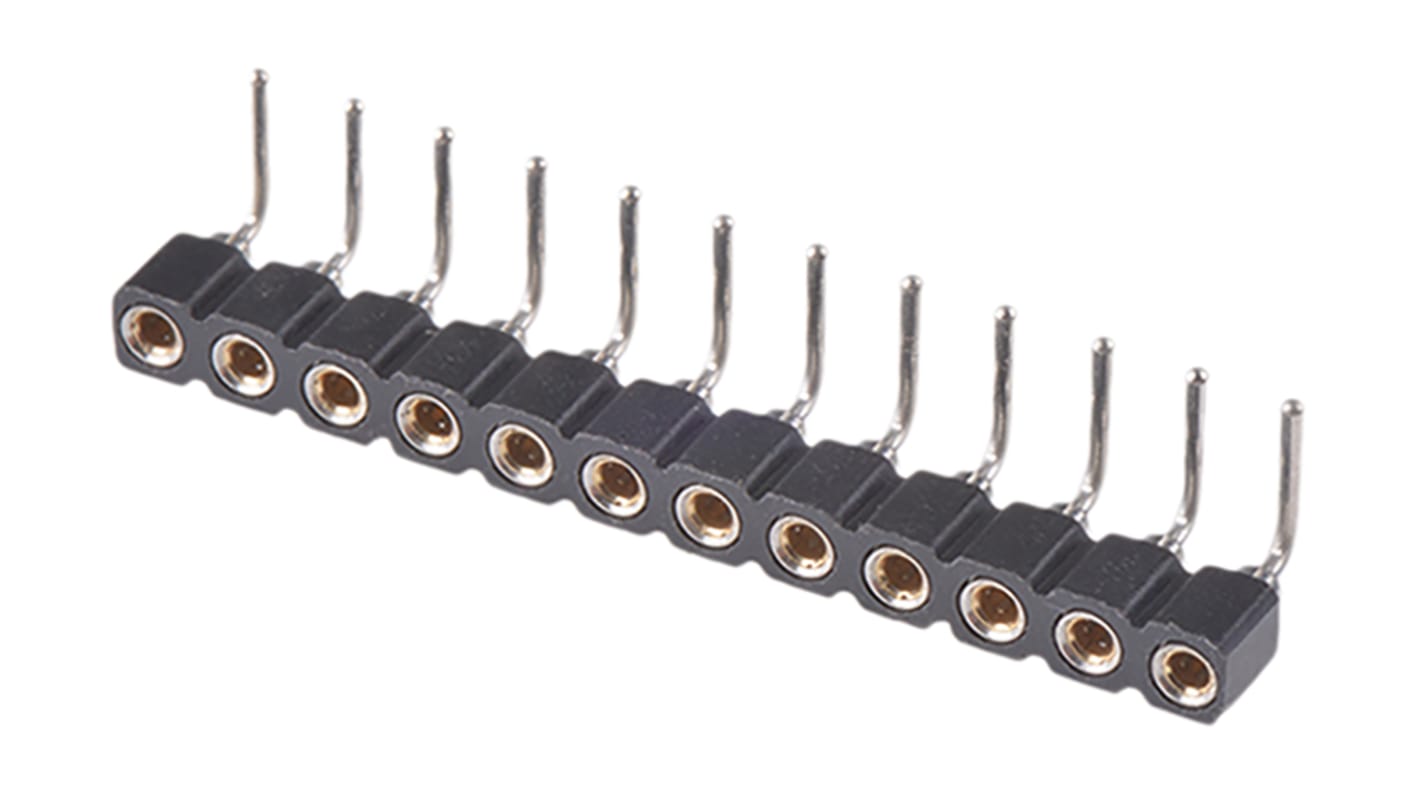

12 Way Preci-Dip Right Angle Through Hole 2.54mm SIL Socket, Solder, 3A 100 V ac, 150 V dc

  • RS Stock No. 701-9581
  • Mfr. Part No. 801-87-012-20-002101
  • Brand Preci-Dip
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

2.54 mm IC Sockets Ø 0.76 mm pin

Swiss Preci-dip Socket Connectors both Through Hole and SMD mountings.

Sockets have Tin plated Brass sleeves with Flash Gold plated Beryllium Copper (4 finger) contact clips
Right Angle SMD mounting are cranked pin type
Straight SMD mounting are Gull-Wing type
80*-**-***-10-012*** Series are Low Profile straight headers

Standards

UL 94V-0

Specifications
Attribute Value
Number of Contacts 12
Contact Material Beryllium Copper, Brass
Contact Plating Gold, Tin
Pitch 2.54mm
Orientation Right Angle
Termination Method Solder
Mounting Type Through Hole
Housing Material Glass Fibre Reinforced PCT
Current Rating 3A
Voltage Rating 100 V ac, 150 V dc
Dimensions 30.48 x 2.95 x 2.54mm
Depth 2.54mm
Length 30.48mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -55°C
Width 2.95mm
