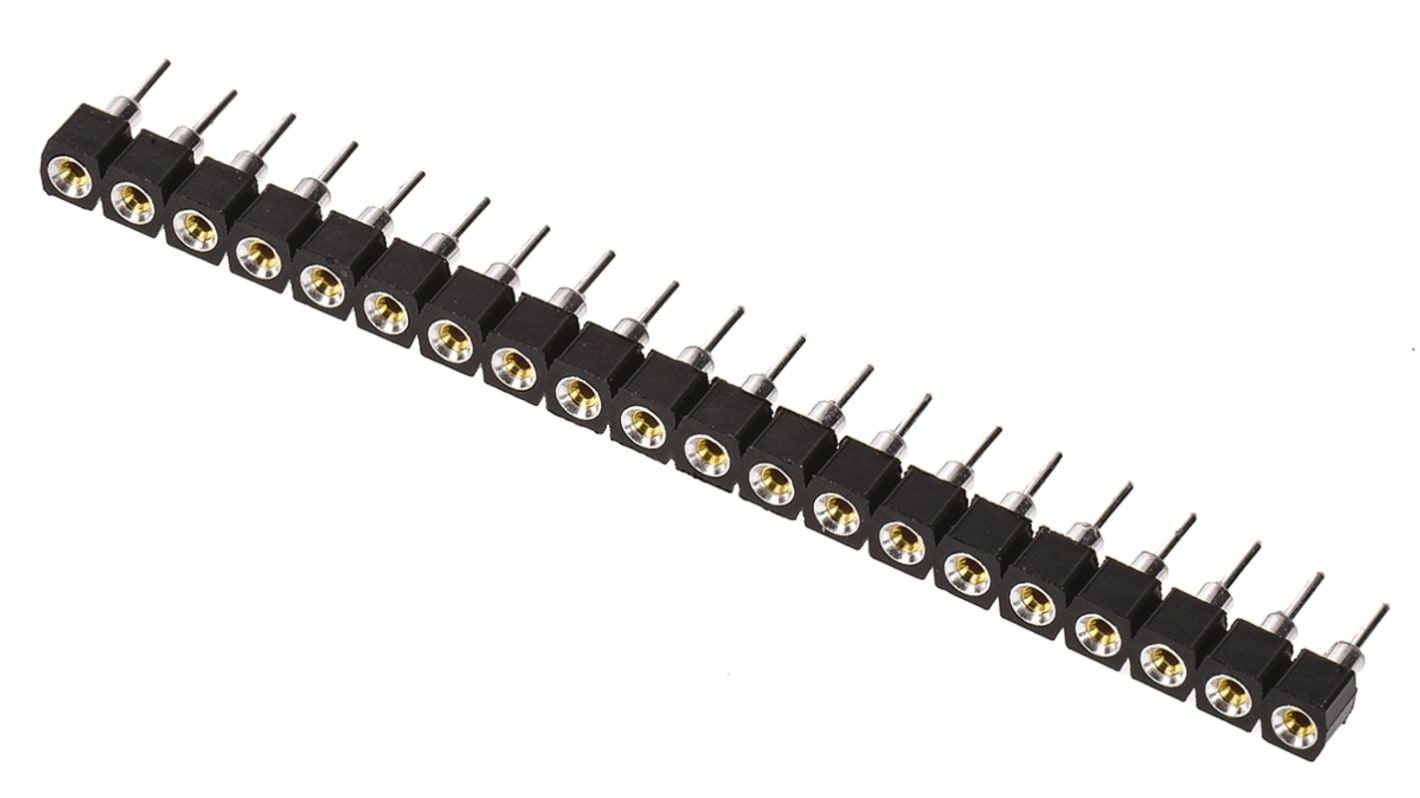

20 Way TE Connectivity Straight Through Hole 2.54mm SIL Socket, Solder, 3A
- RS Stock No.:
- 163-9959
- Mfr. Part No.:
- 2-1571994-0
- Brand:
- TE Connectivity
Discontinued
- RS Stock No.:
- 163-9959
- Mfr. Part No.:
- 2-1571994-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 20 | |
| Contact Material | Beryllium Copper | |
| Contact Plating | Gold over Nickel | |
| Orientation | Straight | |
| Pitch | 2.54mm | |
| Termination Method | Solder | |
| Mounting Type | Through Hole | |
| Housing Material | PET | |
| Current Rating | 3A | |
| Dimensions | 50.8 x 4.57 x 2.54mm | |
| Depth | 2.54mm | |
| Length | 50.8mm | |
| Width | 4.57mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 20 | ||
Contact Material Beryllium Copper | ||
Contact Plating Gold over Nickel | ||
Orientation Straight | ||
Pitch 2.54mm | ||
Termination Method Solder | ||
Mounting Type Through Hole | ||
Housing Material PET | ||
Current Rating 3A | ||
Dimensions 50.8 x 4.57 x 2.54mm | ||
Depth 2.54mm | ||
Length 50.8mm | ||
Width 4.57mm | ||
- COO (Country of Origin):
- CH
SIP Sockets
A range of TE Connectivity Diplomate SIP Sockets with Gold or Tin plated contact area.
