Patlite LR6 Series Blue, Magenta, Red, Amber, Clear, White, Yellow, Green Signal Tower Buzzer, 5 Lights 24V Pole

RS Stock No.:: 170-1804
Mfr. Part No.:: LR6-402PJNW-RYGB
Brand:: Patlite

Patlite LR6 Series Blue, Magenta, Red, Amber, Clear, White, Yellow, Green Signal Tower Buzzer, 5 Lights 24V Pole

Subtotal (1 unit)*

£172.90

(exc. VAT)

£207.48

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 02 November 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£172.90

*price indicative

RS Stock No.:: 170-1804
Mfr. Part No.:: LR6-402PJNW-RYGB
Brand:: Patlite

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Patlite
	Product Type	Signal Tower
	Minimum Sound Level	85dB
	Series	LR6
	Number of Light Elements	5
	Lens Colour	Blue, Magenta, Red, Amber, Clear, White, Yellow, Green
	Bulb Type	LED
	Sounder Type	Buzzer
	Light Effect	Flashing
	Mount Type	Pole
	Multifunction	Yes, Yes
	Terminal Type	Terminal Block
	Maximum Supply Voltage	24V
	Current Type	DC
	Minimum Operating Temperature	-20°C
	Height	549mm
	Maximum Operating Temperature	50°C
	Base Diameter	60mm
	Hazardous Area Certification	No
	Connection Cable Length	1m
	Standards/Approvals	KC (KN 61000-6-4,KN 61000-6-2), CSA-C22.2 No. 14, UL Recognized Component (File No.E215660), FCC Part 15 Subpart B Class A, UL 508, EMC (EN 61000-6-4,EN 61000-6-2), RoHS (EN 50581)
	IP Rating	IP65
	Maximum Sound Level	90dB
	Current Consumption	45mA
	Housing Colour	Off-White

	Select all
	Brand Patlite
	Product Type Signal Tower
	Minimum Sound Level 85dB
	Series LR6
	Number of Light Elements 5
	Lens Colour Blue, Magenta, Red, Amber, Clear, White, Yellow, Green
	Bulb Type LED
	Sounder Type Buzzer
	Light Effect Flashing
	Mount Type Pole
	Multifunction Yes, Yes
	Terminal Type Terminal Block
	Maximum Supply Voltage 24V
	Current Type DC
	Minimum Operating Temperature -20°C
	Height 549mm
	Maximum Operating Temperature 50°C
	Base Diameter 60mm
	Hazardous Area Certification No
	Connection Cable Length 1m
	Standards/Approvals KC (KN 61000-6-4,KN 61000-6-2), CSA-C22.2 No. 14, UL Recognized Component (File No.E215660), FCC Part 15 Subpart B Class A, UL 508, EMC (EN 61000-6-4,EN 61000-6-2), RoHS (EN 50581)
	IP Rating IP65
	Maximum Sound Level 90dB
	Current Consumption 45mA
	Housing Colour Off-White

COO (Country of Origin):: ID

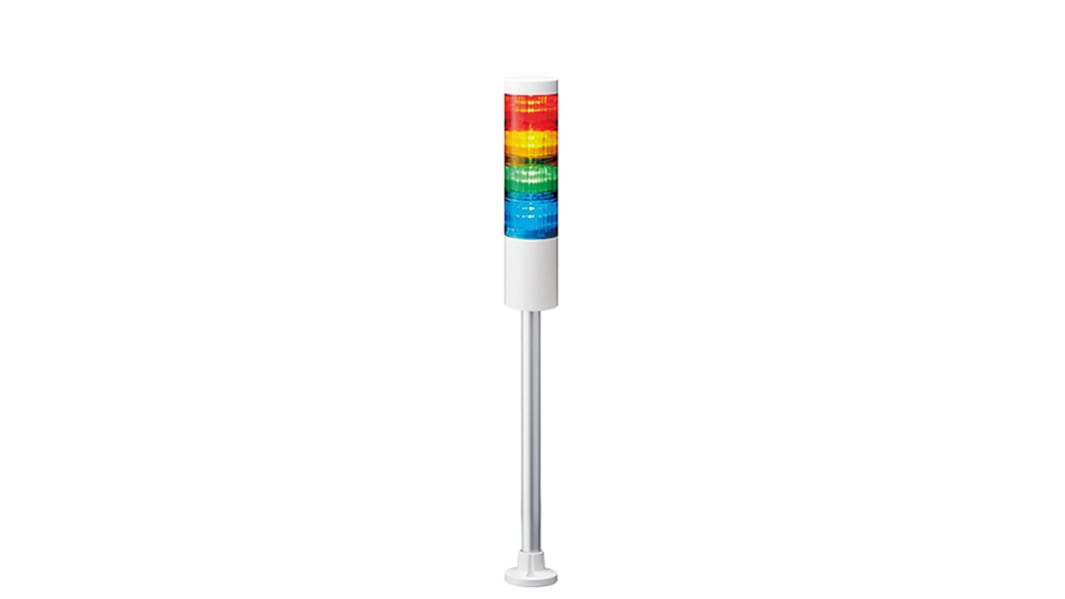

Patlite Single Tower Light

The Patlite LR LED pre-configured beacon single tower light is featuring a modular design. The product has an off-white body colour. It has a supply voltage of 24VDC. The tower light is base mount. It has red, amber, green and blue LEDs. A sleek, smooth form factor and enhanced body construction for performance in harsh environments.

Features and Benefits

• Modular "Twist and Lock" system to easily customize and reconfigure LED and sound modules

• No Flashing/Buzzer

• Pole mount with Circular Bracket/Cable

• Re-designed lens and improved module construction delivering bright, even light for visibility from further distances• (2000mcd output)

• Re-engineered, completely enclosed sound module, maintains substantial water and dust protection while producing loud, Omni-directional sound

• Service temperature ranges between -20°C and 50°C

• Φ60 base

Certifications

• CSA-C22.2 No.14• EMC Directive (EN 61000-6-4, EN 61000-6-2)• FCC Part 15 Subpart B Class A• IP65• KC (KN 61000-6-4, KN 61000-6-2)• Low-voltage Directive (IEC /EN 60947-5-1, EN62471)• UL 508
