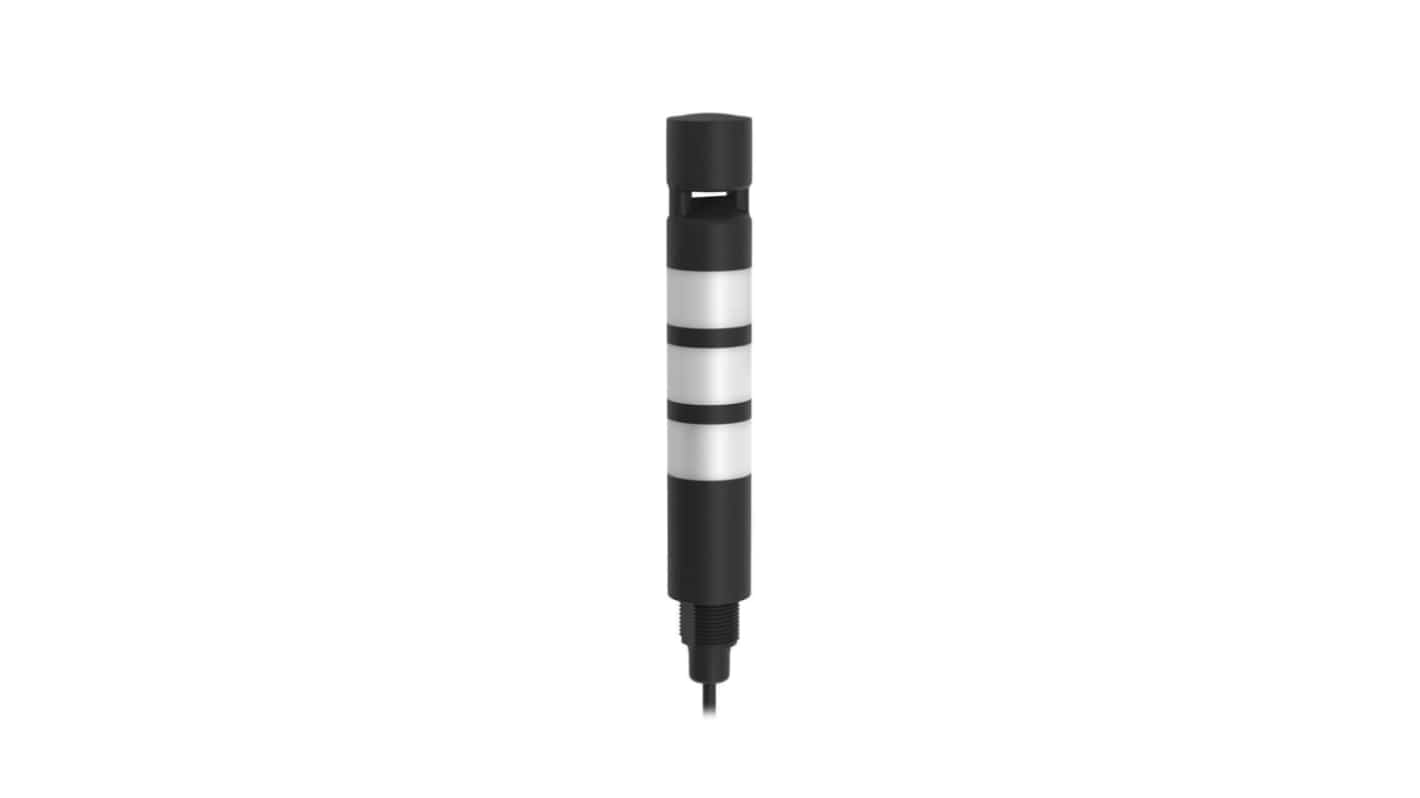

Banner TL30 Series Yellow, Red, Green Indicator Lamp Continuous, 3 Lights 30V Base
- RS Stock No.:
- 294-881
- Mfr. Part No.:
- TL30BGYRXXAXC1
- Brand:
- Banner
Subtotal (1 unit)*
£153.61
(exc. VAT)
£184.33
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £153.61 |
*price indicative
- RS Stock No.:
- 294-881
- Mfr. Part No.:
- TL30BGYRXXAXC1
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Indicator Lamp | |
| Series | TL30 | |
| Number of Light Elements | 3 | |
| Lens Colour | Yellow, Red, Green | |
| Bulb Type | LED | |
| Mount Type | Base | |
| Sounder Type | Continuous | |
| Maximum Supply Voltage | 30V | |
| Current Type | DC | |
| Minimum Operating Temperature | -40°C | |
| Height | 190.6mm | |
| Sound Level at 1m | 90dB | |
| Base Diameter | 30mm | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | CE, RoHS, UKCA | |
| Connection Cable Length | 1.2m | |
| Hazardous Area Certification | No | |
| IP Rating | IP65 | |
| Current Consumption | 40mA | |
| Maximum Sound Level | 90dB | |
| Housing Colour | Black | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Indicator Lamp | ||
Series TL30 | ||
Number of Light Elements 3 | ||
Lens Colour Yellow, Red, Green | ||
Bulb Type LED | ||
Mount Type Base | ||
Sounder Type Continuous | ||
Maximum Supply Voltage 30V | ||
Current Type DC | ||
Minimum Operating Temperature -40°C | ||
Height 190.6mm | ||
Sound Level at 1m 90dB | ||
Base Diameter 30mm | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals CE, RoHS, UKCA | ||
Connection Cable Length 1.2m | ||
Hazardous Area Certification No | ||
IP Rating IP65 | ||
Current Consumption 40mA | ||
Maximum Sound Level 90dB | ||
Housing Colour Black | ||
- COO (Country of Origin):
- MX
The Banner Basic Tower Light offers a versatile and robust solution for signalling and equipment status indication in various industrial environments. Its compact 30 mm diameter design ensures easy integration into existing setups, while the multi-colour illumination provides clear and intuitive operator guidance. The rugged construction along with a variety of segment options allows for tailored visibility according to specific operational needs. Operating over a wide voltage range from 12 V dc to 30 V dc, this tower light is engineered to maintain performance and reliability under pressure. The seamless installation requires no assembly, making it ideal for quick deployments and ensuring consistent functionality in high-demand scenarios.
Built to withstand harsh conditions with an IP65 environmental rating
Quick disconnect options streamline maintenance and connectivity
Easy installation with mounting nut and gasket included
Flexible wiring design accommodates PNP or NPN setups ensuring compatibility
