The WERMA KombiSIGN 70 modular stacking signal tower is an ideal solution to the increasing requirement for safety, machine productivity and reduced downtime. The modular design of these stacking towers enables quick and easy installation. Each KombiSIGN module is equipped with a bayonet fixing with integral contact system. Simply align the corresponding white marks and gently twist to lock them in place.

• Suitable for machine and manual Andon indication
• Modular system allows a completely free combination of optical and audible signal elements
• Mechanical and electrical connection of the elements in the space of seconds using a bayonet connection system
• Completely safe element changes (contact-voltage proof) without the need for tools
• Protection rating IP54 for use in normal conditions
• Up to 5 elements can be mounted on a terminal base
• Flexible combination of optical and audible elements
• Optical isolation due to O-ring seal stopping illumination of adjacent element
• Operating voltage for the continuous incandescent element is dependant on bulb fitted
• LED EVS elements have an extremely bright, random sequence of light to immediately grab attention
• Ultra-bright elements are up to 20 times brighter than conventional LED beacons. Intelligent electronics ensure operation at maximum brightness
• Vocal element plays customer specific audio files in mp3 format (sounds, alarms, music or spoken word)
• Operating temperature range is -20 to +50 °C
• Polyamide body with polycarbonate lenses, 70 mm diameter

• Seven colours in one beacon
• Different colours can be triggered via the pins in the terminal element
• Positive and negative control logic
• The three basic colours (red/yellow/green) can be triggered using only two PLC outputs
• High light intensity

Lamps are not supplied and must be purchased separately. Not compatible with KombiSIGN 71.

UL listed, CSA, VDE

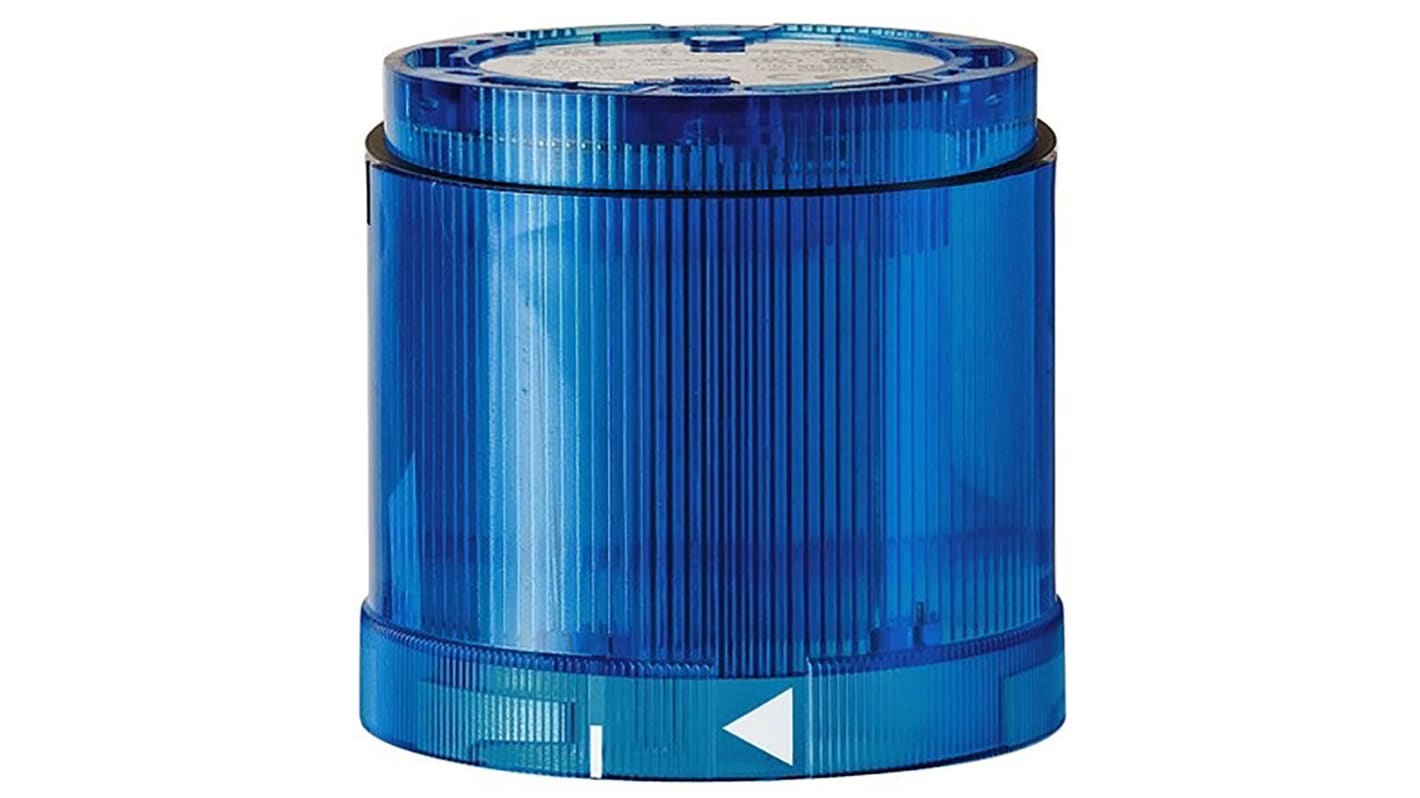

Use this blue WERMA beacon unit to indicate the status of machine processes. It's compatible with other beacons from the KombiSIGN 70 series, allowing you to create a customised signal tower. The bayonet connection method ensures quick and simple assembly without the need for specialised tools. Thanks to its PC lens, it's resistant to impact for durability in harsh environments.

• Blinking light effect produces an urgent signal
• Wide operating temperature range of -20°C to +50°C for use in harsh environments
• IP54 rating indicates protection against limited amounts of dust and water sprays

• Construction sites
• Pharmaceutical applications
• Cleanrooms
• Healthcare operations
• Shipping yards

This beacon unit has compact dimensions of 66 (height) x 70mm (diameter), so it will take up minimal space.
