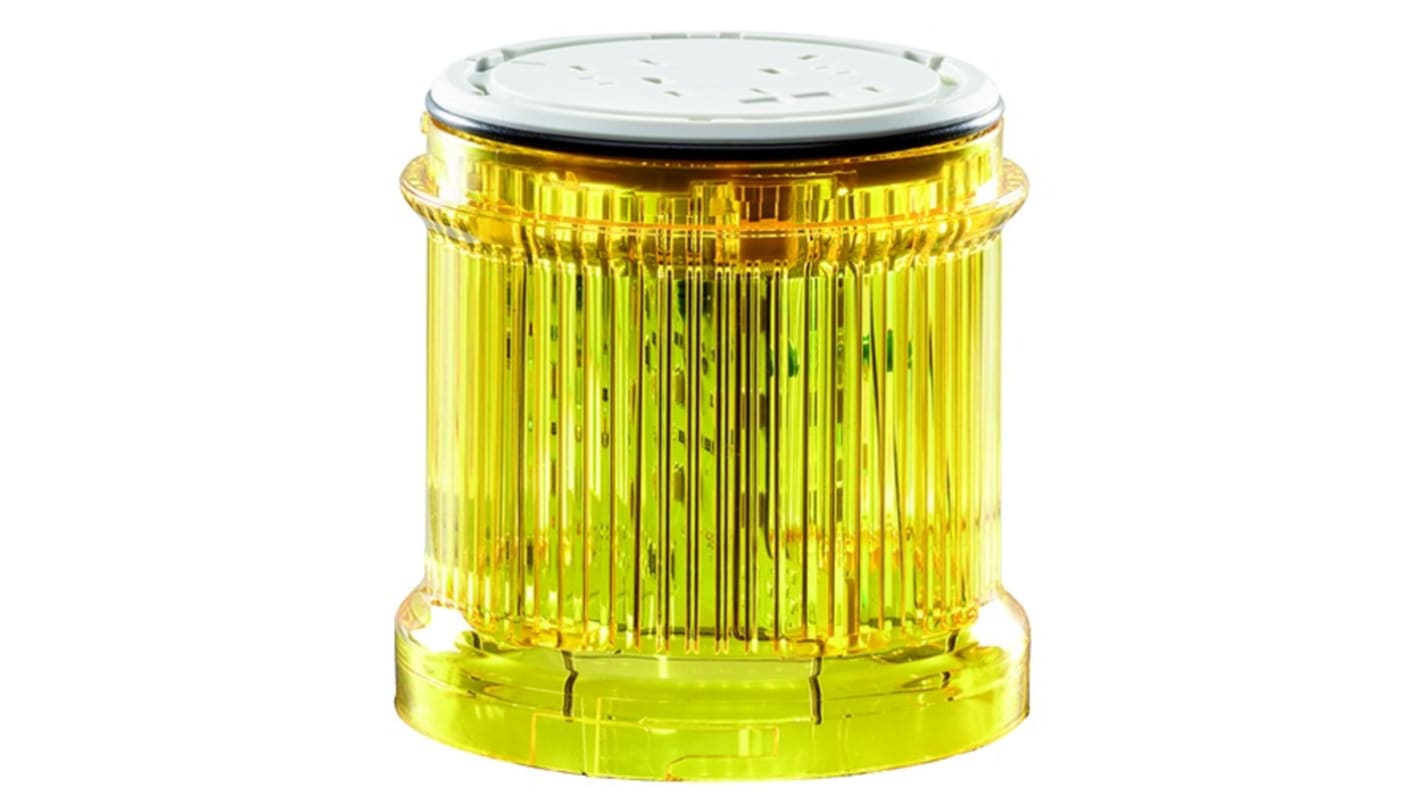

Eaton Yellow Series Yellow Continuous Effect Light Module, LED Bulb 120V, AC, IP66
- RS Stock No.:
- 272-0695
- Mfr. Part No.:
- 171471 SL7-L120-Y
- Brand:
- Eaton
Subtotal (1 unit)*
£83.52
(exc. VAT)
£100.22
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.52 |
*price indicative
- RS Stock No.:
- 272-0695
- Mfr. Part No.:
- 171471 SL7-L120-Y
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Light Module | |
| Series | Yellow | |
| Component Type | Continuous Light Module | |
| Multifunction | No | |
| Current Type | AC | |
| Mount Type | Base | |
| Light Effect | Continuous | |
| Current Consumption | 0.027, 0.028A | |
| Lens Colour | Yellow | |
| Lamp Included | Yes | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 120V | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 60°C | |
| Height | 73mm | |
| Standards/Approvals | CE, CSA, IEC/EN 60529, IEC/EN 60947-5-1, UL | |
| Base Diameter | 73mm | |
| Hazardous Area Certification | No | |
| IP Rating | IP66 | |
| Housing Colour | Black | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Light Module | ||
Series Yellow | ||
Component Type Continuous Light Module | ||
Multifunction No | ||
Current Type AC | ||
Mount Type Base | ||
Light Effect Continuous | ||
Current Consumption 0.027, 0.028A | ||
Lens Colour Yellow | ||
Lamp Included Yes | ||
Bulb Type LED | ||
Maximum Supply Voltage 120V | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 60°C | ||
Height 73mm | ||
Standards/Approvals CE, CSA, IEC/EN 60529, IEC/EN 60947-5-1, UL | ||
Base Diameter 73mm | ||
Hazardous Area Certification No | ||
IP Rating IP66 | ||
Housing Colour Black | ||
RoHS Status: Exempt
The Eaton Moeller series SL4 continuous light module is made up of polycarbonate material. It has black enclosure colour and rated impulse withstand voltage is 4000 Vac. That has shock resistance and climatic proof.
Pollution degree 3
360 degree radiation angle
Note
Eaton formerly known as Moeller
