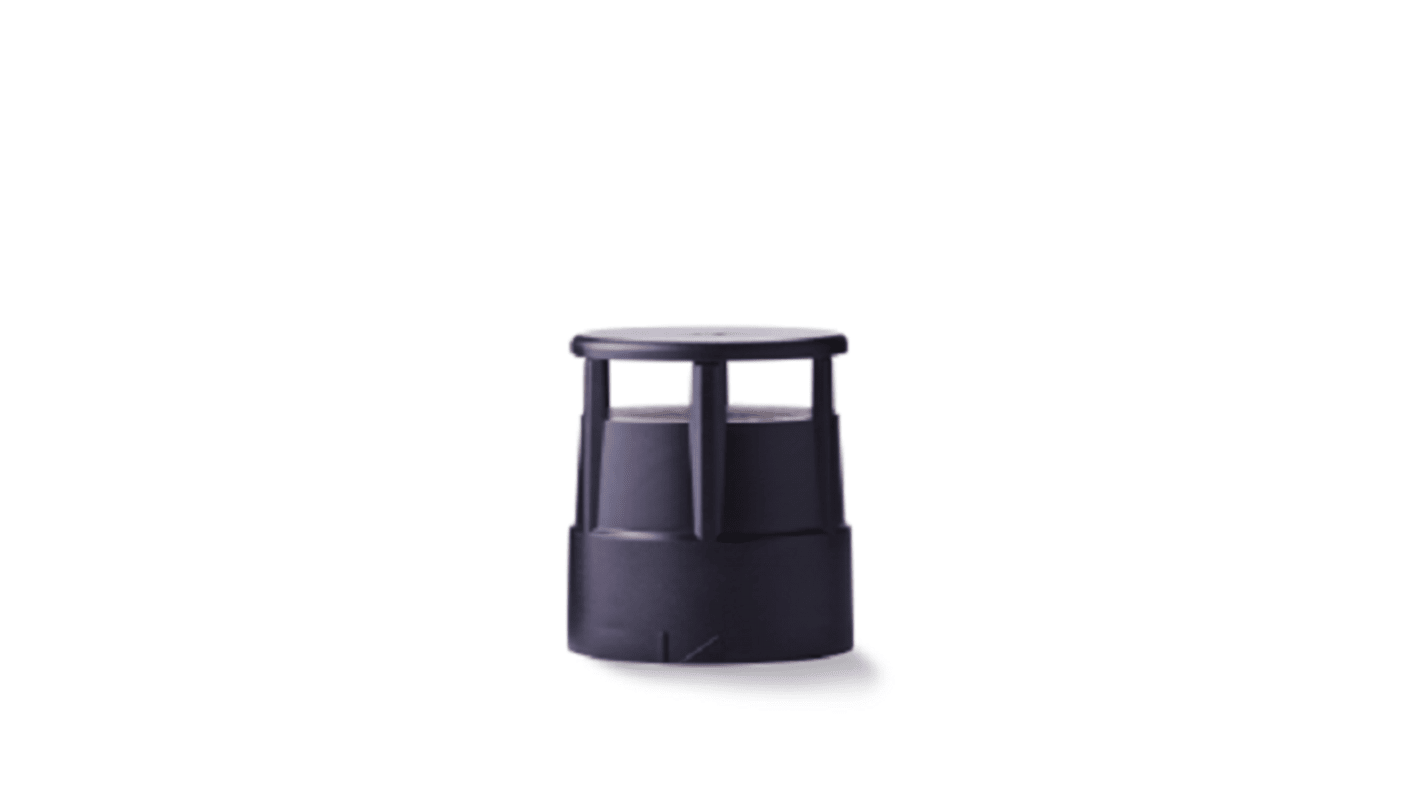

AUER Signal CT5ZM Series Continuous, Double Flashing, Flashing Effect Sounder, LED Bulb 24V dc, DC, IP65
- RS Stock No.:
- 247-2651
- Distrelec Article No.:
- 302-54-498
- Mfr. Part No.:
- 915510005
- Brand:
- AUER Signal
Subtotal (1 unit)*
£44.72
(exc. VAT)
£53.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.72 |
*price indicative
- RS Stock No.:
- 247-2651
- Distrelec Article No.:
- 302-54-498
- Mfr. Part No.:
- 915510005
- Brand:
- AUER Signal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AUER Signal | |
| Series | CT5ZM | |
| Product Type | Sounder | |
| Component Type | Buzzer Module | |
| Multifunction | Yes | |
| Current Type | DC | |
| Mount Type | Horizontal, Screw, Vertical | |
| Light Effect | Continuous, Double Flashing, Flashing | |
| Lamp Included | Yes | |
| Terminal Type | M12 | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Sound Level | 95dB | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Hazardous Area Certification | No | |
| Base Diameter | 50mm | |
| IP Rating | IP65 | |
| Housing Colour | Black | |
| Select all | ||
|---|---|---|
Brand AUER Signal | ||
Series CT5ZM | ||
Product Type Sounder | ||
Component Type Buzzer Module | ||
Multifunction Yes | ||
Current Type DC | ||
Mount Type Horizontal, Screw, Vertical | ||
Light Effect Continuous, Double Flashing, Flashing | ||
Lamp Included Yes | ||
Terminal Type M12 | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Sound Level 95dB | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Hazardous Area Certification No | ||
Base Diameter 50mm | ||
IP Rating IP65 | ||
Housing Colour Black | ||
The AUER Signal CT5ZM Piezo buzzer module used for Module-Compete 50 modular signal tower. And it is also used for mounting at the top of a signal tower. One of eight tones can be selected with a dip switch.
Volume 95 dB
Duty cycle 100 %
Operating temperature -30 °C / +60 °C
Degree of protection IP65 & UL Type 4/4x
Impact resistance IK07
Weight 27 g
