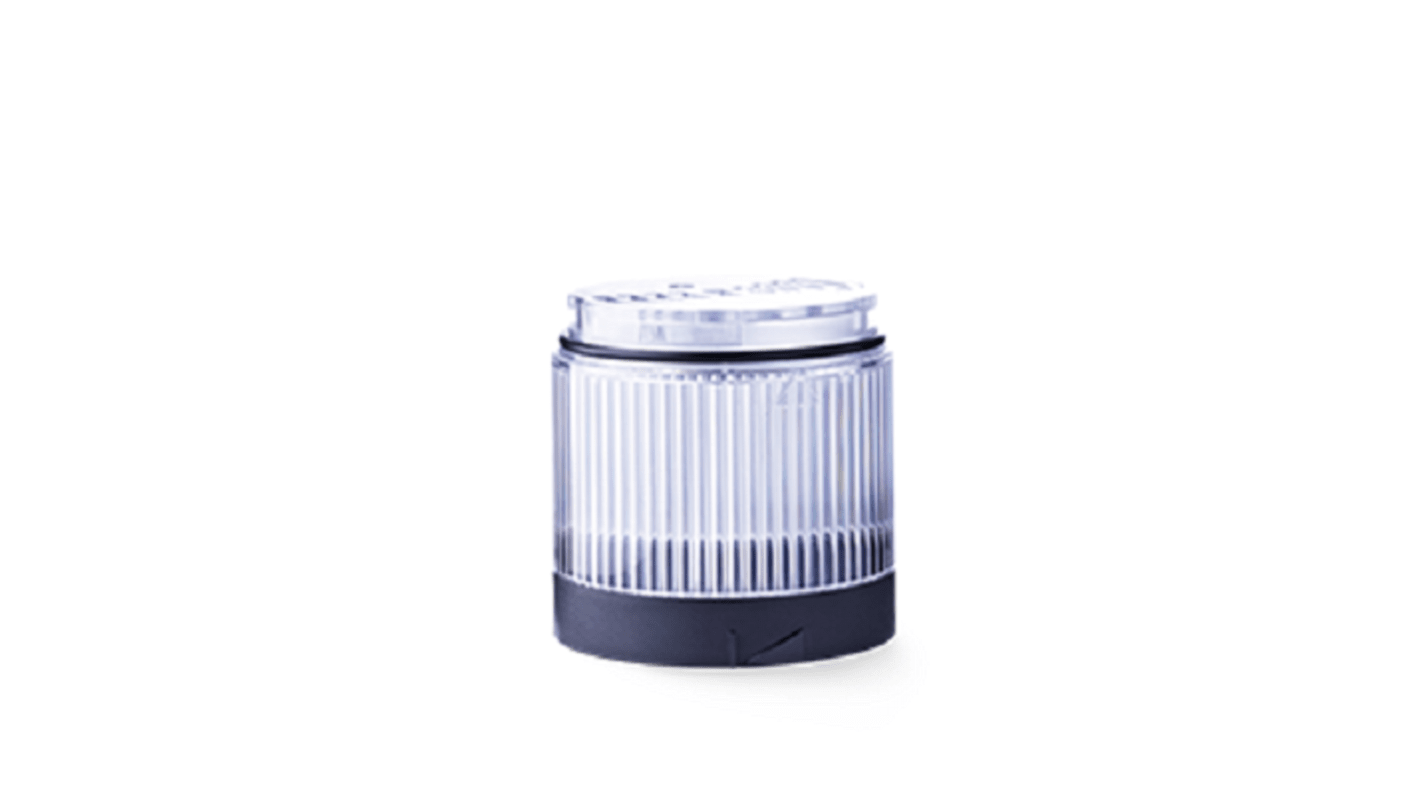

AUER Signal PC7DM Series Strobe, Multicolour, Rotating, Steady, Flashing Effect Beacon Module, LED Bulb 24V ac/dc,
- RS Stock No.:
- 247-2616
- Mfr. Part No.:
- 910040405
- Brand:
- AUER Signal
Subtotal (1 unit)*
£82.81
(exc. VAT)
£99.37
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.81 |
*price indicative
- RS Stock No.:
- 247-2616
- Mfr. Part No.:
- 910040405
- Brand:
- AUER Signal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AUER Signal | |
| Product Type | Beacon Module | |
| Series | PC7DM | |
| Minimum Sound Level | 100dB | |
| Component Type | Modular Signal Tower | |
| Multifunction | Yes | |
| Current Type | AC/DC | |
| Sounder Type | Mp3/Voice Output Module, Multitone Module | |
| Mount Type | Tube | |
| Light Effect | Strobe, Multicolour, Rotating, Steady, Flashing | |
| Lamp Included | Yes | |
| Terminal Type | M12 | |
| Bulb Type | LED | |
| Maximum Supply Voltage | 24V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 70°C | |
| Maximum Sound Level | 105dB | |
| Standards/Approvals | No | |
| IP Rating | IP66, IP67 | |
| Hazardous Area Certification | NO | |
| Base Diameter | 70mm | |
| Housing Colour | Black | |
| Select all | ||
|---|---|---|
Brand AUER Signal | ||
Product Type Beacon Module | ||
Series PC7DM | ||
Minimum Sound Level 100dB | ||
Component Type Modular Signal Tower | ||
Multifunction Yes | ||
Current Type AC/DC | ||
Sounder Type Mp3/Voice Output Module, Multitone Module | ||
Mount Type Tube | ||
Light Effect Strobe, Multicolour, Rotating, Steady, Flashing | ||
Lamp Included Yes | ||
Terminal Type M12 | ||
Bulb Type LED | ||
Maximum Supply Voltage 24V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 70°C | ||
Maximum Sound Level 105dB | ||
Standards/Approvals No | ||
IP Rating IP66, IP67 | ||
Hazardous Area Certification NO | ||
Base Diameter 70mm | ||
Housing Colour Black | ||
- COO (Country of Origin):
- AT
The AUER Signal LED steady light beacon module used for Module Perfect 70 modular signal tower. LED multi colour module is available in 7 colours are red, yellow, green, white, blue, turquoise, magenta. It has very bright, maintenance-free LED multi colour light with powerful signalling effect. Also has Binary, external switching of all 7 colours via 3 inputs.
Leakage current 3mA
Operating temperature -30 °C to +70 °C
Service life Light source LED 100, 000 hours
Available in 7 colours
