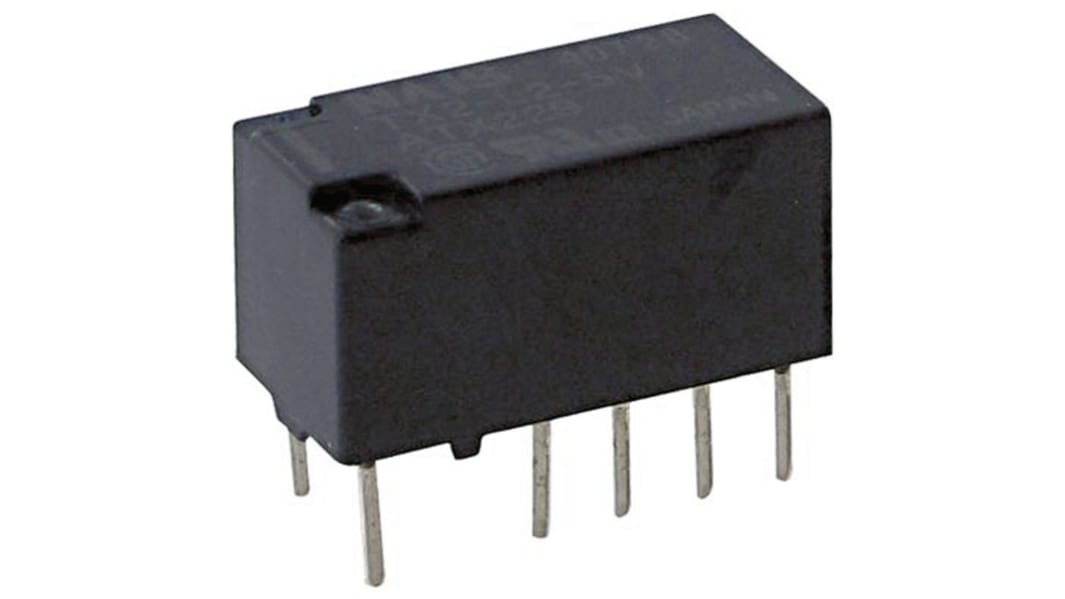

Panasonic PCB Mount Latching Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 815-4883
- Distrelec Article No.:
- 137-10-941
- Mfr. Part No.:
- TX2-L2-5V
- Brand:
- Panasonic
Subtotal (1 unit)**
£2.96
(exc. VAT)
£3.55
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit |
|---|---|
| 1 - 9 | £2.96 |
| 10 - 24 | £2.82 |
| 25 - 49 | £2.66 |
| 50 - 99 | £2.52 |
| 100 + | £2.39 |
**price indicative
- RS Stock No.:
- 815-4883
- Distrelec Article No.:
- 137-10-941
- Mfr. Part No.:
- TX2-L2-5V
- Brand:
- Panasonic
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage DC | 220V dc | |
| Maximum Switching Power DC | 60 W | |
| Latching | Yes | |
| Length | 15mm | |
| Depth | 7.4mm | |
| Height | 8.2mm | |
| Dimensions | 15 x 7.4 x 8.2mm | |
| Terminal Type | PCB Pin | |
| Application | Telecommunications | |
| Switching Current | 2A | |
| Isolation Coil To Contact | 2kV rms | |
| Operating Temperature Range | -40 → +70°C | |
| Coil Resistance | 125Ω | |
| Life | 100000000 operations | |
| Coil Power | 200mW | |
| Features | High Contact Capacity, Outstanding Surge Resistance, Outstanding Vibration and Shock Resistance | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +70°C | |
| Electrical Life | 100000 Operations | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Power DC 60 W | ||
Latching Yes | ||
Length 15mm | ||
Depth 7.4mm | ||
Height 8.2mm | ||
Dimensions 15 x 7.4 x 8.2mm | ||
Terminal Type PCB Pin | ||
Application Telecommunications | ||
Switching Current 2A | ||
Isolation Coil To Contact 2kV rms | ||
Operating Temperature Range -40 → +70°C | ||
Coil Resistance 125Ω | ||
Life 100000000 operations | ||
Coil Power 200mW | ||
Features High Contact Capacity, Outstanding Surge Resistance, Outstanding Vibration and Shock Resistance | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +70°C | ||
Electrical Life 100000 Operations | ||
