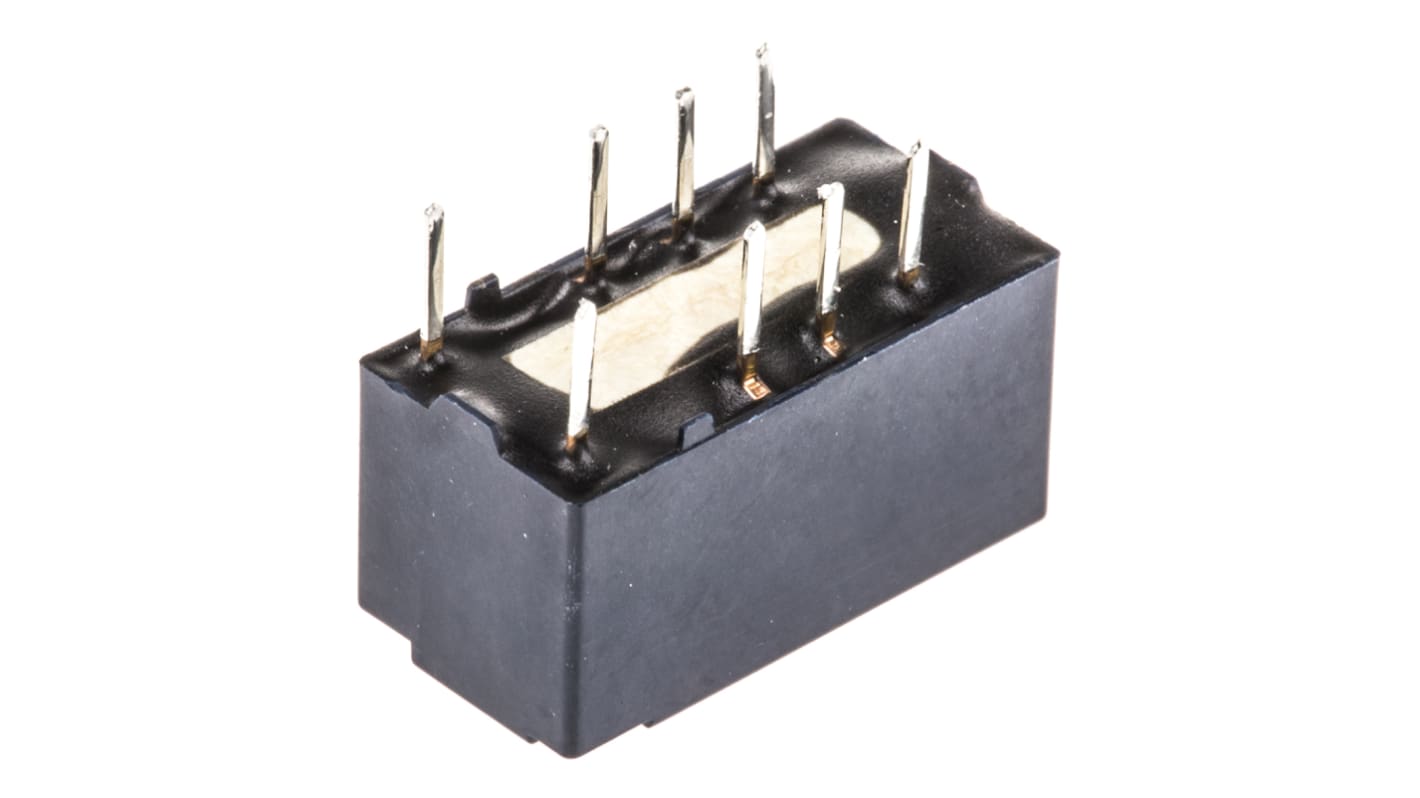

Panasonic Through Hole Signal Relay, 24V dc Coil, 2A Switching Current, DPDT

View all Signal Relays
Bulk discount available

Subtotal (1 unit)*

£4.61

(exc. VAT)

£5.53

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
  • Plus 54 unit(s) ready to ship from another location
  • Plus 4 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£4.61
25 - 49£4.12
50 - 99£3.61
100 - 249£3.09
250 +£2.61

*price indicative

RS Stock No.:
699-6395
Mfr. Part No.:
TXD2-24V
Brand:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Coil Voltage

24V dc

Contact Configuration

DPDT

Mounting Type

Through Hole

Maximum Switching Current DC

2 A

Maximum Switching Voltage DC

220V

Maximum Switching Power DC

60 W

Series

G6K

Length

15mm

Latching

No

Depth

7.4mm

Height

8.2mm

Dimensions

15 x 8.2 x 7.4mm

Terminal Type

Through Hole

Application

Automotive

Number of Poles

2

Switching Current

2A

Contact Material

Gold Plated

Features

Outstanding Surge Resistance, Sealed Construction Allows Automatic Washing,

Operating Temperature Range

-40 → +85°C

Minimum Operating Temperature

-40°C

Coil Power

230mW

Life

100000 (Electrical) cycles, 100000000 (Mechanical) cycles

Isolation Coil To Contact

750V

Maximum Operating Temperature

+85°C

Coil Resistance

1850Ω

COO (Country of Origin):
JP

TXD Series


These PCB mount relays have a 2 kV breakdown voltage between contact and coil and high contact reliability. These PCB relays also offer outstanding shock and vibration resistance and have a sealed construction that allows automatic washing. Typical applications include facsimile machines, modems, communications and medical, automotive and security equipment.

Stronger surge breakdown performance
Approved to the supplementary insulation class in the EN standards (EN60950)

Approvals

UL recognised;CSA; BSI
