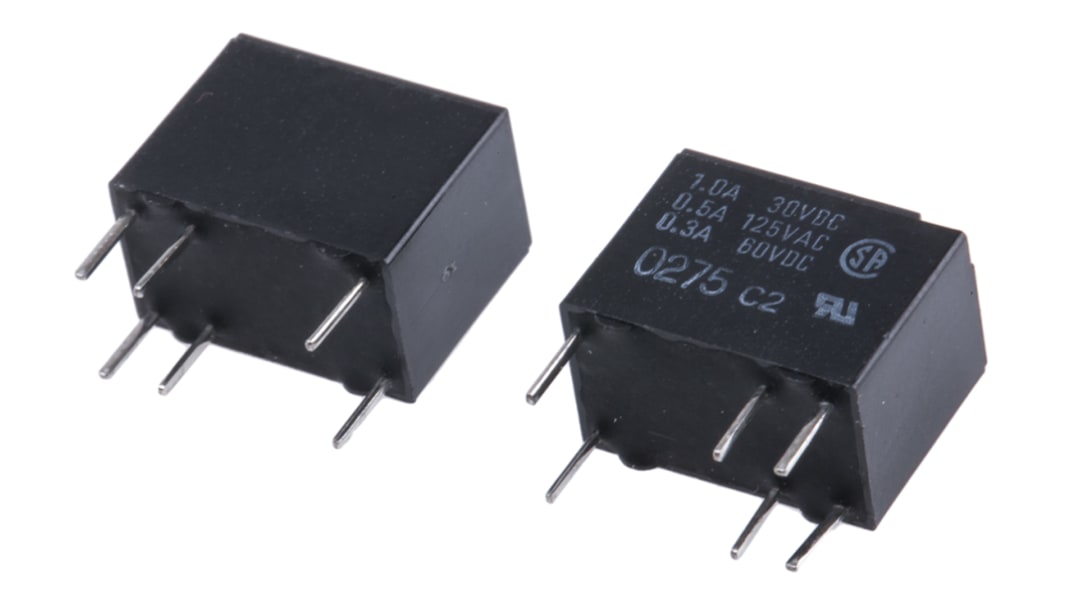

Omron PCB Mount Signal Relay, 6V dc Coil, 2A Switching Current, SPDT
- RS Stock No.:
- 683-9251
- Mfr. Part No.:
- G5V-1 6DC
- Brand:
- Omron
Subtotal (1 pack of 5 units)**
£11.42
(exc. VAT)
£13.71
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Pack** |
|---|---|---|
| 5 - 20 | £2.284 | £11.42 |
| 25 + | £2.146 | £10.73 |
**price indicative
- RS Stock No.:
- 683-9251
- Mfr. Part No.:
- G5V-1 6DC
- Brand:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 6V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 125V | |
| Maximum Switching Voltage DC | 60V | |
| Maximum Switching Power DC | 30 W | |
| Series | IM-E | |
| Length | 10mm | |
| Latching | No | |
| Depth | 7.5mm | |
| Height | 10mm | |
| Dimensions | 12.5 x 10 x 7.5mm | |
| Terminal Type | Through Hole | |
| Application | Signal | |
| Number of Poles | 2 | |
| Switching Current | 2A | |
| Electrical Life | 10^5 Operations | |
| Isolation Coil To Contact | 1.8kV rms | |
| Contact Material | Gold Plated | |
| Features | Conforms to FCC Part 68 Requirements, Single Crossbar Contacts, Fully Sealed Construction. | |
| Operating Temperature Range | -40 → +70°C | |
| Coil Resistance | 630Ω | |
| Maximum Switching Power AC | 62.5VA | |
| Life | 5000000 (Electrical) cycles | |
| Coil Power | 150mW | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 6V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 125V | ||
Maximum Switching Voltage DC 60V | ||
Maximum Switching Power DC 30 W | ||
Series IM-E | ||
Length 10mm | ||
Latching No | ||
Depth 7.5mm | ||
Height 10mm | ||
Dimensions 12.5 x 10 x 7.5mm | ||
Terminal Type Through Hole | ||
Application Signal | ||
Number of Poles 2 | ||
Switching Current 2A | ||
Electrical Life 10^5 Operations | ||
Isolation Coil To Contact 1.8kV rms | ||
Contact Material Gold Plated | ||
Features Conforms to FCC Part 68 Requirements, Single Crossbar Contacts, Fully Sealed Construction. | ||
Operating Temperature Range -40 → +70°C | ||
Coil Resistance 630Ω | ||
Maximum Switching Power AC 62.5VA | ||
Life 5000000 (Electrical) cycles | ||
Coil Power 150mW | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -40°C | ||
