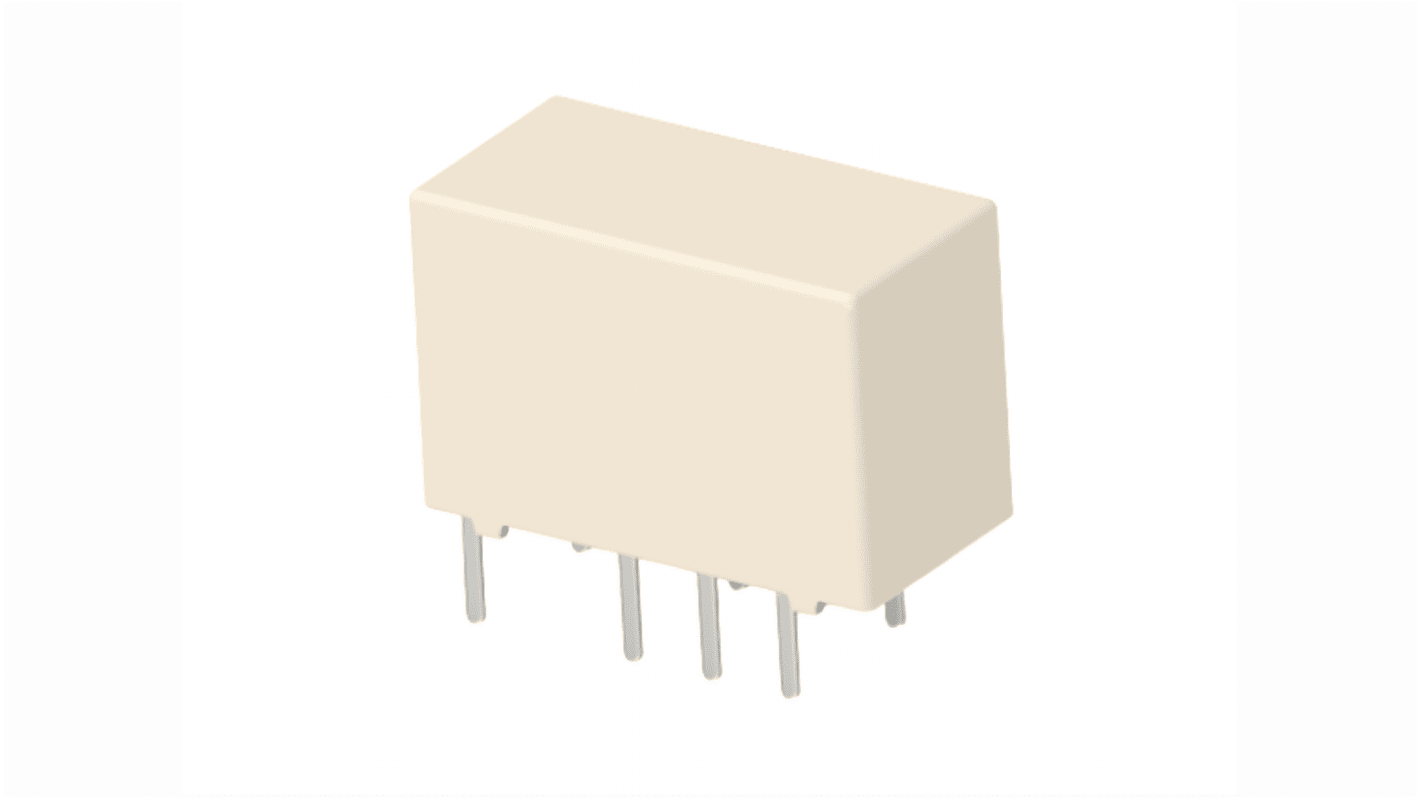

TE Connectivity PCB Mount Signal Relay, 24V ac Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 276-3892
- Mfr. Part No.:
- V23079A1006B301 2-1393788-0
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£3.39
(exc. VAT)
£4.07
(inc. VAT)
FREE delivery for orders over £50.00
- 840 unit(s) ready to ship
- Plus 999,999,159 unit(s) shipping from 21 January 2026
Units | Per unit |
---|---|
1 - 9 | £3.39 |
10 - 24 | £3.24 |
25 + | £3.08 |
*price indicative
- RS Stock No.:
- 276-3892
- Mfr. Part No.:
- V23079A1006B301 2-1393788-0
- Brand:
- TE Connectivity
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 24V ac | |
Contact Configuration | DPDT | |
Mounting Type | PCB Mount | |
Number of Coils | Single | |
Maximum Switching Current DC | 2 A | |
Maximum Switching Voltage AC | 250V ac | |
Maximum Switching Voltage DC | 220V dc | |
Series | Axicom P2 Signal Relay | |
Length | 14.5mm | |
Latching | No | |
Depth | 7.2mm | |
Height | 9.8mm | |
Dimensions | 14.5 x 7.2 9.8mm | |
Terminal Type | Through Hole | |
Number of Poles | 2 | |
Switching Current | 2A | |
Operating Temperature Range | -40 → 85°C | |
Coil Resistance | 578 Ω | |
Contact Material | AgNi+AU | |
Maximum Operating Temperature | +85°C | |
Features | Bifurcated/Twin Contacts | |
Coil Power | 602mW | |
Minimum Operating Temperature | -40°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 24V ac | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Number of Coils Single | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Series Axicom P2 Signal Relay | ||
Length 14.5mm | ||
Latching No | ||
Depth 7.2mm | ||
Height 9.8mm | ||
Dimensions 14.5 x 7.2 9.8mm | ||
Terminal Type Through Hole | ||
Number of Poles 2 | ||
Switching Current 2A | ||
Operating Temperature Range -40 → 85°C | ||
Coil Resistance 578 Ω | ||
Contact Material AgNi+AU | ||
Maximum Operating Temperature +85°C | ||
Features Bifurcated/Twin Contacts | ||
Coil Power 602mW | ||
Minimum Operating Temperature -40°C | ||
