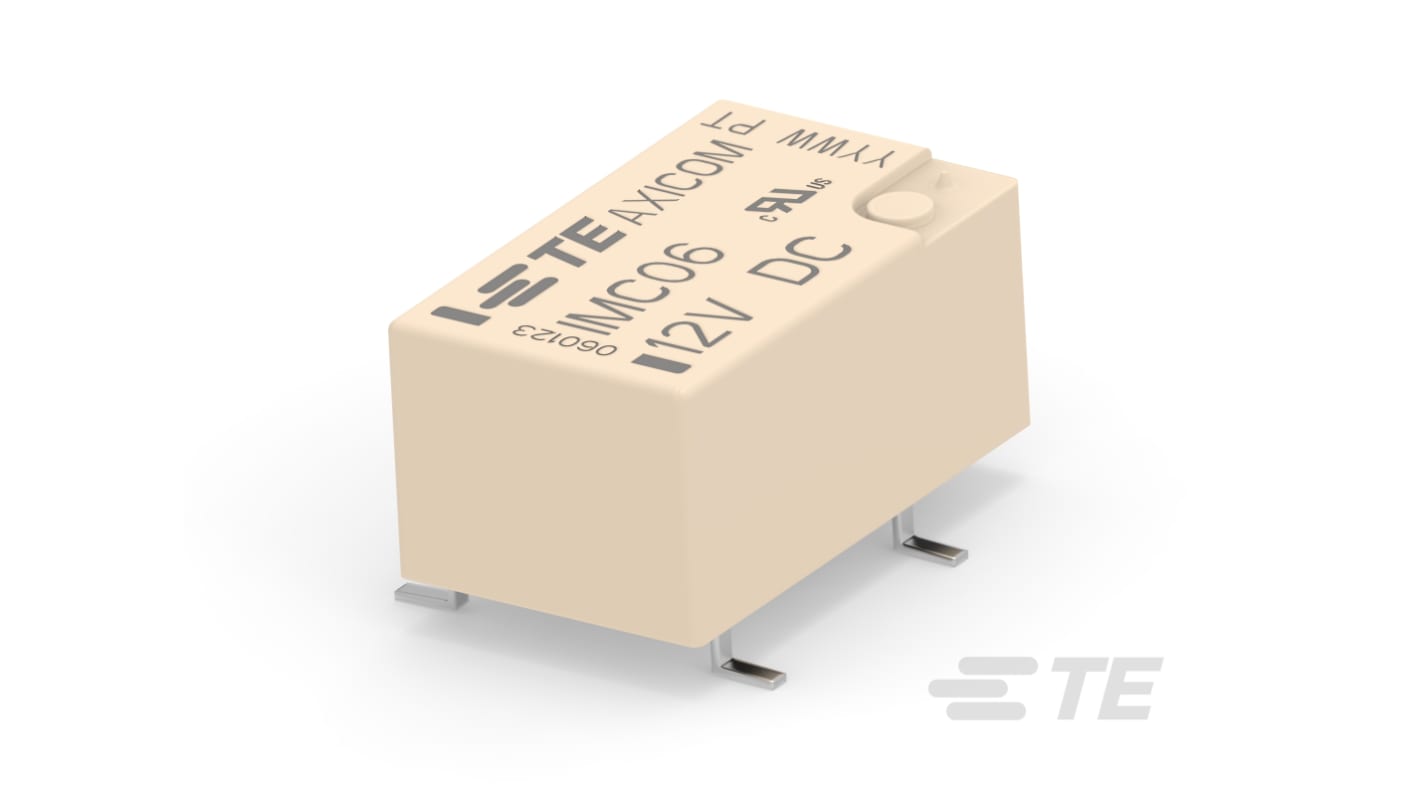

TE Connectivity Surface Mount Signal Relay, 12V dc Coil, SPDT
- RS Stock No.:
- 267-8088
- Mfr. Part No.:
- 1462042-3
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tape of 2 units)*
£9.74
(exc. VAT)
£11.68
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 298 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
---|---|---|
2 - 98 | £4.87 | £9.74 |
100 - 248 | £4.565 | £9.13 |
250 - 498 | £4.18 | £8.36 |
500 + | £3.655 | £7.31 |
*price indicative
- RS Stock No.:
- 267-8088
- Mfr. Part No.:
- 1462042-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 12V dc | |
Contact Configuration | SPDT | |
Mounting Type | Surface Mount | |
Number of Coils | Single | |
Maximum Switching Current AC | 1 mA | |
Series | Axicom IM | |
Length | 10mm | |
Latching | No | |
Height | 5.65mm | |
Dimensions | 10 x 6 x 5.65mm | |
Number of Poles | 1 | |
Maximum Operating Temperature | +85°C | |
Relay Switching Classification | PCB Power Relay | |
Operating Temperature Range | -30 → +85°C | |
Minimum Operating Temperature | -40°C | |
Coil Resistance | 1.029 kΩ | |
Coil Power | 140mW | |
Contact Material | Gold Plated | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type Surface Mount | ||
Number of Coils Single | ||
Maximum Switching Current AC 1 mA | ||
Series Axicom IM | ||
Length 10mm | ||
Latching No | ||
Height 5.65mm | ||
Dimensions 10 x 6 x 5.65mm | ||
Number of Poles 1 | ||
Maximum Operating Temperature +85°C | ||
Relay Switching Classification PCB Power Relay | ||
Operating Temperature Range -30 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Coil Resistance 1.029 kΩ | ||
Coil Power 140mW | ||
Contact Material Gold Plated | ||
- COO (Country of Origin):
- AT
TE Connectivity PCB Mount Signal Relay - IM Series
IM series slimline PCB mount signal relays with a low profile of 5.65mm that occupy a minimum board space of 60mm². These slimline IM series PCB mount signal relays have a low coil power consumption of 140mW for standard coil, 100mW for bistable and 50mW for the ultra high sensitive versions, along with a high dielectric surge capability and 300g mechanical shock resistance.
Features and Benefits:
• Slimline and low profile - 10x6x5.65 mm
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts
• Bifurcated contacts, gold plated
• Hermetically sealed (RT V), IP67
• High mechanical shock resistance up to 300G functional, 500G survival
• Insulation resistance at 500V dc >10⁹Ω
• High surge capability (1.2/50 μs and 10 / 700 μs) meets Telcordia GR 1089, FCC Part 68 and ITU-T K20,21,45.
• 1500V between open contacts and 2500V between coil and contacts
Applications:
• Telecommunication equipment
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications
• Optical network terminals
• Office equipment
• Test and measurement equipment
• Medical equipment
• Automotive applications
Approvals
UL
The TE Connectivity signal relays has gold contact plating with 4 A contact limiting making current and 4 A contact limiting breaking current.
Monostable coil
